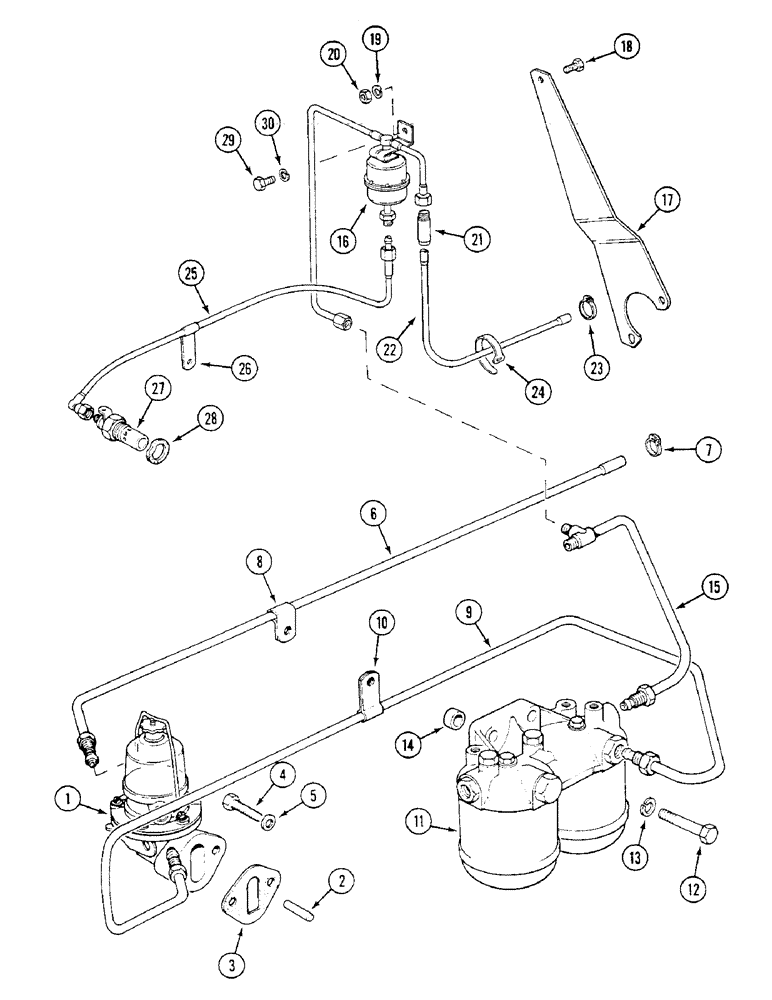

Запчасти Case IH 1294 (3-28) - FUEL FEED PUMP, FILTERS AND TUBES (03) - FUEL SYSTEM
№
Артикул
Название
Примечание
Количество
1
K311939
FEED PUMP
PUMP ASSEMBLY - fuel, See Figure 3-30
1шт.
2
K911928
PUSH ROD,9.51mm OD x 35.99mm L
- push, fuel pump
1шт.
3
K902136
GASKET
- pump mounting
1шт.
4
413-520
BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5
- hex, 5/16 NC x 1-1/4 inch
2шт.
5
K626653
WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk
- sealing, 5/16 inch (8 mm)
2шт.
6
K203677
FUEL TUBE,0.312" OD x 43, 2" L
TUBE - fuel, tank to fuel pump
1шт.
6
K203667
PIPE,0.312" OD x 20, 2" L
TUBE - fuel
1шт.
7
K656901
CLIP
CLAMP - breather tube
1шт.
8
K628362
CLIP
- clutch housing bolt
1шт.
9
K944999
FUEL TUBE,0.25" OD x 14.531, 6.562" L
TUBE - fuel, pump to filter
1шт.
10
K621603
CLIP
- tube to manifold stud
1шт.
11
K906708
FILTER
ASSEMBLY - fuel, See Figure 3-30
1шт.
12
K600406
BOLT
- special, 3/8 UNC x 1-3/4 inch
2шт.
13
492-11038
LOCK WASHER,3/8"
2шт.
14
A76093
BUSHING
FILTER -
2шт.
15
K204246
FUEL TUBE,0.25" OD
TUBE - fuel, filter to leak-off
1шт.
16
K205395
TANK
RESERVOIR ASSEMBLY - fuel, with tube, (With cab)
1шт.
16
K205391
RESERVOIR
ASSEMBLY - fuel with tube, (Without cab)
1шт.
17
K307876
BRACKET
- reservoir support
1шт.
18
K612802
SCREW
BOLT - 5/16 UNF x 5/8 inch
1шт.
19
K19481
SPRING WASHER
WASHER - lock, 5/16 inch
1шт.
20
K617001
NUT
- 5/16 inch UNF
1шт.
21
K306934
FITTING
RESTRICTOR - fuel return, (With cab)
1шт.
22
K207549
PIPE,0.395" OD x 40" L
TUBE - fuel return
1шт.
23
L100659
CLIP
-
1шт.
24
702093C1
CABLE TIE
STRAP - tie
2шт.
25
K207569
LINE,0.187" OD x 16" L
TUBE - fuel, reservoir to thermostat, (With cab)
1шт.
25
K205367
HOSE,0.187" OD x 33.5" L
TUBE - fuel, reservoir to thermostat, (Without cab)
1шт.
26
K621610
CLIP
- manifold
1шт.
27
K928523
GLOW PLUG
THERMOSTART - fuel, (CAV 1854102)
1шт.
28
K626957
WASHER
- sealing 7/8 inch (22 mm)
1шт.
29
K650639
SCREW
BOLT - M8 x 12, (Without cab)
1шт.
30
592-6
WASHER
- lock, M8 (Without cab)
1шт.
Выбрано товаров: 33
