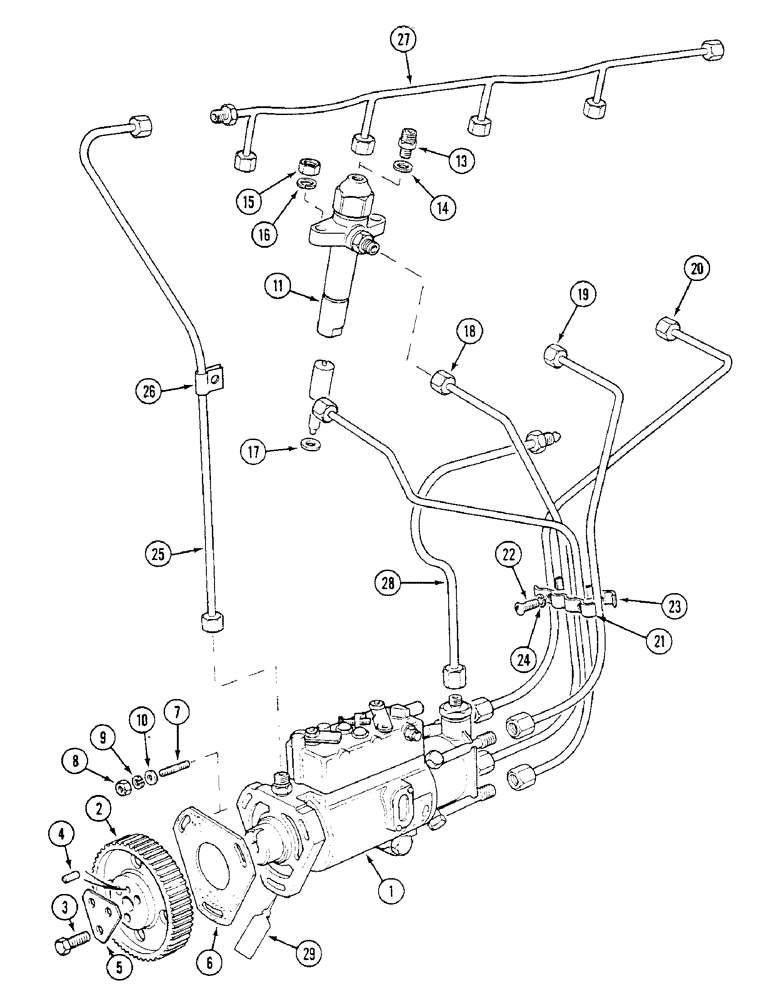

Запчасти Case IH 1294 (3-24) - INJECTION PUMP, INJECTORS AND TUBES (03) - FUEL SYSTEM

1

K957319

PUMP, FUEL INJECTION

INJECTION PUMP - fuel

1шт.

2

K949822

GEAR

- pump drive, 68 teeth

1шт.

3

K612804

SCREW

BOLT - set, 5/8 UNF x 7/8 inch

3шт.

4

K25360

PIN

1шт.

5

K914503

LARGE PLATE

WASHER - tab, gear

1шт.

6

K68349

GASKET

- pump mounting

1шт.

6

K311313

GASKET

- pump to carrier plate

1шт.

7

K608163

STUD

- 5/16 UNC x 1-1/4 inch

3шт.

8

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

3шт.

9

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

10

K626682

WASHER

- lever pin, 5/16 inch (8 mm)

3шт.

11

K942175

NOZZLE CAP

INJECTOR - cap and holder, Includes: Ref. 12, holder and nozzle

4шт.

NSS

NOT SOLD SEPARAT

HOLDER

1шт.

K942176

NOZZLE CAP

NOZZLE - injector

1шт.

12

F62390

WASHER,10mm ID x 21.01mm OD x 2.08mm Thk

1шт.

13

K620460

ADAPTER

- M8 - 1/8 inch BSP, injector leak-off

4шт.

14

K36374

WASHER

- copper, 8 mm

4шт.

15

9635082

NUT,5/16" - 18, Gr 5

- 5/16 inch UNC

8шт.

16

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

8шт.

17

K918915

PIPE

TUBE - fuel, injection pump to No. 1 cylinder

1шт.

18

K207322

PIPE

TUBE - fuel, injection pump to No. 2 cylinder

1шт.

19

K954828

PIPE,18.281" L

TUBE - fuel, injection pump to No. 3 cylinder

1шт.

20

K954829

PIPE,20.75" L

TUBE - fuel, injection pump to No. 4 cylinder

1шт.

21

K900844

CLAMP

CLIP - injector tubes

1шт.

22

K652474

BOLT

- M6 x 12 mm

2шт.

23

K207929

CLIP

- injector tubes

1шт.

24

K19488

SPRING WASHER

- lock, 3/16 inch

2шт.

25

K203135

PIPE,0.187" OD

TUBE - leak-off, injector pump

1шт.

26

K621610

CLIP

- manifold

1шт.

27

K204248

PIPE,0.187" OD

TUBE - leak-off, injectors

1шт.

28

K918923

PIPE

TUBE - fuel, filter to injection pump

1шт.

29

REF

INSTRUCTION

SILMATE RTV - gasket replacement (See your authorized Case dealer)

1шт.
