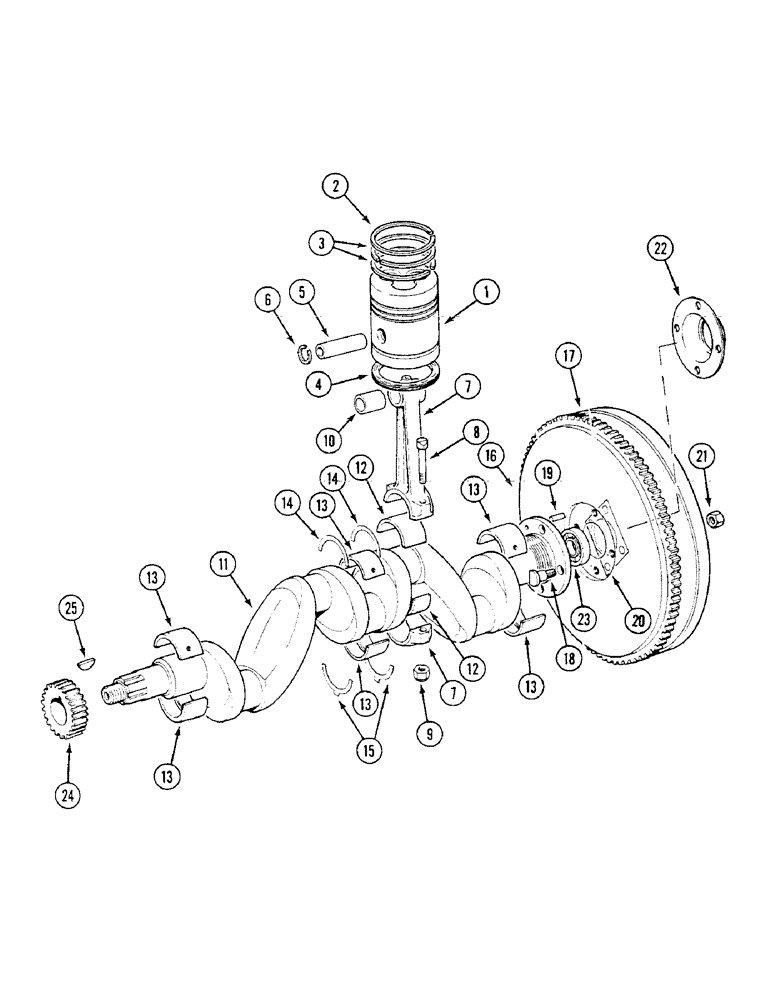

Запчасти Case IH 1294 (2-20) - PISTONS, CRANKSHAFT AND FLYWHEEL (02) - ENGINE

1

K949474

PISTON & RINGS KIT

PISTON ASSEMBLY - standard (Casting # BLQU5832050), Includes: Ref. 2 - 6

4шт.

2

K943881

RING, PISTON

RING - piston, No. 1 compression

1шт.

3

K943882

RING, PISTON

RING - piston, No. 2 and 3 compression

2шт.

4

K206956

RING, PISTON

RING - piston, scraper

1шт.

5

K904370

PIN

- piston

1шт.

6

K34501

RING, SNAP

RING - snap, 1-1/4 inch (32 mm) internal

2шт.

1

K949722

PISTON

ASSEMBLY - 0.020 inch (0.51 mm) oversize (Replaces K949719), Includes: Ref. 2 - 4

4шт.

2

K943885

RING, PISTON

RING - piston, No.1 compression

1шт.

3

K943886

RING, PISTON

RING - piston, No. 2 and 3 compression

2шт.

4

K206961

RING, PISTON

RING - piston, scraper

1шт.

K261069

SET OF RINGS

RING KIT - oil control, standard

4шт.

K261070

PISTON RING SET

RING KIT - oil control

4шт.

7

K80043

ROD, CONNECTING

ROD ASSEMBLY - connecting, Includes: Ref. 8 - 10

4шт.

8

K207581

STEP BOLT

- connecting rod, 7/16 inch BSF

2шт.

9

K623151

LOCK NUT

- self locking, 7/16 inch BSF

2шт.

10

K31669

BEARING

BUSHING - small end

1шт.

11

K210100

CRANKSHAFT

-

1шт.

11

K210100R

REMAN-CRANKSHAFT

1294 CASE DIESEL TRACTOR (1/83-12/85) Comes with main, thrust & connecting rod bearings

1шт.

11

K210100C

CORE-CRANKSHAFT

Return Number

1шт.

12

K207436

HALF-BEARING, CRANKS

BEARING - large, halves (Standard)

8шт.

13

K928541

HALF-BEARING, CRANKS

BEARING - main, halves (Standard)

6шт.

14

K928542

SET

WASHER - thrust, upper (Standard)

2шт.

15

K928543

SET

WASHER - thrust, lower (Standard)

2шт.

12

K207497

HALF-BEARING, CRANKS

BEARING - large, halves, 0.010 inch (0.25 mm) undersize

8шт.

13

K928554

BEARING SET

BEARING - main, halves, 0.010 inch (0.25 mm) undersize

6шт.

12

K207498

HALF-BEARING, CRANKS

BEARING - large, halves, 0.020 inch (0.51 mm) undersize

8шт.

13

K928555

BEARING SET

BEARING - main, halves, 0.020 inch (0.51 mm) undersize

6шт.

14

K928560

THRUST WASHER

WASHER - thrust, upper, 0.005 inch (0.13 mm) oversize

2шт.

15

K928561

WASHER

- thrust, lower, 0.005 inch (0.13 mm) oversize

2шт.

14

K928562

WASHER, THRUST

WASHER - thrust, upper, 0.020 inch (0.51 mm) oversize

2шт.

15

K928563

RING

WASHER - thrust, lower, 0.020 inch (0.51 mm) oversize

2шт.

16

K207564

FLYWHEEL

ASSEMBLY - Borg and Beck independent clutch, Includes: Ref. 17

1шт.

16

K947029

FLYWHEEL

ASSEMBLY - Laycook independent clutch, Includes: Ref. 17

1шт.

16

K207562

FLYWHEEL

ASSEMBLY - continuous clutch, Includes: Ref. 17

1шт.

17

K946819

GEAR

RING - starter

1шт.

18

K903431

STEP BOLT

- special, 7/16 inch UNF special

4шт.

19

K10629

PIN

DOWEL - 1/2 x 15/16 inch

1шт.

20

K901883

PIPE

WASHER - tab

1шт.

21

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

4шт.

22

K912323

HOUSING

DISC - clutch plate, independent clutch

1шт.

22

K903255

DISC

- clutch plate, continuous clutch

1шт.

23

K19167

BALL BEARING,22.23mm ID x 50.8mm OD x 14.29mm W

BEARING - ball

1шт.

24

K945094

GEAR

- crankshaft, 34 teeth

1шт.

25

K19608

KEY

- Woodruff, No., 606

1шт.
