Запчасти Case IH 1294 (9-370) - TOOLS AND TOOL BOX (09) - CHASSIS/ATTACHMENTS

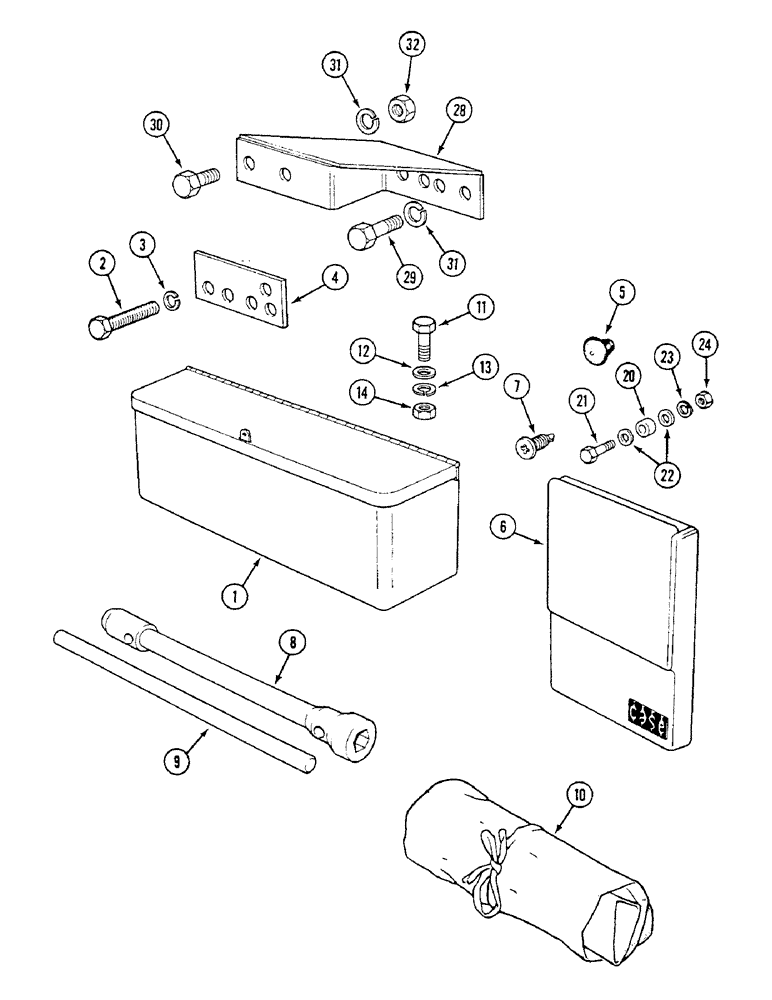

Схема запчастей Case IH 1294 - (9-370) - TOOLS AND TOOL BOX (09) - CHASSIS/ATTACHMENTS
6
10
21
22
7
1
31
29
9
28
4
32
24
12
23
14
3
20
5
30
2
13
11
31
8

Артикул

Название

Примечание

Количество

1

1536072C1

BOX, TOOL

BOX - tool, tractor

1шт.

2

K603272

SCREW

BOLT - 5/8 UNC x 1-7/8 inch

2шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

4

K946776

PLATE

- clamping, tool box

1шт.

5

K628010

PLUG

- plastic, 10 mm

4шт.

6

K954320

BOX

- operators manual

1шт.

7

A162364

FASTENER

- operators manual box

2шт.

8

K946622

KEY

WRENCH - 1 inch - 1-5/16 A/F

1шт.

8

K206972

TOOL

WRENCH - 22 mm - 1-5/16 A/F

1шт.

9

K948095

CLEVIS PIN

BAR - tool

1шт.

10

UK5118

TOOL

KIT - tractor, Includes: wrenches, pliers, screw drivers, bars, peg, and container

1шт.

K302450

TOOL

WRENCH - 10 x 13 mm A/F

1шт.

K302451

TOOL

WRENCH - 13 x 15 mm A/F

1шт.

K627608

TOOL

WRENCH - 5/16 x 7/16 inch A/F

1шт.

K627604

TOOL

WRENCH - 1/2 x 9/16 inch A/F

1шт.

K627603

TOOL

WRENCH - 5/8 x 3/4 inch A/F

1шт.

K302452

BOX

WRENCH - box, 10 x 11 mm A/F

1шт.

K302453

BOX

WRENCH - box, 12 x 13 mm A/F

1шт.

K627610

TOOL

WRENCH - box, 1/2 x 9/16 inch A/F

1шт.

K204305

RING

WRENCH - ring, 3/4 x 15/16 inch A/F

1шт.

K204306

RING

WRENCH - ring, 1-1/8 x 1-5/16 inch A/F

1шт.

K204307

SPECIAL WRENCH

WRENCH - adjustable, 12 inch

1шт.

K305506

KEY

WRENCH - Allen, 5 mm

1шт.

K207185

OPEN END WRENCH

WRENCH - 1/2 inch square

1шт.

K922743

TOOL

PLIERS - 6 inch

1шт.

K922744

SCREW

DRIVER - 5-1/2 inch

1шт.

K302456

TOOL

SCREW DRIVER - Phillips No. 3

1шт.

K19806

BAR

- 5/16 x 6 inch

1шт.

K204308

BAR

- 1/4 x 3 inch

1шт.

K906963

SCREW

PEG - engine timing

1шт.

K302454

TOOL

CONTAINER - plastic, plastic

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

12

K19472

WASHER

- flat, 3/8 inch (10 mm)

2шт.

13

492-11038

LOCK WASHER,3/8"

2шт.

14

425-106

NUT,3/8"-16, Cl 5

2шт.

20

K655719

BUSHING

SPACER - manual, Serial Range: box-fender

3шт.

21

K651232

BOLT

- M6 x 40 mm

3шт.

22

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

23

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

3шт.

24

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M12

3шт.

28

K310252

BRACKET

- tool box

1шт.

29

K603280

SCREW

BOLT - 5/8 UNC x 2-1/4 inch

2шт.

30

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

2шт.

31

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

32

425-1010

NUT,5/8"-11, G5

2шт.

Выбрано товаров: 45
