Запчасти Case IH 1294 (9-366) - AIR CONDITIONER EVAPORATOR, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

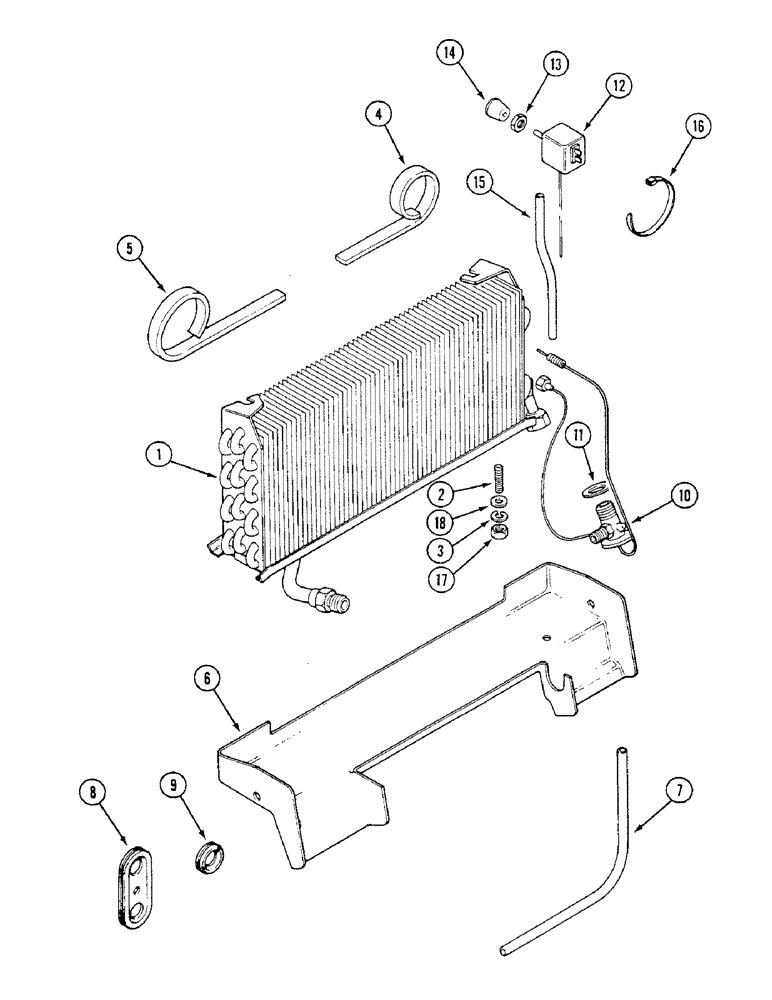

Схема запчастей Case IH 1294 - (9-366) - AIR CONDITIONER EVAPORATOR, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
13
10
6
14
2
15
17
4
3
1
12
8
16
11
9
5
18
7

Артикул

Название

Примечание

Количество

1

K308478

RADIATOR

EVAPORATOR - air conditioning

1шт.

2

K655093

STUD

- M8 x 32 mm

1шт.

3

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

4

K777030

FOAM

STRIP - 8 x 15 mm

1шт.

5

A42902X

SEALING STRIP

TAPE - press on, 2-1/2 inch (64 mm) wide, 30 foot (9 M) long

1шт.

6

K307261

TRAY

- drip

1шт.

7

K304338

HOSE

TUBE - drain, 8 x 600 mm

2шт.

8

K308480

GROMMET

- bulkhead

1шт.

9

K627776

RUBBER

GROMMET - bulkhead, 1-1/4 x 5/8 inch

1шт.

10

66398C1

VALVE

- expansion

1шт.

11

222-994

GASKET,1/2 Tube, Fl, Copper

WASHER - copper, valve to evaporator

1шт.

12

A176304

SWITCH

- control

1шт.

13

A42561

JAM NUT,Hex, 7/16" - 28, RH Thd

- switch

1шт.

14

A42578

KNOB

- switch

1шт.

15

K207913

TUBE

- insulating, switch capillary tube

1шт.

16

K621734

CABLE

CLIP - cable

1шт.

17

825-1408

NUT,M8, Cl 8

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

Выбрано товаров: 18
