Запчасти Case IH 1294 (9-364) - AIR CONDITIONER COMPRESSOR, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

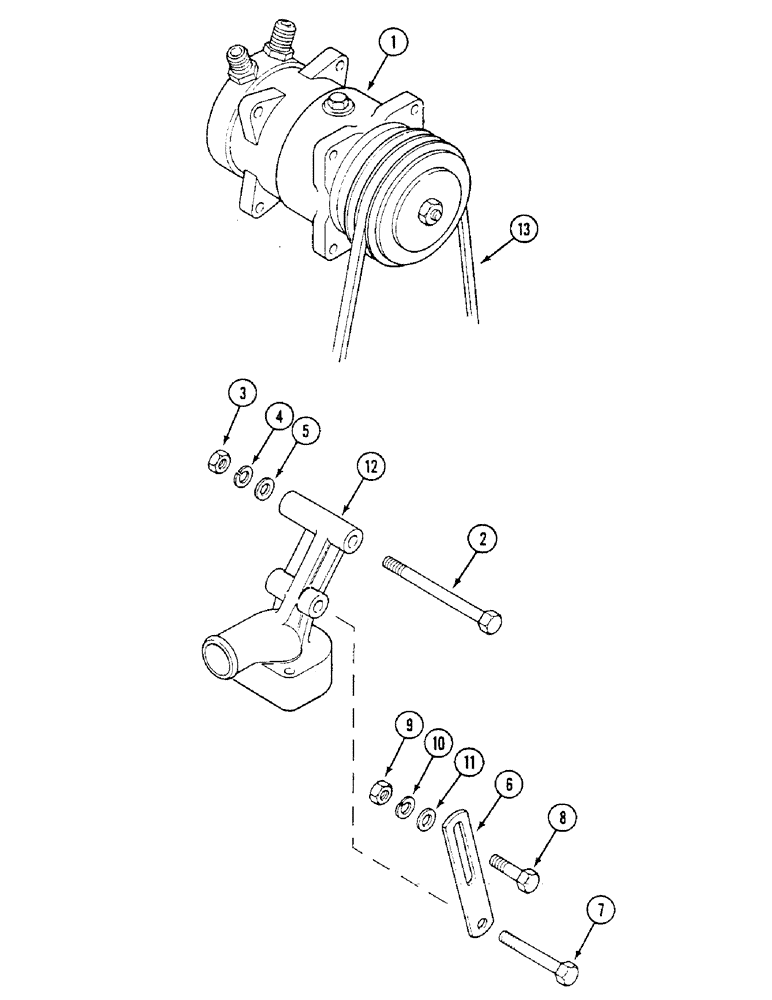

Схема запчастей Case IH 1294 - (9-364) - AIR CONDITIONER COMPRESSOR, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
3
7
11
8
10
6
13
2
5
4
12
1
9

Артикул

Название

Примечание

Количество

1

K307237

COMPRESSOR

ASSEMBLY - Sanden SD-510-HD

1шт.

60-2921T94R

REMAN-A/C COMPRESSOR

1294 CASE DIESEL TRACTOR (1/83-12/85), Reman for New P/N K307237

1шт.

60-2921T94C

CORE-A/C COMPRESSOR

Return Number

1шт.

2

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.

3

425-106

NUT,3/8"-16, Cl 5

1шт.

4

492-11038

LOCK WASHER,3/8"

1шт.

5

K19472

WASHER

- flat, 3/8 inch (10 mm)

2шт.

6

K207316

STRAP

- adjuster

1шт.

7

413-648

BOLT,Hex, 3/8" - 16 x 3", Gr 5

1шт.

8

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

1шт.

9

425-106

NUT,3/8"-16, Cl 5

2шт.

10

492-11038

LOCK WASHER,3/8"

2шт.

11

K19472

WASHER

- flat, 3/8 inch (10 mm)

2шт.

12

K207315

PIPE

TUBE - water outlet

1шт.

13

K307429

V-BELT,13.00 mm W x 1000.00 mm L

V-BELT , Compressor drive 13.00 mm W x 1000.00 mm L

1шт.

Выбрано товаров: 15
