Запчасти Case IH 1294 (9-360) - HEATER CONTROLS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

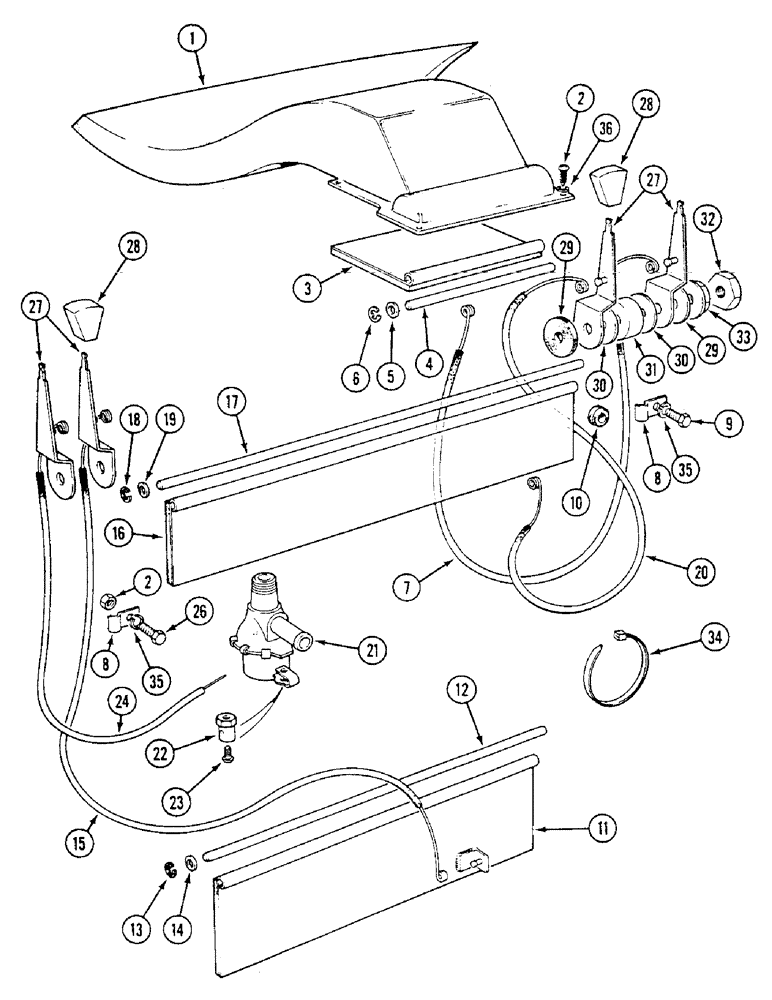

Схема запчастей Case IH 1294 - (9-360) - HEATER CONTROLS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
12
17
18
2
10
13
36
26
27
20
29
28
9
7
27
28
22
21
15
30
23
16
8
14
19
35
5
6
2
1
32
33
29
30
34
3
24
4
8
11
35
31

Артикул

Название

Примечание

Количество

1

K303556

BRACKET

NOZZLE - defroster

1шт.

2

K626212

SCREW

- self-tapping, no. 7 x 1/2 inch

4шт.

3

K303189

SHUTTER

- defroster nozzle

1шт.

4

K303548

SHAFT

SPINDLE - 6 x 129 mm

1шт.

5

K303580

WASHER

SPACER - spindle

2шт.

6

K657860

RING, SNAP

RING - snap, 6 mm, external

2шт.

7

K311794

CABLE

ASSEMBLY - control, 1 135/1 070 mm (Replaces K303576)

1шт.

8

K303732

CABLE

CLIP - cable

6шт.

9

K652743

SCREW,M5 x 12mm

- M5 x 12 mm

4шт.

10

K627700

GROMMET

- 6 x 10 x 1.5 mm

1шт.

11

K303167

SHUTTER

- recirculating vent

1шт.

12

K303549

SHAFT

SPINDLE - 6 x 339 mm

1шт.

13

K657860

RING, SNAP

RING - snap, 6 mm, external

2шт.

14

K303580

WASHER

SPACER - spindle

2шт.

15

K311796

CABLE

ASSEMBLY - control, 945/880 mm (Replaces K303579)

1шт.

16

K303177

SHUTTER

- interior vent

1шт.

17

K303551

SHAFT

SPINDLE - 6 x 393 mm

1шт.

18

K657860

RING, SNAP

RING - snap, 6 mm external

2шт.

19

K303580

WASHER

SPACER - spindle

2шт.

20

K311795

CABLE

ASSEMBLY - control, 825/745 mm (Replaces K303578)

1шт.

21

K205318

VALVE

- heater control

1шт.

22

K952104

TRUNNION

- No. 8 UNC

1шт.

23

70-1086

SCREW,Slotted Pan Hd, #8-32 x 3/8"

- No. 8 UNC x 3/8 inch

1шт.

24

K311797

CABLE

- control (Replaces K304229)

1шт.

25

825-1405

NUT,M5, Cl 8

2шт.

26

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

2шт.

27

K310371

HANDLE

LEVER - hand

4шт.

28

K303754

KNOB

- hand lever

4шт.

29

K310364

WASHER

- 10 x 30 x 4 mm

4шт.

30

K310365

WASHER

- plastic, 10 x 30 x 2 mm

4шт.

31

K310367

BUSHING

SPACER - 30 x 14.5 mm

2шт.

32

K651554

NUT

- M10 thin

2шт.

33

K310366

NUT

- special, M10

2шт.

34

K621734

CABLE

CLIP - cable

1шт.

35

K651846

WASHER, LOCK

WASHER - lock M5

6шт.

36

K651775

WASHER

- plain, M5

4шт.

Выбрано товаров: 36
