Запчасти Case IH 1294 (9-356) - CAB AIR FILTER AND HEATER FAN (09) - CHASSIS/ATTACHMENTS

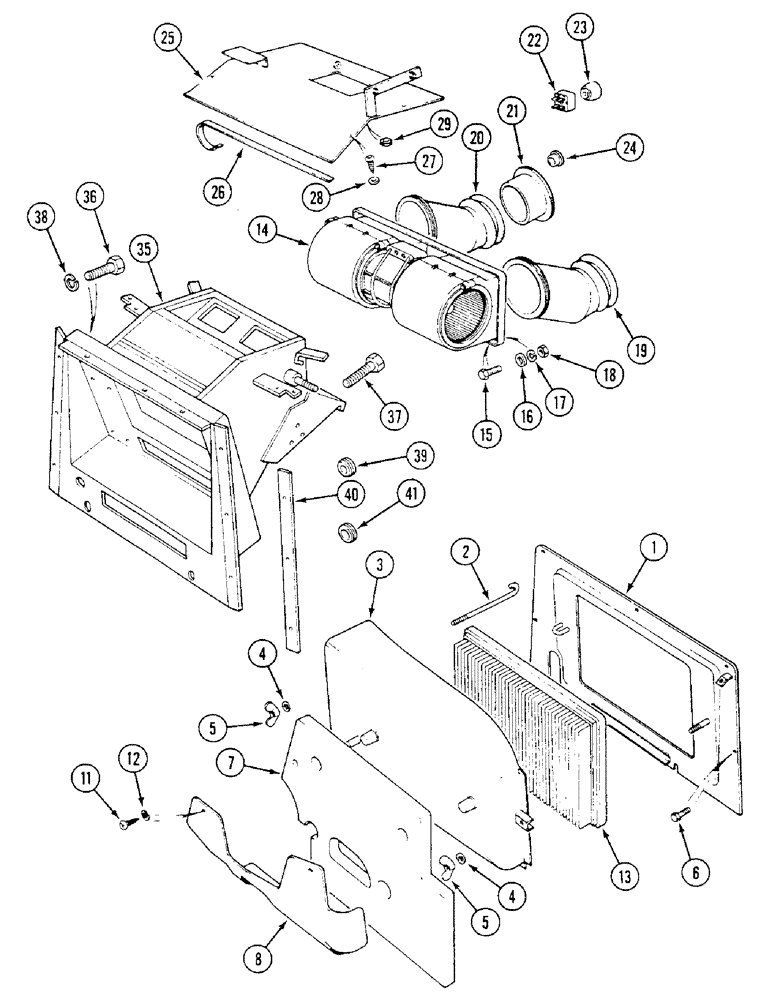

Схема запчастей Case IH 1294 - (9-356) - CAB AIR FILTER AND HEATER FAN (09) - CHASSIS/ATTACHMENTS
17
26
6
36
29
4
20
28
27
1
21
40
11
14
8
7
3
13
4
15
37
22
24
19
5
2
12
35
5
41
18
38
39
25
16
23

Артикул

Название

Примечание

Количество

1

K307424

GUARD

PLATE - support, filter

1шт.

2

K307547

BOLT

CLAMP - filter

1шт.

3

K307502

BOX

- filter

1шт.

4

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

5

E44806

NUT

- wing, M6

2шт.

6

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 12 mm

5шт.

6

K653344

SCREW

- M6 x 16 mm

2шт.

7

K307867

FOAM

SEAL -

1шт.

8

K307859

RETAINER

PLATE - seal retaining

1шт.

11

K656110

SCREW

- self-tapping

4шт.

12

K626310

WASHER

- lock 3/16 inch

4шт.

13

K303737

CAB FILTER

ELEMENT - filter

1шт.

14

K303739

HEATER

FAN AND MOTOR ASSEMBLY -

1шт.

15

K650603

BOLT

SCREW - M4 x 12 mm

7шт.

16

K651775

WASHER

- 4 mm

7шт.

17

K651845

WASHER

- lock, M4

7шт.

18

825-1404

NUT,M4, Cl 8

7шт.

19

K303555

FITTING

DUCT - air, left-hand

1шт.

20

K303554

FITTING

DUCT - air, right-hand

1шт.

21

K303740

NOZZLE CAP

NOZZLE - air duct

2шт.

22

K303726

BLOWER SWITCH

SWITCH - heater fan

1шт.

23

K303738

KNOB

- heater switch

1шт.

24

K656783

PLUG

- plastic, 11 mm

1шт.

25

K303182

COVER

- bulkhead

1шт.

26

REF

INSTRUCTION

STRIP - sealing, 15 x 8 inch (Order L35799 and, Serial Range: cut-length)

1шт.

27

K626212

SCREW

- No. 7 x 1/2 inch, self-tapping

5шт.

28

K651775

WASHER

- 4 mm

5шт.

29

K627754

GROMMET

- 12 mm

1шт.

35

K303494

PANEL

BULKHEAD - cab front

1шт.

36

K650816

SCREW,M8 x 1.25 x 1.25mm, Gr 8.8

- M8 x 16 mm

5шт.

37

K650817

SCREW

- M8 x 25 mm

6шт.

38

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

39

K627724

GROMMET

PLUG - bulkhead, 1-3/16 inch (30 mm)

1шт.

40

K303345

FOAM

STRIP - sealing, 2 750 mm

1шт.

41

K627775

RUBBER

GROMMET - bulkhead, 1-1/4 inch (32 mm)

1шт.

Выбрано товаров: 35
