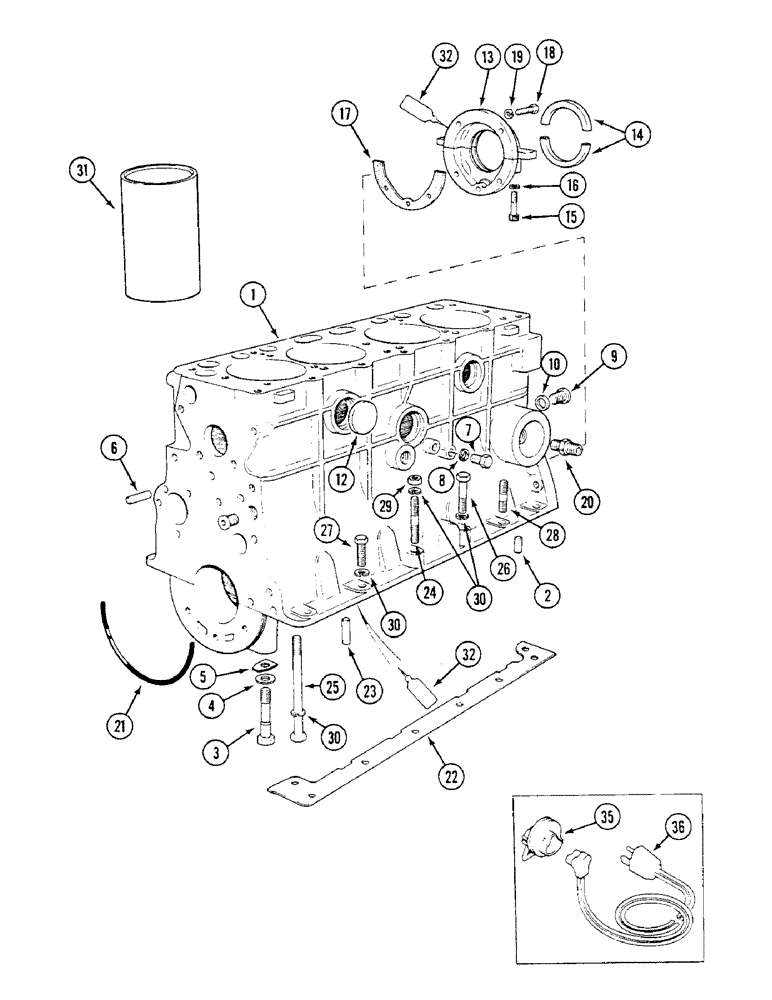

Запчасти Case IH 1294 (2-16) - CYLINDER BLOCK ASSEMBLIES (02) - ENGINE

1

K965716

SKELETON ENGINE

CYLINDER BLOCK ASSEMBLY - short, with crankshaft and pistons, Includes: Ref. 2 - 20

1шт.

1

K965168

BASIC BLOCK

CYLINDER BLOCK ASSEMBLY - stripped, with bearing caps, Includes: Ref. 2 - 20

1шт.

2

K12258

PIN

DOWEL - 5/16 x 3/4 inch

4шт.

2

K622908

PIN

DOWEL - 1/4 x 3/4 inch

2шт.

3

K902022

BOLT

- 5/8 UNC x 3-5/8 inch special

6шт.

4

K929557

WASHER

WASHER - flat, 5/8 inch

6шт.

5

K12994

BEARING WASHER

WASHER - tab

6шт.

6

K621807

PIN

DOWEL - 5/16 x 1/2 inch

2шт.

7

K19581

PLUG

- drain, 1/4 inch BSP

1шт.

8

K19501

WASHER

WASHER - sealing

1шт.

9

K609440

PLUG

- 5/8 inch UNC

1шт.

10

K619506

WASHER

- copper, 5/8 inch (16 mm)

1шт.

11

K609449

PLUG

- 5/8 inch UNC

1шт.

12

41-1628

PLUG,Cup, 1 3/4", Stainless

- core, 1-3/4 inch diameter

5шт.

13

K964844

HOUSING

RETAINER ASSEMBLY - oil, rear bearing, Includes: Ref. 14 - 16

1шт.

14

K262783

OIL SEAL

PACKING - halves

2шт.

15

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

BOLT - hex socket head, 5/16 NC x 1-1/2 inch

2шт.

16

L19481

WASHER - lock, 5/16 inch

2шт.

17

K950938

GASKET,0.18mm Thk

- halves

2шт.

18

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

5шт.

19

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

5шт.

20

K200007

FITTING

CONNECTOR - oil filter

1шт.

21

K902046

SEAL

- bearing caps

2шт.

22

K902044

GASKET

- left-hand

1шт.

22

K902045

GASKET

- right-hand

1шт.

23

K622903

PIN

DOWEL - 7/16 x 1-3/8 inch

2шт.

24

K608244

STUD

- 3/8 UNC x 2-1/4 inch

2шт.

25

K600460

BOLT

- 3/8 UNC x 6-3/4 inch

4шт.

26

K600406

BOLT

- special, 3/8 UNC x 1-3/4 inch

1шт.

27

K602906

SCREW

BOLT - 3/8 UNC x 1-1/4 inch -, 3/8 UNC x 1-1/4 inch

6шт.

28

K608201

STUD

- 3/8 UNC x 1-5/8 inch

2шт.

29

280136

NUT,3/8"-16, G8

4шт.

30

492-11038

LOCK WASHER,3/8"

16шт.

K260282

GASKET

GASKET SET - cylinder block

1шт.

31

K964857

LINER, ENGINE CYLIND

CYLINDER LINER - engine

1шт.

32

REF

INSTRUCTION

SILMATE RTV - gasket replacement (See your Case dealer)

1шт.

35

121568A1

RESISTOR

HEATER ASSEMBLY - cylinder block

1шт.

36

A48264

CABLE

CORD - heater, cylinder block

1шт.
