Запчасти Case IH 1294 (9-350) - FRONT AND SIDE WINDOWS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

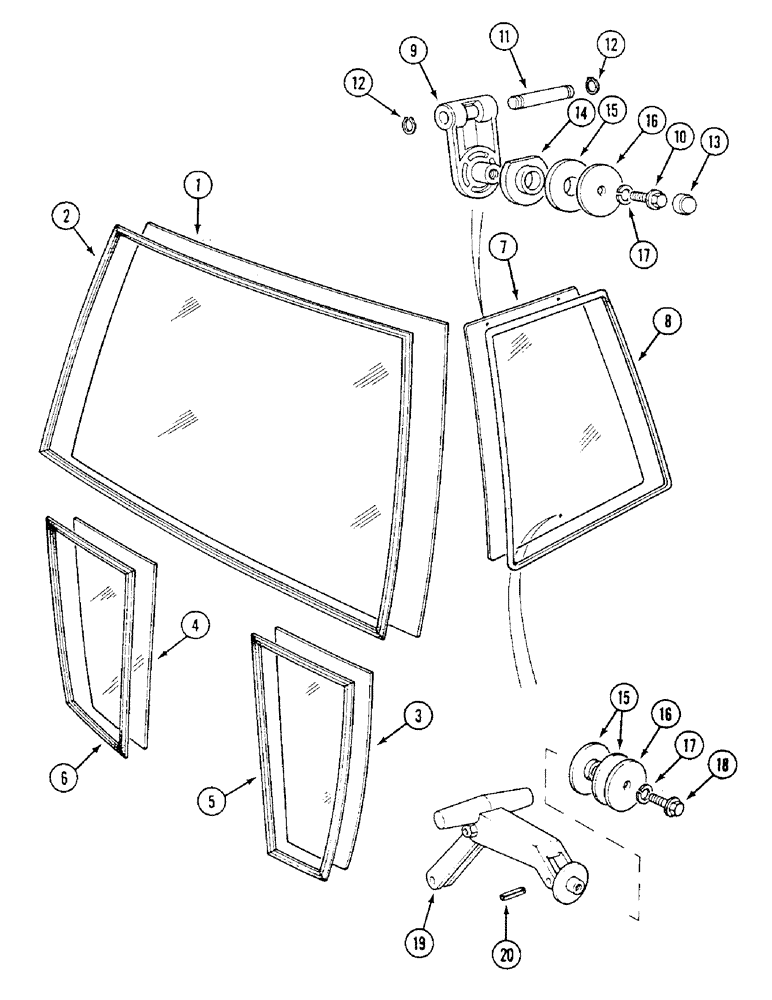

Схема запчастей Case IH 1294 - (9-350) - FRONT AND SIDE WINDOWS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
1
11
18
12
8
17
15
12
3
16
15
14
20
9
7
19
17
5
2
16
13
10
4
6

Артикул

Название

Примечание

Количество

1

K303699

GLASS

- windshield

1шт.

2

K310092

RUBBER

FRAME - rubber, windshield

1шт.

3

K303689

WINDOW

GLASS - left-hand front window

1шт.

4

K303690

WINDOW

GLASS - right-hand front window

1шт.

5

K311650

SEAL, GLASS

FRAME - rubber, left-hand window

1шт.

6

K311649

SEAL, GLASS

FRAME - rubber, right-hand window

1шт.

7

K303705

GLASS

- left-hand side window

1шт.

7

K303704

GLASS

- right-hand side window

1шт.

8

K303591

SEAL

STRIP - sealing, 2,325 mm

2шт.

9

K303875

HINGE

-

4шт.

10

K650626

BOLT

- M6 x 14 mm

4шт.

11

1535323C1

PIN,8mm OD x 78.5mm L

- large, Order also 1535283C1 Snap Ring

4шт.

12

K653509

RING, SNAP

RING - retaining, 8 mmexternal

8шт.

13

K965671

CAP

-

8шт.

14

K303928

GROMMET

WASHER - rubber

4шт.

15

K303501

SPACER,12mm ID x 18.5mm OD x 5.5mm L

WASHER - rubber

12шт.

16

K303571

WASHER,6.5mm ID x 36mm OD x 3mm Thk

- 6 mm

4шт.

17

K651933

LOCK WASHER

WASHER - lock, M, 6

6шт.

18

K650626

BOLT

- M6 x 14 mm

2шт.

19

K303804

HANDLE

ASSEMBLY -

2шт.

20

K692212

PIN

- spring, 5 x 15 mm

2шт.

Выбрано товаров: 21
