Запчасти Case IH 1294 (9-346) - CAB DOOR, LEFT-HAND, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

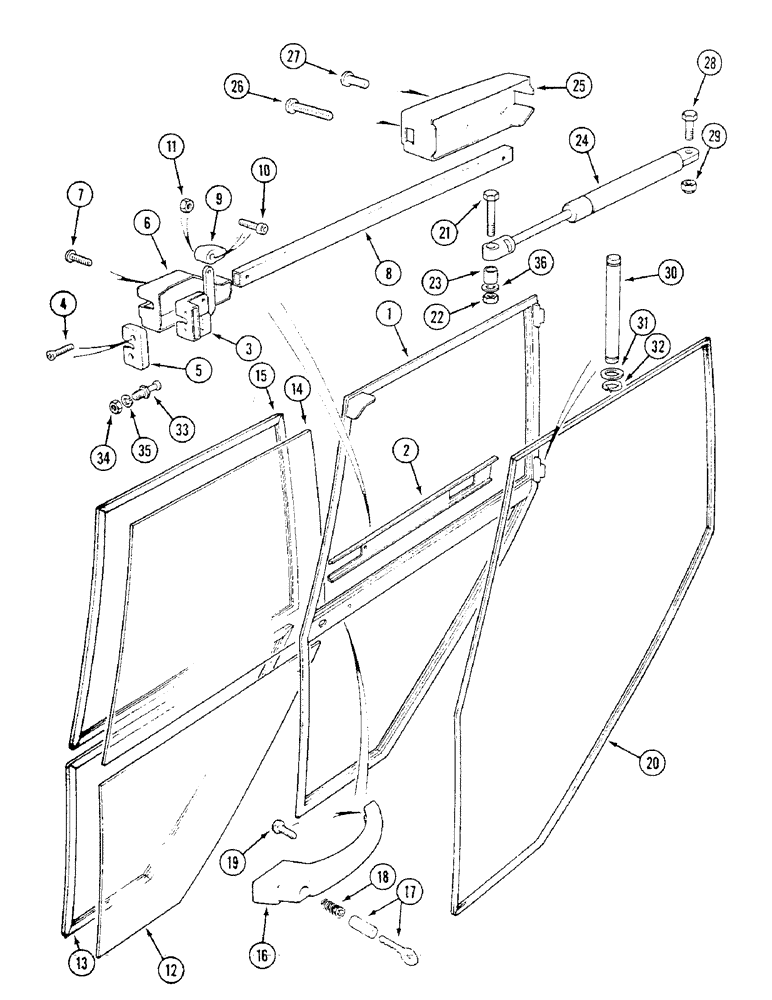

Схема запчастей Case IH 1294 - (9-346) - CAB DOOR, LEFT-HAND, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
24
30
11
17
23
1
4
6
22
9
7
33
26
27
35
29
20
16
34
3
12
8
32
3
15
2
10
25
5
36
18
14
19
13
21
28

Артикул

Название

Примечание

Количество

K303282

DOOR

ASSEMBLY - left-hand, Includes: Ref. 1 - 28

1шт.

1

K303283

DOOR

1шт.

2

K303874

COVER

- plastic

1шт.

3

K303805

LOCK

1шт.

4

K652785

SCREW,M5 x 25mm

- M5 x 25 mm

2шт.

5

K303751

GUIDE

PLATE

1шт.

6

K303506

COVER

- door lock

1шт.

7

K652505

SCREW,M5 x 20mm

- M5 x 20 mm

3шт.

8

K303872

DOOR

PULL

1шт.

9

112069A1

DOOR COVER

KNOB - inner handle

1шт.

10

K653626

SCREW,M6 x 20mm

- M6 x 20 mm

1шт.

11

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

12

K303703

GLASS

- lower window

1шт.

13

K310088

RUBBER

FRAME - rubber, lower window

1шт.

14

K303701

GLASS

- upper window

1шт.

15

K310090

RUBBER

FRAME - rubber, upper window

1шт.

16

K303755

HANDLE

- outer, Includes: Ref. 17 & 18

1шт.

17

K260516

LOCK

BARREL AND KEY, Includes: key

1шт.

17

K262066

KEY

- door (No. 7725)

1шт.

18

K260987

SPRING

- door handle

1шт.

19

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

1шт.

20

K303881

DOOR SEAL

STRIP - sealing, 4060 mm

11шт.

21

614-6050

BOLT,Hex, M6 x 1 x 50mm, Cl 8.8, Full Thd

- hex, full threads, 6 - 1.0 x 50 mm, 8.8

1шт.

22

15896221

NUT,Hex, M6, 5.20mm High, Cl 10

1шт.

23

K303871

BUSHING

- rubber

1шт.

24

K303870

SHOCK ABSORBER

STRUT - gas

1шт.

25

K303873

COVER

- gas strut

1шт.

26

K652509

SCREW,Pan, M6 x 1 x 30mm

- M6 x 30 mm

1шт.

27

840-1612

SCREW,Pan, M6 x 12mm, Cl 4.8

- machine, pan Phillips, 6 - 1.0 x 12 mm

1шт.

28

K650814

BOLT

- M6 x 30 mm

1шт.

29

K652132

NUT

- self-locking, M6

2шт.

30

K309727

PIN

- hinge, 9 x 99 mm (Replaces K303521)

2шт.

31

K651915

WASHER

- 9 mm

6шт.

32

K653511

RING, SNAP

RING - retaining, 8 mm external

4шт.

33

K303810

BOLT

- striker, M12

1шт.

34

K651595

NUT

- M12

1шт.

35

K691835

WASHER

- 12 mm

2шт.

36

K651933

LOCK WASHER

WASHER - lock, M6

1шт.

Выбрано товаров: 38
