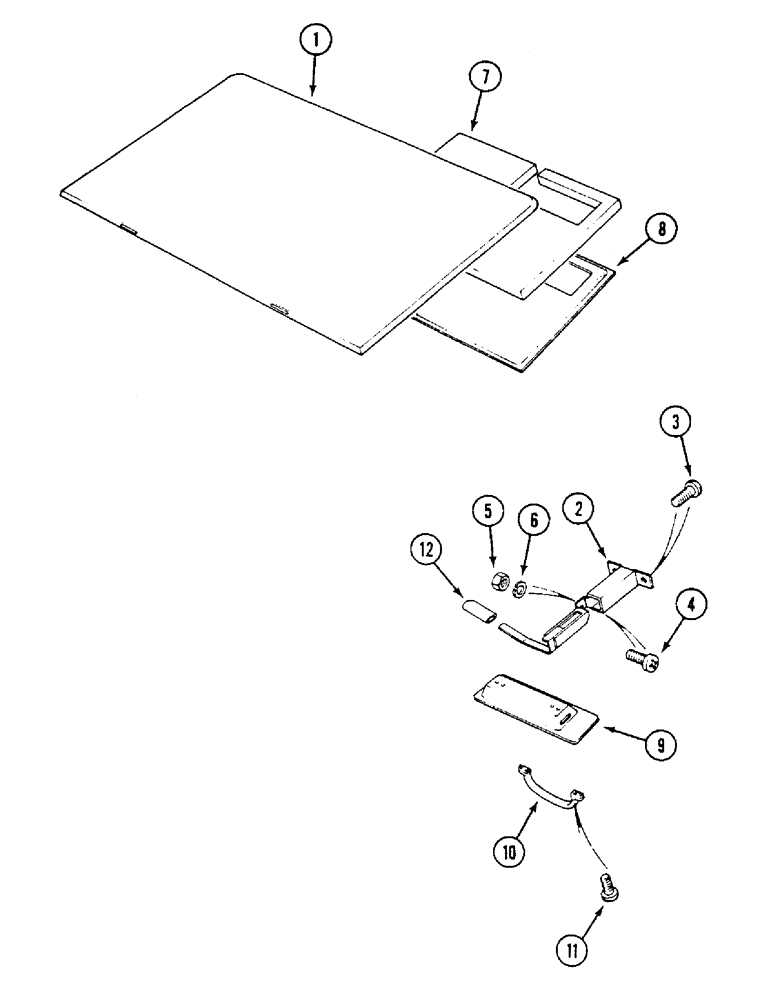

Запчасти Case IH 1294 (9-344) - ROOF HATCH, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

1

K307651

HATCH

- roof, Includes: Ref. 2 - 12

1шт.

2

K303927

LOCK

- hatch

1шт.

3

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

2шт.

4

K652503

SCREW

- M5 x 12 mm

3шт.

5

K652105

NUT

- self-locking, M5

1шт.

6

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

7

K307550

FOAM

TRIM - inner

1шт.

8

K307551

FOAM

TRIM - outer

1шт.

9

K307653

COVER

- lock

1шт.

10

K303745

HANDLE

- hatch

1шт.

11

K652503

SCREW

- M5 x 12 mm

2шт.

12

K303760

HANDLE

COVER - lock handle

1шт.
