Запчасти Case IH 1294 (9-338) - CAB MOUNTINGS AND STEPS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

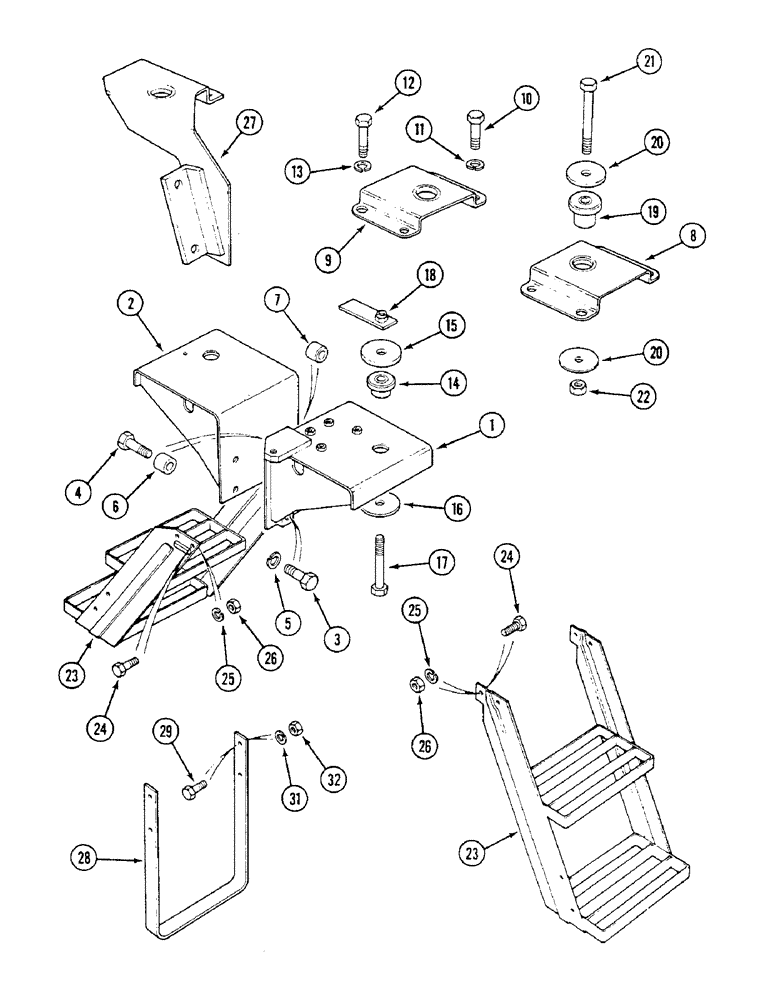

Схема запчастей Case IH 1294 - (9-338) - CAB MOUNTINGS AND STEPS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
13
2
21
32
7
23
1
20
12
5
25
23
16
18
19
28
24
26
14
20
27
8
10
26
17
25
6
24
15
9
29
11
31
4
22
3

Артикул

Название

Примечание

Количество

1

K207489

CAB

BRACKET - mounting, left-hand front

1шт.

2

K207493

CAB

BRACKET - mounting, right-hand front

1шт.

3

K603307

SCREW

BOLT - 5/8 UNC x 1-5/8 Inch

4шт.

4

K603278

SCREW

BOLT - 5/8 UNC x 2 inch

3шт.

4

K603280

SCREW

BOLT - 5/8 UNC x 2-1/4 inch

1шт.

5

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

6

K207340

BUSHING

SPACER - spring anchor

1шт.

7

K655811

BUSHING

SPACER - right-hand bracket

4шт.

8

K207495

CAB

BRACKET - mounting, left-hand rear

1шт.

9

K207496

CAB

BRACKET - mounting, right-hand rear

1шт.

10

K603140

SCREW

BOLT - 1/2 UNC x 1-1/8 inch

4шт.

11

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

12

K603307

SCREW

BOLT - 5/8 UNC x 1-5/8 inch

4шт.

13

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

14

L46821

SHOCK ABSORBER

BUSHING - rubber, front

2шт.

15

K307877

WASHER

- special, upper

2шт.

16

K309879

WASHER

- special, lower

2шт.

17

K600880

BOLT

- 1/2 UNC x 3 inch

2шт.

18

K207515

NUT

- special, 1/2 inch UNC

2шт.

19

A140221

MOUNTING PARTS

BUSHING - rubber, rear

2шт.

20

A141470

WASHER

- special, special

4шт.

21

413-1096

BOLT,Hex, 5/8" - 11 x 6", Gr 5

- hex, 5/8 NC x 6 inch

2шт.

22

K607306

NUT

- self-locking, 5/8 inch UNC

2шт.

23

K304444

STEP

- operator (Not North America)

2шт.

24

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

8шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

8шт.

26

825-1408

NUT,M8, Cl 8

8шт.

27

K207535

BRACKET

- mounting, left-hand rear (High clearance)

1шт.

27

K207537

BRACKET

- mounting, right-hand rear (High clearance)

1шт.

28

K304450

EXTENSION

- step (High clearance)

2шт.

29

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm (High clearance)

8шт.

30

825-1408

NUT,M8, Cl 8

(High clearance) M8, Cl 8

8шт.

31

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, (High clearance) M8

8шт.

Выбрано товаров: 33
