Запчасти Case IH 1294 (9-332) - 4 POST ROLL OVER PROTECTIVE STRUCTURE, NORTH AMERICA ONLY (09) - CHASSIS/ATTACHMENTS

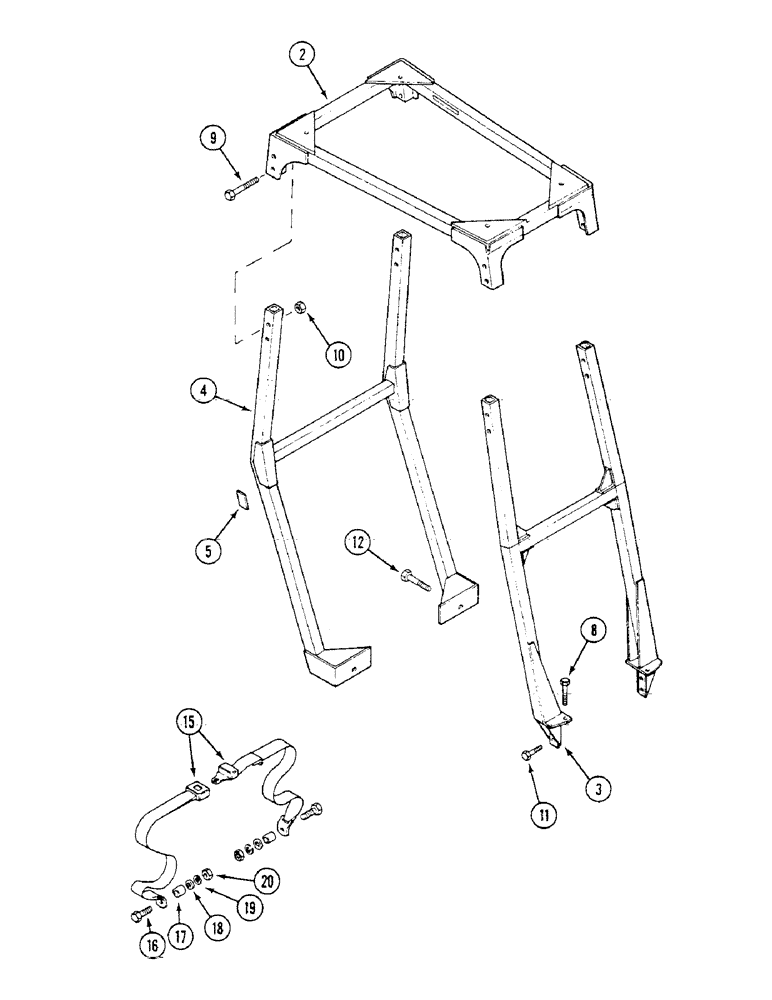

Схема запчастей Case IH 1294 - (9-332) - 4 POST ROLL OVER PROTECTIVE STRUCTURE, NORTH AMERICA ONLY (09) - CHASSIS/ATTACHMENTS
17
16
18
11
8
20
9
3
19
5
4
10
2
15
12

Артикул

Название

Примечание

Количество

A164850

FRAME

ASSEMBLY - 4 post ROPS, Includes: Ref. 2 - 8

1шт.

2

A169134

FRAME

ASSEMBLY - upper, Includes: Ref. 5

1шт.

3

A169133

FRAME

ASSEMBLY - front, Includes: Ref. 5

1шт.

4

A169135

FRAME

ASSEMBLY - rear, Includes: Ref. 5

1шт.

5

A169138

PAD

BUMPER - rear frame

2шт.

8

113-479

BOLT

- hex, 1/2 NC x 2-1/4 inch (Order 113-441)

4шт.

9

413-8116

BOLT,Hex, 1/2" - 13 x 7-1/4", Gr 5

- hex, black special, 1/2 NC x 3 inch (Order 113-425), Includes: Ref. 10 - 15

8шт.

10

131-492

NUT,1/2"-13

NUT - lock, hex, 1/2 inch NC

8шт.

11

413-1024

BOLT,Hex, 5/8" - 11 x 1-1/2", Gr 5

4шт.

12

113-810

BOLT,Hex, 7/8" - 9 x 2-1/2", Gr 5

- hex, 5/8 NC x 2-1/2 inch

4шт.

REF

INSTRUCTION

CANOPY ASSEMBLY - roll over (Not shown), See Figure 9-334

1шт.

15

REF

INSTRUCTION

BELT - seat, safety 2 inch wide, See Figure 9-316

1шт.

Выбрано товаров: 12
