Запчасти Case IH 1294 (9-326) - DECALS, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

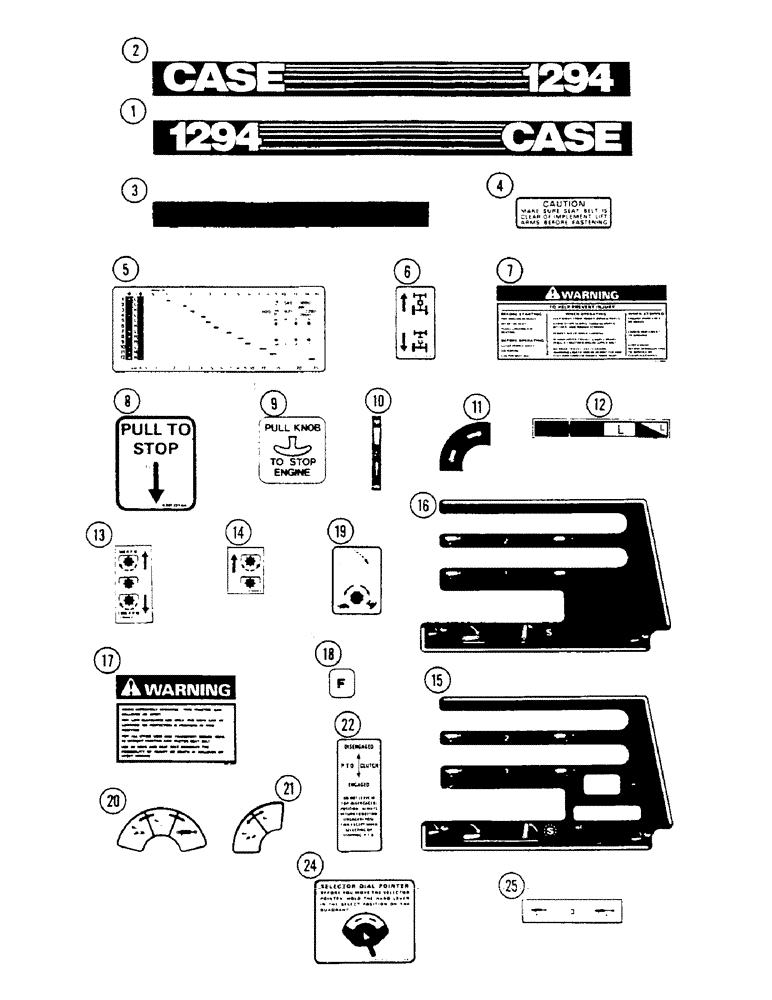

Схема запчастей Case IH 1294 - (9-326) - DECALS, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
7
19
8
2
18
16
24
11
5
21
4
14
13
10
17
15
22
12
1
20
6
9
25
3

Артикул

Название

Примечание

Количество

1

K307752

DECAL

- waistrail, right-hand

1шт.

2

K307753

DECAL

- waistrail, left-hand

1шт.

3

K307627

DECAL

- hood nose

1шт.

4

K945069

DECAL

- seat belt

1шт.

5

K307611

DECAL

- travel speed chart (Synchromesh)

1шт.

6

K302304

DECAL

- MFD control

1шт.

7

321-6641

DECAL

- warning instructions (North America)

1шт.

8

K301231

DECAL

- engine stop control

1шт.

9

K307961

DECAL

- engine stop control (North America)

1шт.

10

K952669

DECAL

- engine speed control

1шт.

11

K308621

DECAL

- turn signal

1шт.

12

K919845

PRODUCT GRAPHIC

DECAL - three-way valve

1шт.

13

K954771

DECAL

- PTO lever, multi-speed

1шт.

14

K952561

DECAL

- PTO lever, single-speed

1шт.

15

K307919

DECAL

- operators console (Not North America)

1шт.

16

K307918

DECAL

- operators console (North America)

1шт.

17

321-6871

DECAL

- ROPS warning (North America)

1шт.

18

K308245

DECAL

- remote valve, float position

1шт.

19

321-6371

DECAL

- lowering control

1шт.

20

K307935

DECAL

- instructions, indicator panel

1шт.

21

K307936

DECAL

- instructions indicator panel (North America)

1шт.

22

321-6370

DECAL

- instruction, PTO clutch lever

1шт.

24

321-6369

DECAL

- selector control operation

1шт.

25

K307940

DECAL

- remote valve, third

1шт.

Выбрано товаров: 24
