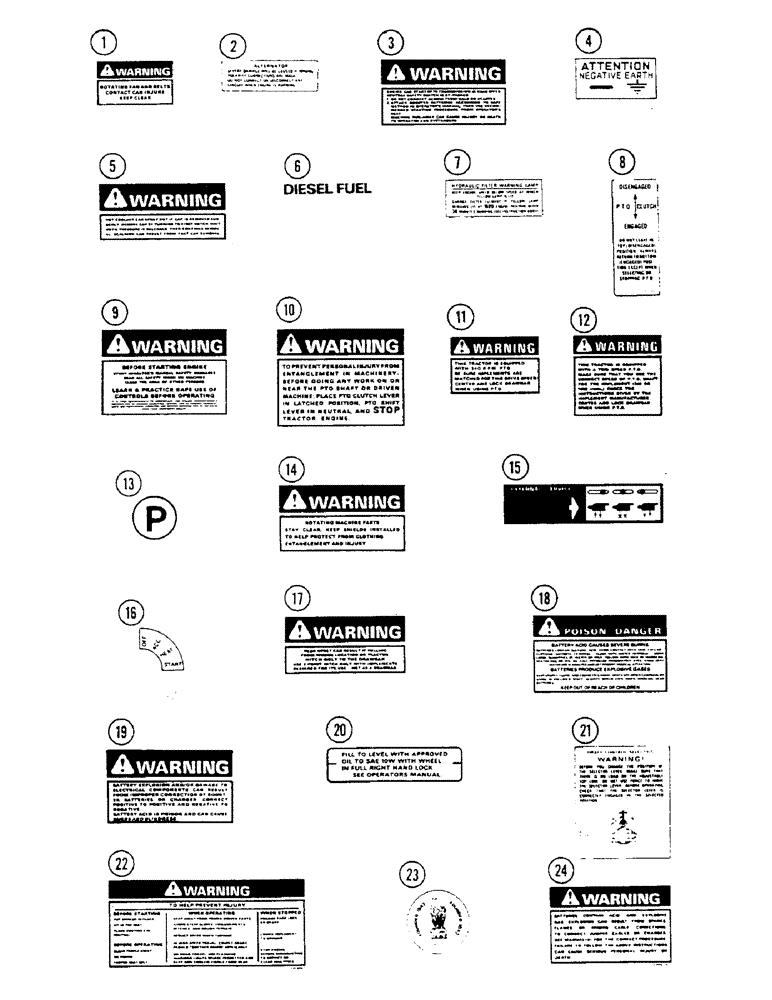

Запчасти Case IH 1294 (9-324) - DECALS (09) - CHASSIS/ATTACHMENTS

1

321-3596

DECAL

- Warning, rotating fan and belts

2шт.

2

K947548

DECAL

- alternator

1шт.

3

321-7040

DANGER DECAL

DECAL, DANGER, Starting in gear can cause death

1шт.

4

K917425

PRODUCT GRAPHIC

DECAL - negative earth

1шт.

5

321-6672

DECAL

- Warning, cooling system

1шт.

6

321-230

DECAL

- diesel fuel (Black letters)

1шт.

7

K921368

DECAL

- hydraulic filter

1шт.

8

321-6370

DECAL

- instruction, PTO clutch

1шт.

9

321-3705

DECAL

- engine starting warning

1шт.

10

321-6368

DECAL

- warning, PTO clutch lever

1шт.

11

K308622

DECAL

- PTO operation, 540 RPM

1шт.

12

K203386

DECAL

- warning, multi-speed PTO

1шт.

13

K308623

DECAL

- parking brake

1шт.

14

321-6715

DECAL

- warning, rotating machinery

1шт.

15

K952540

DECAL

- remote valves

1шт.

16

K953665

DECAL

- ignition switch

1шт.

17

321-3845

DECAL

- warning, hitch

1шт.

18

K952727

PRODUCT GRAPHIC

DECAL - battery warning

1шт.

19

321-6714

DECAL

- Warning, batteries contain acid (North America)

1шт.

20

K204091

DECAL

- power steering reservoir

1шт.

21

K940361

PRODUCT GRAPHIC

DECAL - warning, selective sensing control

1шт.

22

321-6641

DECAL

- operator warning

1шт.

23

A180055

CAP ASSY.

INSERT - Case Globe and Eagle

1шт.

24

321-6714

DECAL

- Warning, batteries contain acid and explosive gas

1шт.
