Запчасти Case IH 1294 (9-320) - SEAT ASSEMBLY K307642, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

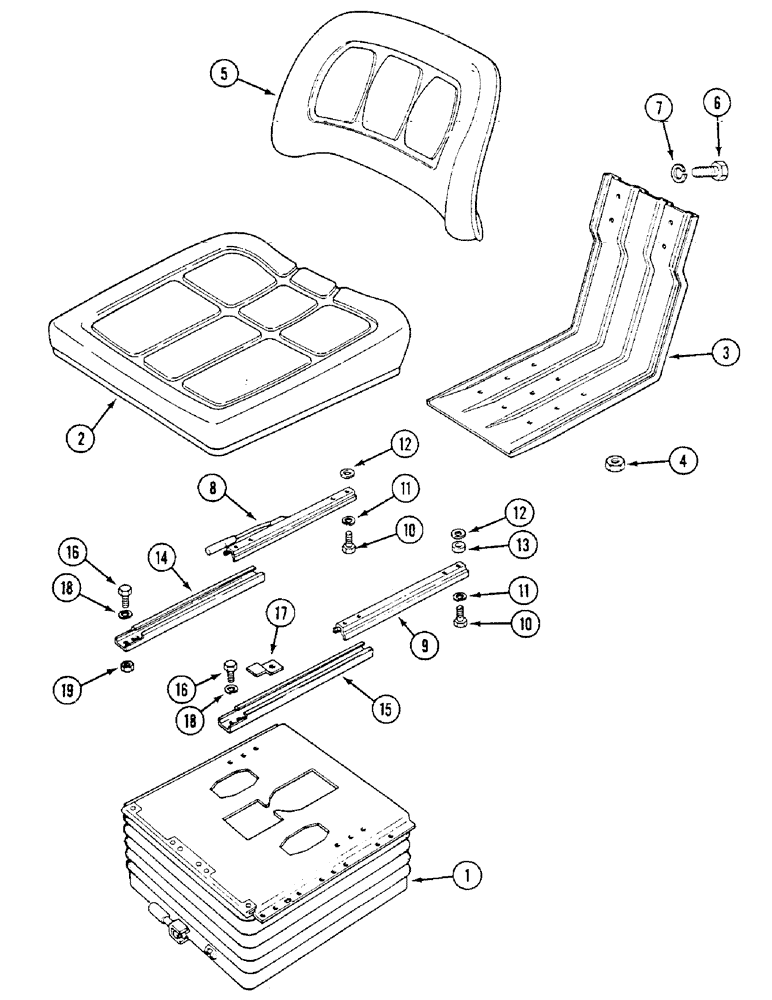

Схема запчастей Case IH 1294 - (9-320) - SEAT ASSEMBLY K307642, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
12
18
10
10
16
2
9
17
6
8
12
15
14
3
4
13
7
16
11
5
11
1
19
18

Артикул

Название

Примечание

Количество

K307642

SEAT

ASSEMBLY - operator, Includes: Ref. 1 - 19

1шт.

1

K307643

SEAT

ASSEMBLY - operator, See Figure 9-322

1шт.

K307647

SEAT

- operator, Includes: Ref. 2 - 19

1шт.

2

K262125

CUSHION

- cloth

1шт.

2

K260854

SEAT PLATE

CUSHION - vinyl (Grammer 112494)

1шт.

3

K262126

BRACKET

- support

1шт.

4

60-4845T1

NUT

- hex, self locking, M8

6шт.

5

K262124

CUSHION

BACKREST - cloth

1шт.

5

K260853

SEAT

BACKREST - vinyl (Grammer 112493)

1шт.

6

K262127

SCREW

BOLT - M8 x 20 mm

4шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

8

K262129

RUNNER

- right-hand, upper

1шт.

9

K261690

SEAT

RUNNER - left-hand, upper

1шт.

10

934895R1

SCREW,Slotted Cheese, M8 x 16mm, Cl 8.8

BOLT - M8 x 16 mm

4шт.

11

3402560R1

WASHER,M8.4

- lock, 8 mm

4шт.

12

3402570R1

WASHER

- 10 mm

4шт.

13

K262128

BUSHING

SPACER -, Serial Range: runners-seat

4шт.

14

K262123

RUNNER

- right-hand, lower

1шт.

15

K261691

RAIL

RUNNER - left-hand, lower

1шт.

16

K262104

SCREW

BOLT - M8 x 20 mm

6шт.

17

K261694

STOP

BRACKET - stop

1шт.

18

3402565R1

WASHER

- ock, 8 mm

6шт.

19

K262106

NUT

- M8

6шт.

Выбрано товаров: 23
