(9-318) - SEAT ASSEMBLY - K307863, TRACTORS WITHOUT CAB

Запчасти Case IH 1294 (9-318) - SEAT ASSEMBLY - K307863, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

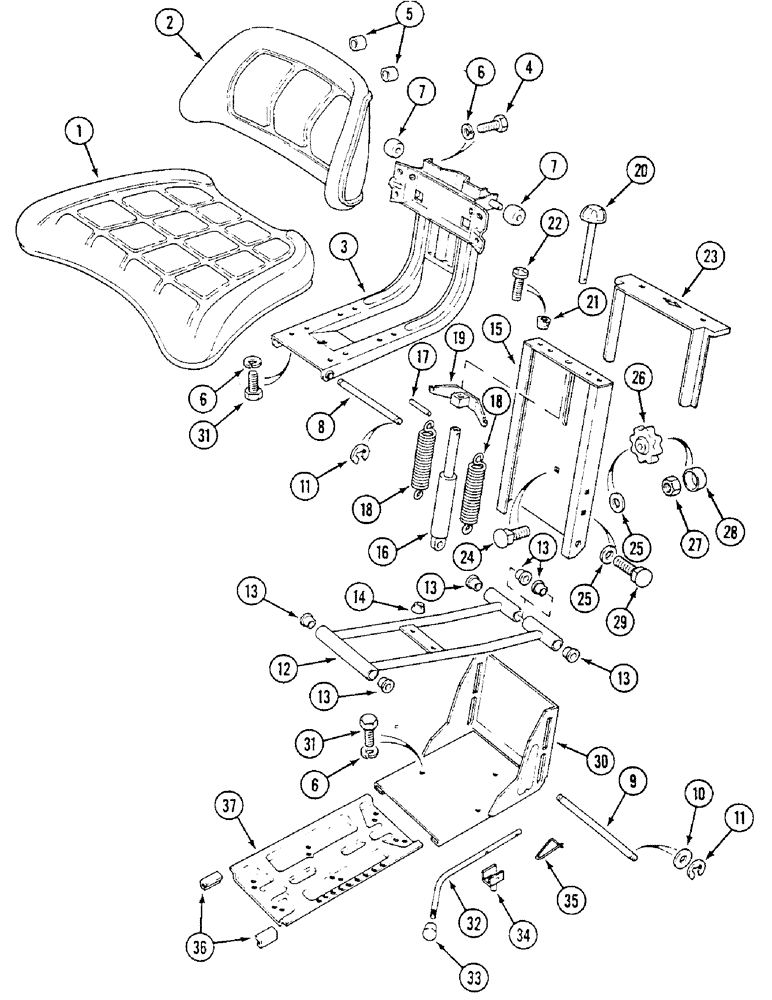

Схема запчастей Case IH 1294 - (9-318) - SEAT ASSEMBLY - K307863, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
15
33
1
36
22
32
16
13
13
23
31
28
35
11
37
7
5
19
2
4
27
17
7
25
26
6
13
10
11
18
34
9
8
3
18
21
20
30
14
13
6
12
24
13
25
29
6
31
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

K307863

SEAT

ASSEMBLY - operator

1шт.

1

K262086

CUSHION

- seat

1шт.

2

K262081

CUSHION

BACKREST

1шт.

3

K262087

BRACKET

- support

1шт.

4

934679R1

BOLT,Hex, M8 x 1.25 x 20mm, Cl 4.6

- hex, 8 x 20 mm

4шт.

5

3223473R1

SPACER

- backrest

4шт.

6

K11517

WASHER

- ock, 8 mm

10шт.

7

K260659

ROLLER

- nylon

2шт.

8

3229883R1

PIN

ROD - pivot, front

1шт.

9

3229897R1

PIN

ROD - pivot, rear

1шт.

10

K262090

WASHER

- 12 mm

4шт.

11

K621587

RING, SNAP

RING - snap, 3/8 inch (10 mm) external

4шт.

12

K262084

BEAM

LINK - suspension

1шт.

13

3134834R1

BUSHING

- nylon

6шт.

14

3223486R1

BUMPER

BUFFER - rubber

2шт.

15

K262083

FRAME

- backrest

1шт.

16

1335003C1

CYLINDER

DAMPER - suspension

1шт.

17

827364C1

RIVET,Flat Hd, M4 x 25

PIN - 4 x 25 mm

1шт.

18

K262076

SPRING

- suspension

2шт.

19

1334996C1

BRACKET

ANCHOR - spring

1шт.

20

K262074

KNOB

AND SPINDLE - adjuster

1шт.

21

1335004C1

BUMPER

DAMPER - rubber

2шт.

22

3404081R1

SELF-TAP SCREW,Slotted Pan Hd, M4.8 x 22

SCREW - buffer

2шт.

23

824308C1

COVER

- plastic

1шт.

24

1334995C1

SCREW,M10 x 35mm

BOLT - M10 x 35 mm

1шт.

25

K262089

WASHER

- 10 mm

6шт.

26

3229898R1

BUTTON

NUT - hand, M10

1шт.

27

3217417R1

NUT

- M10

2шт.

28

60-1656T1

COVER

- plastic

1шт.

29

K963470

BOLT

- M10, special

2шт.

30

K262082

FRAME

- base

1шт.

31

K262079

SCREW

BOLT - M8 x 16 mm

6шт.

32

K262080

LEVER

- adjusting, Includes: Ref. 33 - 35

1шт.

33

3229902R1

KNOB

- adjusting lever

1шт.

34

K262153

FORK

- adjusting lever

1шт.

35

K262073

SPRING

- adjusting lever

1шт.

36

3229900R1

SLIDE

CHANNEL - slider

4шт.

37

3229893R1

PLATE

BASE - seat

1шт.
