Запчасти Case IH 1294 (9-316) - SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS

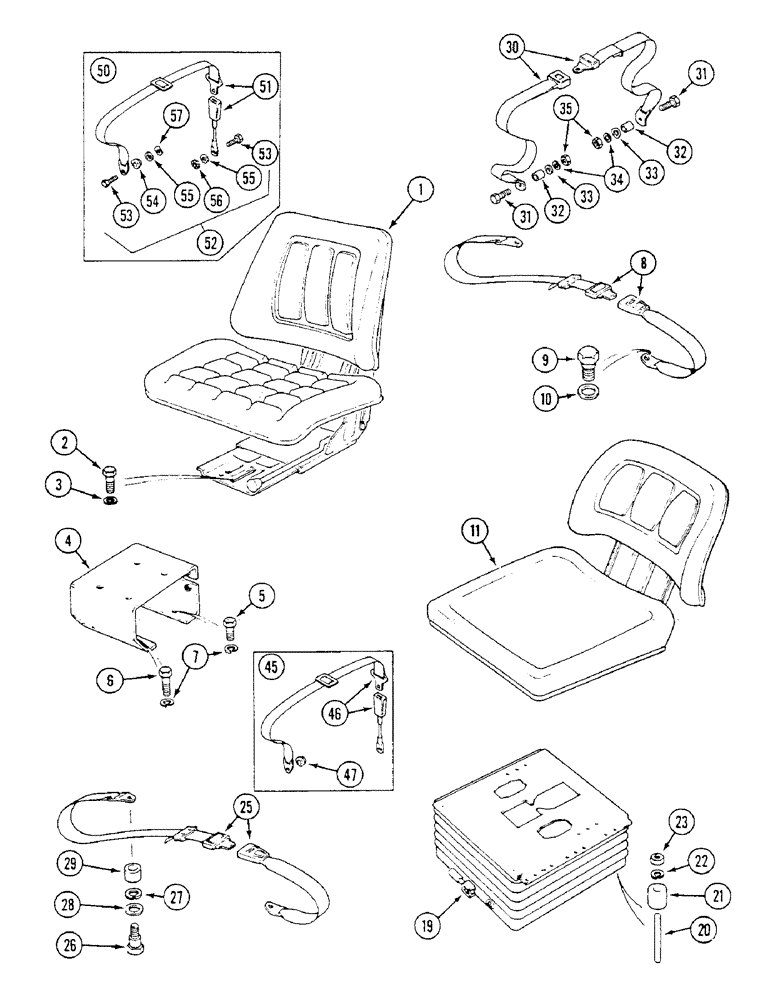

Схема запчастей Case IH 1294 - (9-316) - SEAT ASSEMBLIES (09) - CHASSIS/ATTACHMENTS
20
31
56
4
51
7
9
26
45
33
5
32
52
10
33
19
3
32
47
55
6
31
22
55
57
53
28
54
34
23
8
2
21
35
1
30
11
29
46
25
27
53
50

Артикул

Название

Примечание

Количество

1

K307863

SEAT

ASSEMBLY - operator, See Figure 9-318

1шт.

2

614-10025

BOLT,Hex, M10 x 1.5 x 25mm, Cl 8.8

4шт.

3

892-11010

LOCK WASHER,M10

4шт.

4

K307852

BRACKET

- seat support

1шт.

5

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

2шт.

6

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

UK1596

BELT

ATTACHMENT - seat belt, Includes: Ref. 8 - 10

1шт.

8

A160404

SAFETY BELT

BELT - seat, safety

1шт.

9

K945348

BOLT

- 7/16 inch UNF

2шт.

10

K945349

WASHER

- special

2шт.

K307642

SEAT

ASSEMBLY - operator, Includes: Ref. 11 & 19

1шт.

11

K307647

SEAT

- operator

1шт.

19

K302740

SUSPENSION

ASSEMBLY - seat, See Figure 9-322

1шт.

20

K655110

STUD

- M8 x 50 mm

4шт.

21

K304093

BUSHING

SPACER - seat mounting

4шт.

22

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

23

825-1408

NUT,M8, Cl 8

4шт.

UK6643

BELT

ATTACHMENT - seat belt, Includes: Ref. 25 - 29

1шт.

25

A160404

SAFETY BELT

BELT - seat, safety

1шт.

26

K613005

SCREW

BOLT - 7/16 UNF x 1-1/4 inch

2шт.

27

K626314

WASHER

- 7/16 inch

2шт.

28

K626480

WASHER

- lock, 1/2 inch

2шт.

29

K309647

BUSHING

SPACER - seat

2шт.

30

A160404

SAFETY BELT

BELT - seat, safety

1шт.

31

A61946

STEP BOLT

BOLT - seat belt shoulder

2шт.

32

A60907

BUSHING

SPACER - anchor bolt

2шт.

33

495-11047

WASHER,7/16", SAE

(15/32 x 59/64 x 1/16") 7/16", SAE

2шт.

34

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

2шт.

35

425-117

NUT,7/16"-20, G5

- hex, 7/16 inch NF

2шт.

45

REF

INSTRUCTION

SEAT BELT PACK - for K307642, (With Cab), Includes: Ref. 46 & 47

1шт.

46

K262717

BELT

SEAT BELT PACK - seat, safety 2 inch wide, Includes: Ref. 47

1шт.

47

K262228

KIT

FITTING KIT -

1шт.

47

K311825

BUSH - belt anchor, belt anchor

1шт.

50

K311834

BELT

SEAT BELT PACK - for K307863 seat assembly (With ROPS and Without Cab)

1шт.

51

REF

INSTRUCTION

BELT - seat, safety 2 inch wide

1шт.

52

K262227

KIT

FITTING KIT, Includes: Ref. 53 - 57

1шт.

53

K311831

SCREW -

2шт.

54

K311832

BUSH - belt anchor

1шт.

55

K311833

WASHER - plain

2шт.

56

K311829

WASHER - star

1шт.

57

K311826

WASHER - wavy

1шт.
