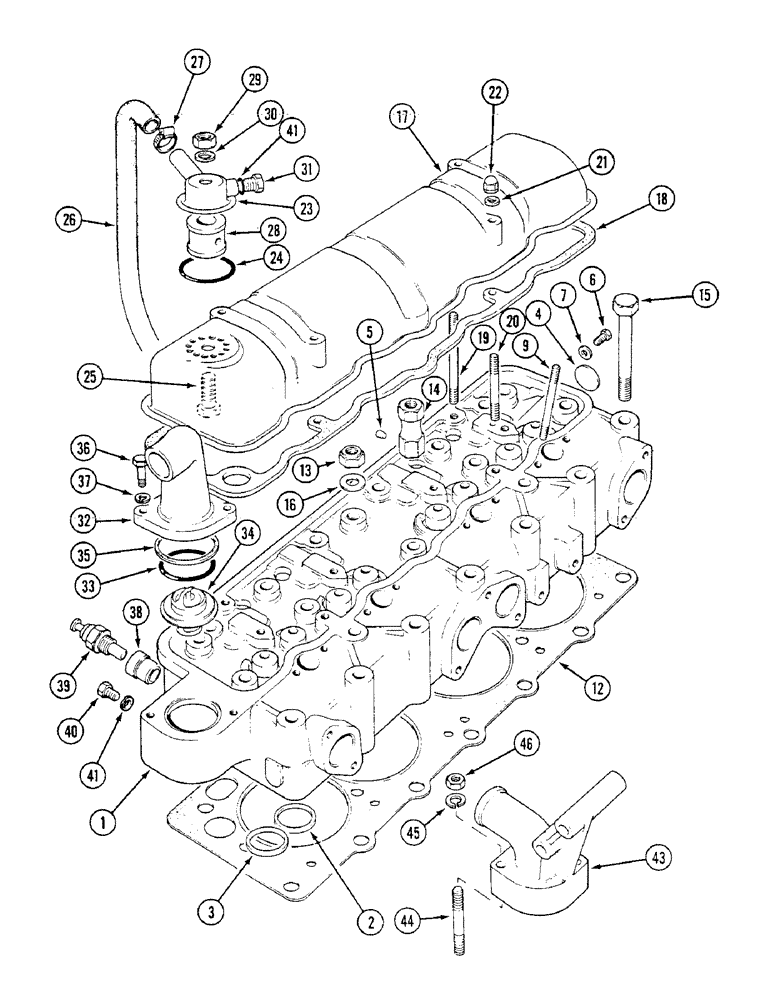

Запчасти Case IH 1294 (2-12) - CYLINDER HEAD (02) - ENGINE

1

K260131

HEAD (CYLINDER)

HEAD ASSEMBLY - cylinder, Includes: Ref. 2 - 5

1шт.

No valve guides. Motor shop can insert valve guides in the head.

1шт.

2

K921246

INSERT

- intake valve seat

4шт.

3

K925019

INSERT

- exhaust valve seat

4шт.

4

41-1620

PLUG,Cup, 1 1/4", Stainless

- cup, 1-1/4 inch diameter

1шт.

5

K900431

PLUG

- taper

4шт.

6

K19591

PLUG

- 1/8 BSP

1шт.

7

K16732

WASHER

- copper, 3/8 inch (10 mm)

1шт.

9

K608107

STUD

- injectors, 5/16 UNC x 2-11/16 inch

8шт.

12

K262750

GASKET

- cylinder head

1шт.

13

K617594

NUT

- 1/2 inch UNF

5шт.

14

K906536

NUT

NUT - elongated, 1/2 inch UNF

7шт.

15

326-868

BOLT,Hex, 1/2" - 13 x 4-1/4", Gr 8

- hex, 1/2 NC x 4-1/4 inch, grade 8

7шт.

16

K953429

WASHER,13.89mm ID x 23.81mm OD x 0.71mm Thk

- flat, 1/2 inch

19шт.

17

K207984

COVER

- cylinder head

1шт.

18

K905229

GASKET,3.97mm Thk

- rocker arm cover

1шт.

19

K608118

STUD

- 5/16 UNC x 3-7/16 inch

2шт.

20

K608119

STUD

- 5/16 UNC x 2-13/16 inch

2шт.

21

K626653

WASHER,8.33mm ID x 14.29mm OD x 2.38mm Thk

- sealing, 5/16 inch (8 mm)

4шт.

22

234-10431

CROWN NUT,Crown, 5/16"-18

4шт.

23

K210370

COVER

- breather, Includes: tube

1шт.

K210368

PIPE,0.312" OD

TUBE - breather

1шт.

24

K626901

O-RING,40554" ID x 40575" OD x 0.12"

O-RING - 1-11/16 inch (43 mm) ID

1шт.

25

K600803

BOLT,Hex, 1/2" - 13 x 1 5/8", Gr 5

- 1/2 UNC x 1-5/8 inch

1шт.

26

K210186

PIPE,23.25, 6.25" L

HOSE - breather

1шт.

27

K622024

CLAMP

CLIP - hose, 3/4 inch (19 mm)

1шт.

28

K945433

BUSHING

SPACER - breather

1шт.

29

86632558

JAM NUT,Jam, 1/2"-13, G5

NUT - lock, 1/2 inch UNC

1шт.

30

K651817

WASHER

- copper

1шт.

31

K623829

PLUG

- 3/8 inch BSP

1шт.

32

K200724

OUTLET

TUBE - water outlet

1шт.

33

238-5138

O-RING,0.103" Thk x 2.112" ID, -138, Cl 5, 75 Duro

1шт.

34

K208039

THERMOSTAT

- water temperature, 96 degrees C (Replaces K917962)

1шт.

35

K200225

GASKET,0.81mm Thk

- thermostat

1шт.

36

9635884

BOLT,Hex, 5/16" - 18 1", Full Thd, Gr 5

2шт.

37

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

38

K203464

ADAPTER

- sender, 5/8 UNF x 1/2 inch NPT

1шт.

39

K311943

TEMPERATURE SENDER

SENDER - engine temperature

1шт.

40

K623829

PLUG

- 3/8 inch BSP

1шт.

41

K19500

GASKET

WASHER - sealing, 5/8 inch (16 mm)

1шт.

43

K207315

PIPE

TUBE - water outlet

1шт.

44

K608251

STUD

- 5/16 UNC x 3-3/8 inch

2шт.

45

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

2шт.

46

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

K260285

GASKET KIT

- cylinder head

1шт.
