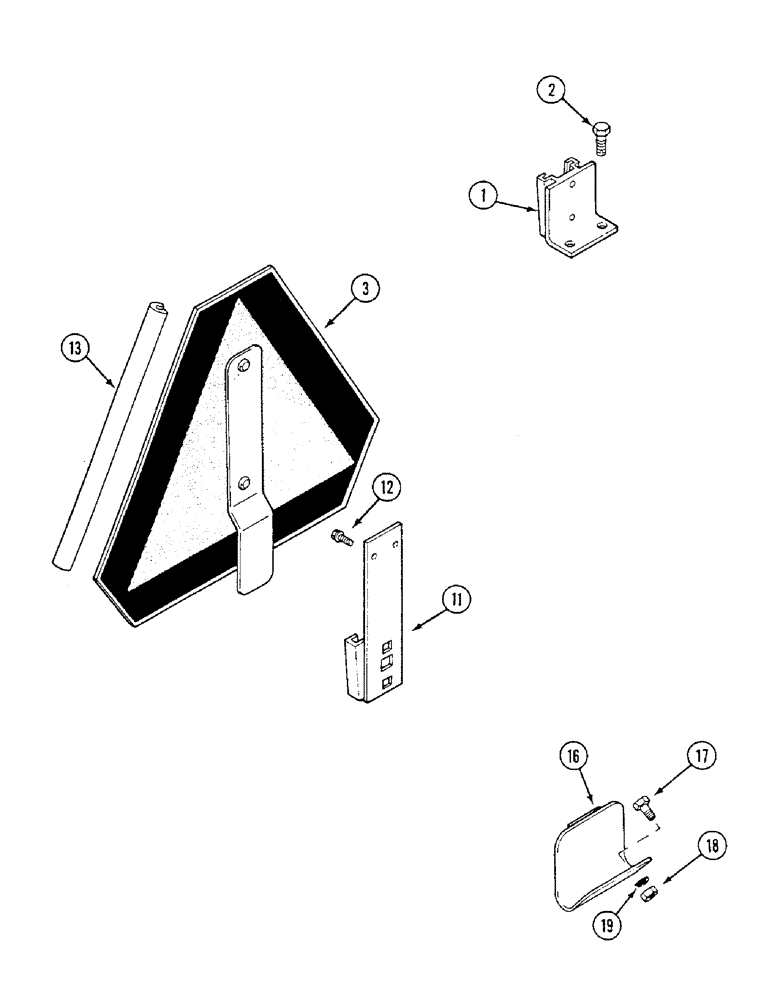

Запчасти Case IH 1294 (9-314) - SMV EMBLEM, NORTH AMERICA ONLY (09) - CHASSIS/ATTACHMENTS

1

A66815

BRACKET

- S.M.V. emblem (Without cab)

1шт.

2

280-5488

SELF-TAP SCREW,Hex Wash Hd, 5/16" x 1/2"

SCREW - self-tapping, 5/16 x 1/2 inch (Type B)

2шт.

3

A59450

WARNING SIGN

EMBLEM - S.M.V.

1шт.

11

K302725

BRACKET

- mounting, S.M.V. (Low profile special)

1шт.

12

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

13

K311878

GASKET

TRIM - emblem, 27.4 inch (Replaces A165860)

1шт.

16

K307537

BRACKET

- S.M.V. emblem (With cab)

1шт.

17

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

18

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M6

2шт.

19

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.
