Запчасти Case IH 1294 (9-310) - SUPPORTS - REINFORCED REAR FENDERS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

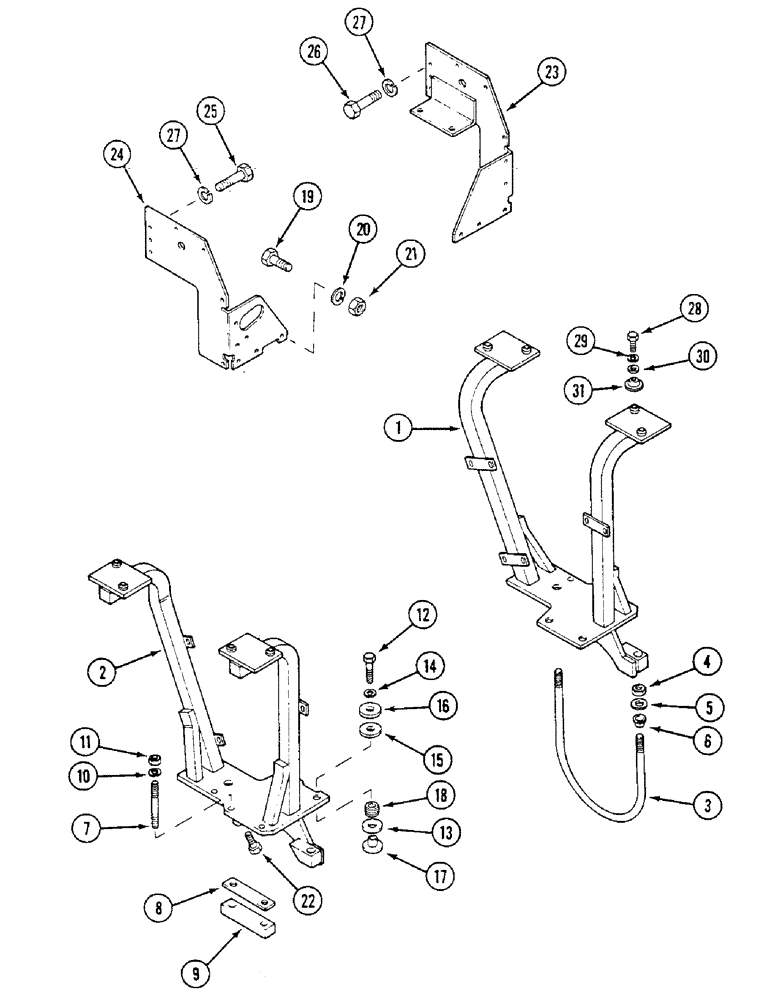

Схема запчастей Case IH 1294 - (9-310) - SUPPORTS - REINFORCED REAR FENDERS, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
2
23
13
31
5
20
11
4
27
30
3
25
24
17
7
27
18
28
9
22
8
1
26
12
10
29
21
6
16
17
15
19

Артикул

Название

Примечание

Количество

1

K309542

FENDER

SUPPORT - left-hand fender (Replaces K301701)

1шт.

2

K309544

FENDER

SUPPORT - right-hand fender (Replaces K301724)

1шт.

3

K772171

BOLT

U-BOLT - 3/4 inch UNC

2шт.

4

K607086

NUT

- 3/4 inch UNC

8шт.

5

K19476

WASHER

- 3/4 inch (19 mm)

4шт.

6

K771554

BUSHING

- nylon, U-bolt

4шт.

7

K608655

STUD

- 5/8 UNC x 4 inch, reduction housing

4шт.

8

K301787

STRIP

- nylon

2шт.

9

K301786

PACKING

SPACER - reduction housing

2шт.

10

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

4шт.

11

425-1010

NUT,5/8"-11, G5

4шт.

12

326-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 8

Rear axle Hex, 1/2"-13 x 2 1/2", G8

4шт.

13

K692050

WASHER

- special, 5/8 inch

4шт.

14

K626345

LOCK WASHER

WASHER - lock, 1/2 inch

4шт.

15

K773970

WASHER

- nylon, 1/2 inch

4шт.

16

K692049

WASHER

- special, 1/2 inch

4шт.

17

K771563

BUSHING

- nylon, adjuster

4шт.

18

K773969

ADJUSTER

- 1 inch UNF

4шт.

19

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

6шт.

20

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

21

825-1408

NUT,M8, Cl 8

6шт.

22

K771994

SCREW

BOLT - special, 1/2 UNC x 7/8 inch

4шт.

23

K309547

SUPPORT

PLATE - support, left-hand fender (Replaces K306506)

1шт.

24

K309552

SUPPORT

PLATE - support, right-hand fender (Replaces K306509)

1шт.

25

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

3шт.

26

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

9шт.

27

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

28

K603274

SCREW

BOLT - 5/8 UNC x 1-1/2 inch

8шт.

29

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

30

K691826

WASHER

- special, 5/8 inch

8шт.

31

K773988

FASTENER

SPACER - fender

8шт.

Выбрано товаров: 31
