Запчасти Case IH 1294 (9-308) - REINFORCED REAR FENDERS, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

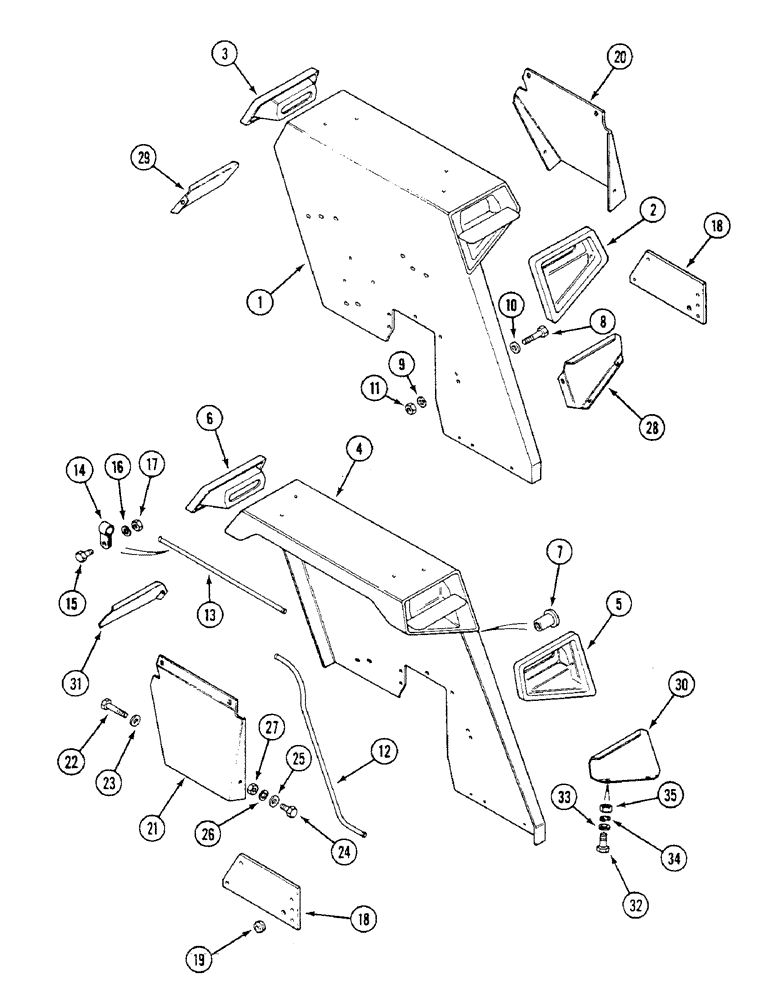

Схема запчастей Case IH 1294 - (9-308) - REINFORCED REAR FENDERS, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
18
29
34
20
32
2
16
30
1
27
18
8
14
22
23
9
12
5
25
7
6
3
26
17
4
35
15
33
10
31
13
21
28
24
11
19

Артикул

Название

Примечание

Количество

1

K301700

FENDER

- full, left-hand

1шт.

2

K300413

MOLDING

MOULDING - front, left-hand fender

1шт.

3

K300422

MOLDING

MOULDING - rear, left-hand fender

1шт.

4

K301722

FENDER

- full, right-hand

1шт.

5

K300423

MOLDING

MOULDING - front, right-hand fender

1шт.

6

K300405

MOLDING

MOULDING - rear, right-hand fender

1шт.

7

K692205

INSERT

- fender, M8

6шт.

8

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

12шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

12шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

12шт.

11

825-1408

NUT,M8, Cl 8

12шт.

12

K309546

CONDUIT

TUBE - wiring harness, rear lamp

2шт.

13

K301785

CABLE

TUBE - wiring harness, front lamp

2шт.

14

K621688

CLIP

-, Serial Range: tube-fender

8шт.

15

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

4шт.

16

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

17

825-1408

NUT,M8, Cl 8

4шт.

18

K301733

COVER

PLATE - cover

2шт.

19

K627729

GROMMET

- cover plate, 7/8 inch

2шт.

20

K301777

FENDER

SHIELD - mud, left-hand fender

1шт.

21

K301778

FENDER

SHIELD - mud, right-hand fender

1шт.

22

K650649

BOLT

- M8 x 55 mm

4шт.

23

K691987

WASHER,10.5mm ID x 30mm OD x 3.0mm Thk

- special, 8 mm

4шт.

24

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

25

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

4шт.

26

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

27

825-1408

NUT,M8, Cl 8

4шт.

28

K301780

PLATE

- front, left-hand fender

1шт.

29

K301782

PLATE

- rear, left-hand fender

1шт.

30

K301779

PLATE

- front, right-hand fender

1шт.

31

K301781

PLATE

- rear, right-hand fender

1шт.

32

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

4шт.

32

K650628

BOLT

- M6 x 20 mm

8шт.

33

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

12шт.

34

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

12шт.

35

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M6

4шт.

Выбрано товаров: 36
