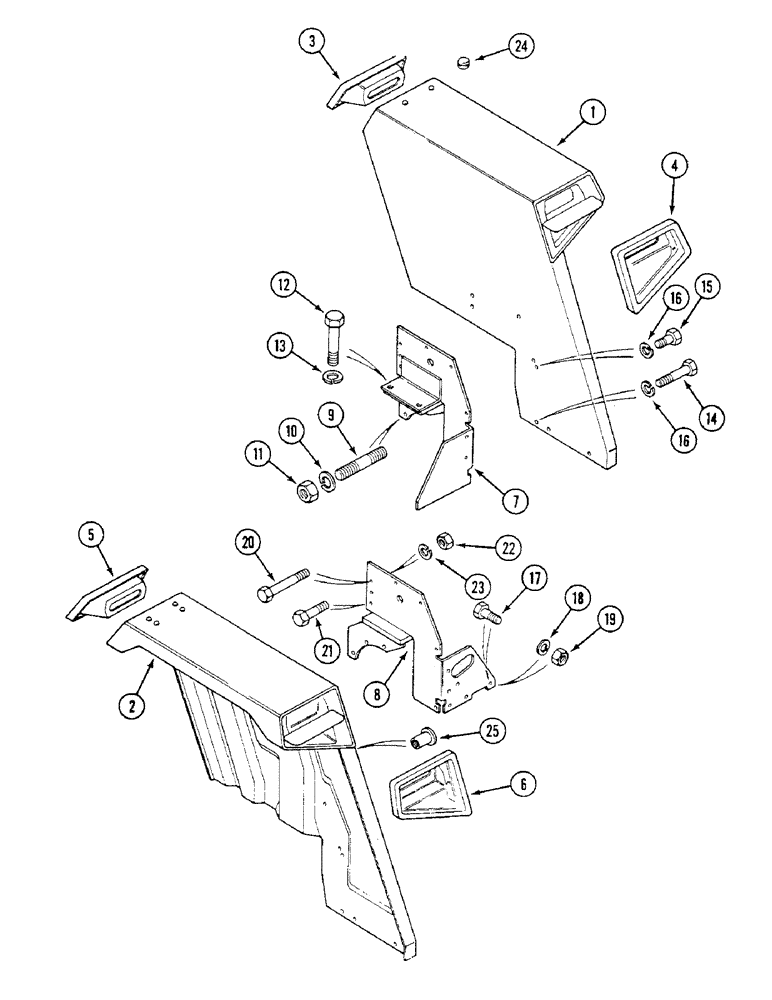

Запчасти Case IH 1294 (9-306) - STANDARD REAR FENDERS AND MOUNTINGS, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

1

K300397

FENDER

- full, left-hand

1шт.

2

K300399

FENDER

- full, right-hand

1шт.

3

K300422

MOLDING

MOULDING - rear, left-hand

1шт.

4

K300413

MOLDING

MOULDING - front, left-hand

1шт.

5

K300405

MOLDING

MOULDING - rear, right-hand

1шт.

6

K300423

MOLDING

MOULDING - front, right-hand

1шт.

7

K306457

SUPPORT

- left-hand fender

1шт.

8

K306474

SUPPORT

- right-hand fender

1шт.

9

K608426

STUD

- 1/2 UNC x 2-1/2 inch

6шт.

10

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

11

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

6шт.

12

413-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

4шт.

13

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

4шт.

14

K650646

BOLT

- M8 x 40 mm

4шт.

15

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

8шт.

16

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

17

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

6шт.

18

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

19

825-1408

NUT,M8, Cl 8

6шт.

20

K650648

BOLT

- M8 x 15 mm

1шт.

21

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

22

825-1408

NUT,M8, Cl 8

3шт.

23

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

6шт.

24

K627781

PLUG

- blanking, 7/32 inch diameter

4шт.

25

K692205

INSERT

- fender, M8

6шт.
