Запчасти Case IH 1294 (9-302) - INSTRUMENT PANEL, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS

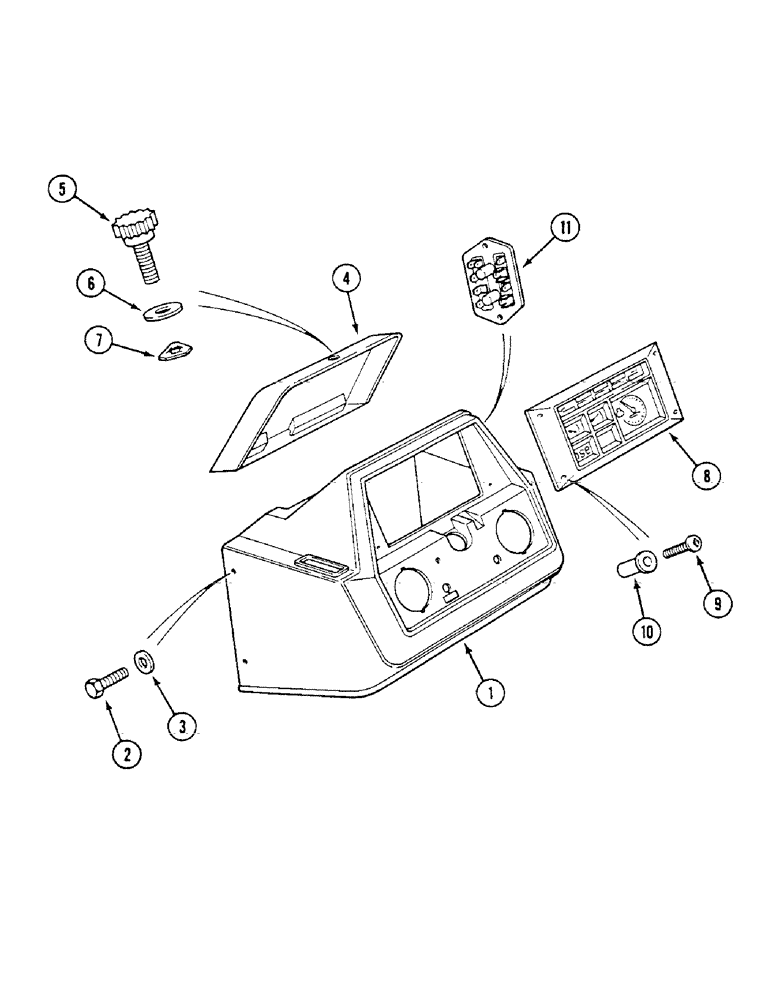

Схема запчастей Case IH 1294 - (9-302) - INSTRUMENT PANEL, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
9
4
5
3
10
11
6
7
2
8
1

Артикул

Название

Примечание

Количество

1

K307632

PANEL

- instrument (Synchromesh)

1шт.

2

K652509

SCREW,Pan, M6 x 1 x 30mm

- M6 x 30 mm

4шт.

3

K651904

WASHER

- 6 mm

4шт.

4

K307631

COVER

- instrument panel

1шт.

5

K303952

SCREW,M5 x 0.8 x 18mm, Steel

- M5, special

1шт.

6

K651903

WASHER

- special

1шт.

7

K626173

CLIP

RETAINER - screw

1шт.

8

REF

INSTRUCTION

INSTRUMENT CLUSTER, See Figure 4-52

1шт.

9

30464R1

SCREW,Cross Pan Hd, M5 x 25

- M5 x 25 mm

4шт.

10

K653092

NUT

INSERT - M5 x 25 mm

4шт.

11

REF

INSTRUCTION

FUSE BOX ASSEMBLY, See Figure 4-56

1шт.

12

K627767

GROMMET

- hand throttle, 5/8 inch

1шт.

Выбрано товаров: 12
