Запчасти Case IH 1294 (9-300) - INSTRUMENT PANEL AND SUPPORT, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

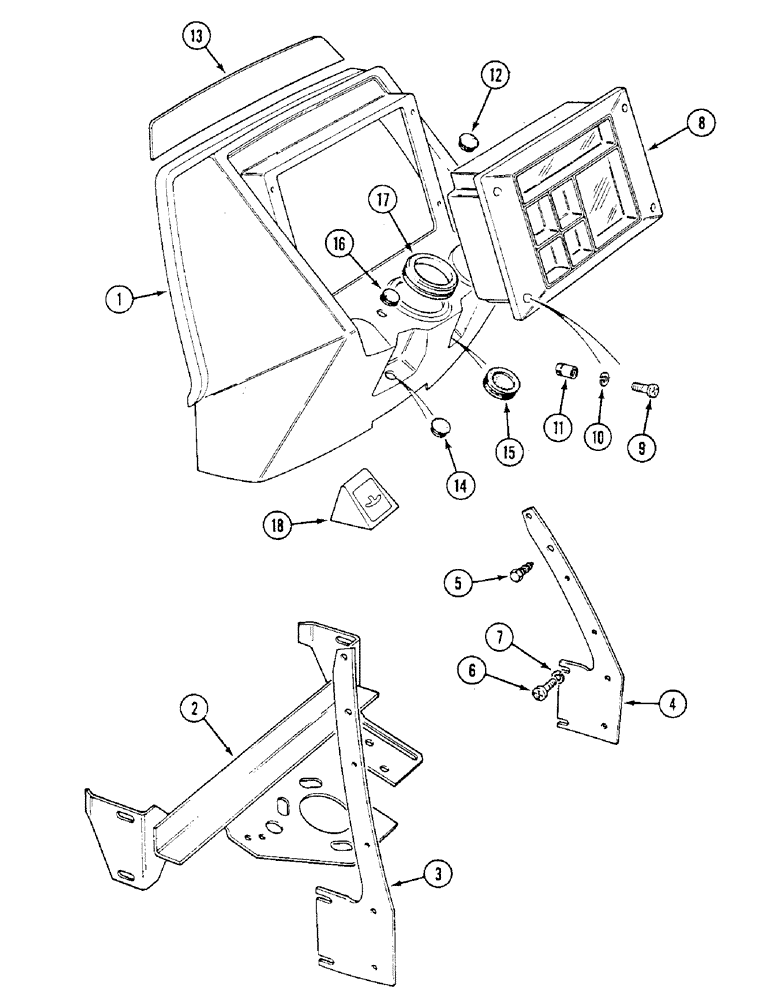

Схема запчастей Case IH 1294 - (9-300) - INSTRUMENT PANEL AND SUPPORT, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS
6
18
13
10
14
5
7
17
16
8
1
9
15
4
12
11
2
3

Артикул

Название

Примечание

Количество

1

K300774

PANEL

- instrument

1шт.

2

K304367

SUPPORT

- support, engine hood rear

1шт.

3

K304343

PANEL

SUPPORT - instrument panel, left-hand

1шт.

4

K304344

PANEL

SUPPORT - instrument panel, right-hand

1шт.

5

K624534

SELF-TAP SCREW

SCREW - special

8шт.

6

K654072

HEX SOC SCREW,Btn Hd, M8 x 1.25 x 23mm

BOLT - Phillips, M8 x 20 mm

4шт.

7

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

8

REF

INSTRUCTION

CLUSTER - instrument, See Figure 4-52

1шт.

9

K652502

SCREW,Pan, M5 x 0.8 x 16mm

- Phillips, M5 x 10 mm

4шт.

10

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

11

K652032

INSERT

- M5 x 9.5 mm

4шт.

12

K656769

RUBBER

PLUG - rubber, 19 mm, flasher/turn signal hole

1шт.

13

K304581

PANEL

EXTENSION - instrument panel

1шт.

14

K656767

GROMMET

PLUG - rubber, 16 mm, hazard switch hole

1шт.

15

K627724

GROMMET

PLUG - rubber, 1-3/16 inch, direction indicator switch hole

1шт.

16

K627742

GROMMET

PLUG - rubber, instrument panel, rubber, instrument panel

1шт.

17

K304378

COVER

- steering column

1шт.

18

K307960

DECAL

SUPPORT - stop control decal (North America only)

1шт.

Выбрано товаров: 18
