Запчасти Case IH 1294 (9-296) - ENGINE HOOD AND HINGE (09) - CHASSIS/ATTACHMENTS

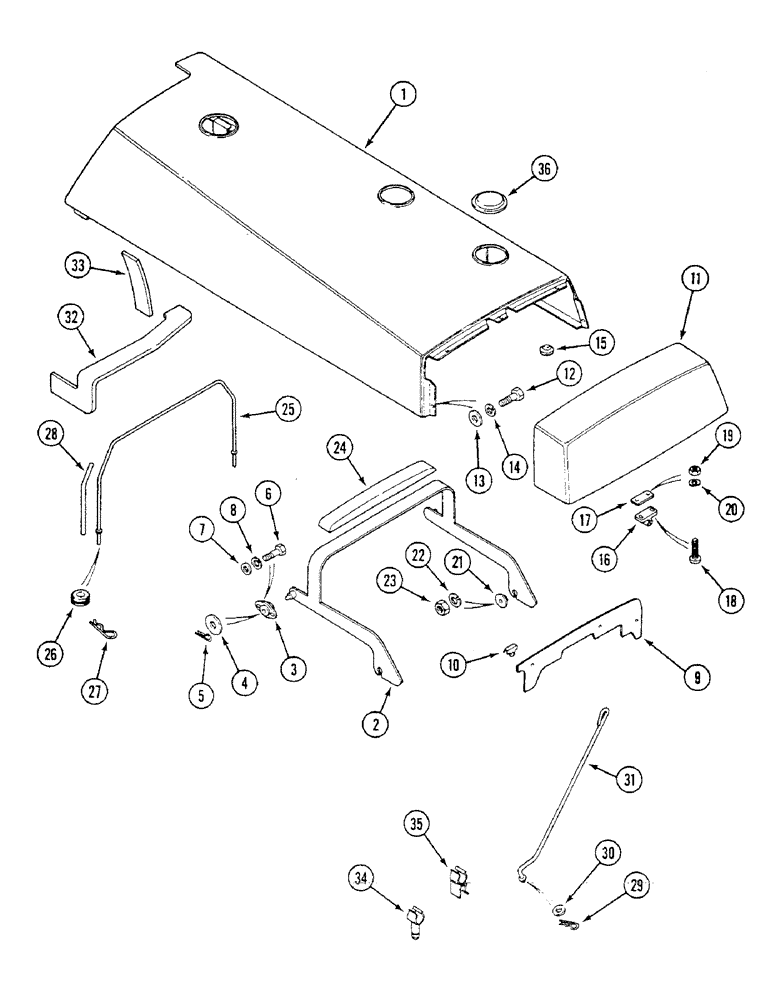

Схема запчастей Case IH 1294 - (9-296) - ENGINE HOOD AND HINGE (09) - CHASSIS/ATTACHMENTS
30
35
20
28
27
1
26
36
22
10
19
29
9
4
13
24
17
23
3
14
18
2
34
32
31
11
8
6
5
7
15
33
25
21
16
12

Артикул

Название

Примечание

Количество

1

K304961

HOOD

- engine (Without cab)

1шт.

1

K307715

HOOD

- engine (With cab)

1шт.

2

K304385

SUPPORT

MEMBER - cross

1шт.

3

K304095

LINK

BRACKET - pivot

2шт.

4

K692199

WASHER

- special, 8 mm

2шт.

5

K950865

CLIP

- retaining, 1/4 inch

2шт.

6

K650628

BOLT

- M6 x 20 mm

4шт.

7

K626662

WASHER

- 1/4 inch, 6 mm

4шт.

8

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

9

K307953

BAFFLE

- radiator (Without cab)

1шт.

9

K307946

BAFFLE

- radiator (With cab)

1шт.

10

K657166

CLIP

- retaining

3шт.

11

K956250

COVER

- front, engine

1шт.

12

K624534

SELF-TAP SCREW

SCREW - special

5шт.

13

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

5шт.

14

K626552

WASHER

- lock, 1/4 inch

5шт.

15

K916596

PLUG

- rubber

2шт.

16

K304944

LOCK

CATCH - hood

1шт.

17

K304946

PLATE

- catch

1шт.

18

K615408

SCREW,Pan, #10 - 32 x 1"

- No. 10 UNF x 1 inch

2шт.

19

K617299

LOCK NUT

- No. 10 UNF

2шт.

20

K626340

RING

WASHER - lock, 3/16 inch

2шт.

21

K205385

BUSHING

SPACER - cross member

2шт.

22

892-11010

LOCK WASHER,M10

2шт.

23

825-1410

NUT,M10, Cl 8

2шт.

24

K307943

BAFFLE

- hood

1шт.

25

K305921

GUIDE

- support

1шт.

26

K627718

GROMMET,3/8" ID x 5/8" Groove Dia

- guide, guide

2шт.

27

K38632

SPRING

CLIP - spring

2шт.

28

K311594

SLEEVE

- slider

2шт.

29

K950865

CLIP

- support rod

1шт.

30

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

31

K309817

SUPPORT

ROD - support, 435 mm

1шт.

31

K307958

STAY

ROD - support, 330 mm

1шт.

32

K307831

STRIP

- sealing, rear (With cab)

1шт.

33

K307834

SEALING STRIP

- sealing, side (With cab)

1шт.

34

K657121

CLIP

- support rod (With cab)

1шт.

35

K657161

CLIP

- support rod (Without cab)

1шт.

36

K304967

INSERT

- hood opening

1шт.

Выбрано товаров: 39
