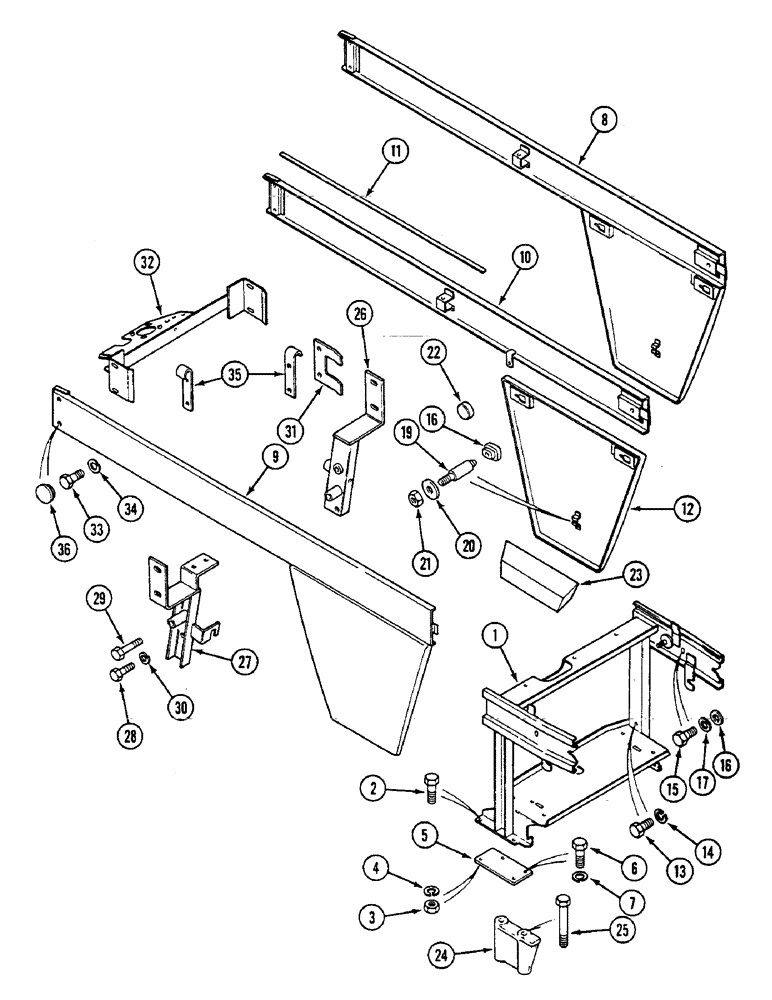

Запчасти Case IH 1294 (9-294) - ENGINE HOOD SUPPORT FRAME (09) - CHASSIS/ATTACHMENTS

1

K307810

FRAME

- support, hood

1шт.

2

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

3

425-106

NUT,3/8"-16, Cl 5

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

5

K304311

PLATE

- cover support

2шт.

6

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

(Without cab) Hex, 3/8"-16 x 1", G5, Full Thd

4шт.

7

492-11038

LOCK WASHER,3/8"

4шт.

8

K306583

FRAME

WAISTRAIL AND PANEL - left-hand, (Without cab)

1шт.

8

K306585

SLIDE

WAISTRAIL AND PANEL - left-hand, (With cab) (without air conditioning)

1шт.

9

K306584

SLIDE

WAISTRAIL AND PANEL - right-hand, (Without cab)

1шт.

9

K306586

SHROUD

WAISTRAIL AND PANEL - right-hand, (With cab)

1шт.

10

K307851

FRAME

WAISTRAIL - left-hand, (With cab) (With air conditioning)

1шт.

11

K304909

STRIP

- nylon

2шт.

12

K308439

PANEL

- left-hand, (With cab) (With air conditioning)

1шт.

13

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

15

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

2шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

17

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

18

K305819

RUBBER

MOUNT - rubber

1шт.

19

K207518

STUD

- side panel, M8 (With cab

1шт.

20

K626916

WASHER

- special, 8 mm

1шт.

21

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

1шт.

22

K305758

RUBBER

BUFFER - rubber, side special

2шт.

23

K308242

PLATE

SEAL - foam, side panel

2шт.

24

K301195

SUPPORT

SPACER - frame (With cab)

2шт.

25

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

4шт.

26

K307846

SUPPORT

- rear, left-hand (With cab)

1шт.

27

K307847

SUPPORT

- rear, right-hand (With cab)

1шт.

28

K602902

SCREW

BOLT - 3/8 UNC x 3/4 inch

2шт.

29

K600406

BOLT

- special, 3/8 UNC x 1-3/4 inch

2шт.

30

492-11038

LOCK WASHER,3/8"

4шт.

31

K307126

GUIDE

PLATE - guide (With cab)

2шт.

32

K304367

SUPPORT

- rear (Without cab)

1шт.

33

K654072

HEX SOC SCREW,Btn Hd, M8 x 1.25 x 23mm

BOLT - M8 x 20 mm

4шт.

34

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

35

K307033

NUT

PLATE - nut, M8

2шт.

36

K627992

PLUG

- plastic, 5/8 inch diameter

4шт.
