Запчасти Case IH 1294 (9-292) - ENGINE FRONT HOOD (09) - CHASSIS/ATTACHMENTS

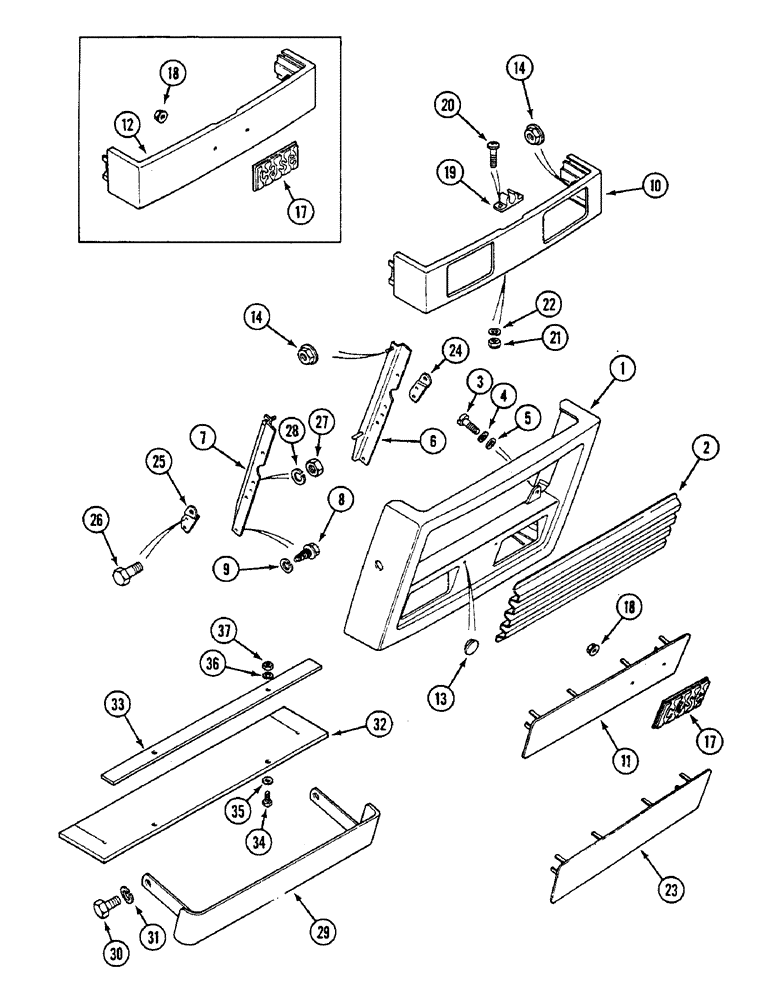

Схема запчастей Case IH 1294 - (9-292) - ENGINE FRONT HOOD (09) - CHASSIS/ATTACHMENTS
19
6
4
7
14
27
23
17
30
13
37
17
14
3
18
33
28
21
20
9
1
32
11
26
2
35
22
36
5
10
24
29
25
18
12
34
31
8

Артикул

Название

Примечание

Количество

1

K300000

FRAME

- grille, lower

1шт.

2

K308494

GUARD

GRILLE - lower

1шт.

3

K652504

SCREW

- M5 x 16 mm

4шт.

4

K651846

WASHER, LOCK

WASHER - lock, 5 mm

4шт.

5

K626946

WASHER

- 5 mm

4шт.

6

K304426

SUPPORT

- left-hand

1шт.

7

K304425

SUPPORT

- right-hand

1шт.

8

K624534

SELF-TAP SCREW

SCREW - special, self-tapping

6шт.

9

K626552

WASHER

- lock, 1/4 inch

6шт.

10

K311364

FRAME

RAIL - waist, front (Lamps in waist rail), Order also item 17

1шт.

11

K309413

PLATE

- blanking, grille

1шт.

12

K304347

FRAME

RAIL - waist, front

1шт.

13

K627874

PLUG

- headlamp adjusters

4шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

4шт.

17

321-4739

EMBLEM

- Case

1шт.

18

K659151

PUSH-ON NUT

- 1/4 inch

2шт.

19

K304945

FASTENER

CATCH - cover top

1шт.

20

K614946

SCREW,Pan, #10 - 32 x 3/4"

- No. 10 UNF x 3/4 inch

2шт.

21

K617299

LOCK NUT

- self-locking, No., 10 UNF

2шт.

22

K626340

RING

WASHER - lock, 10

2шт.

23

K302152

PLATE

- grille

1шт.

24

K302149

BRACKET

- left-hand head lamp

1шт.

25

K302150

BRACKET

- right-hand head lamp

1шт.

26

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

4шт.

27

825-1408

NUT,M8, Cl 8

4шт.

28

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

29

K301305

PLATE

- main frame

1шт.

30

K603302

SCREW

BOLT - 5/8 UNC x 1 inch

2шт.

31

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

2шт.

32

K308237

BAFFLE

- rubber, main frame

1шт.

33

K308238

BAFFLE

STRIP - clamping, baffle

1шт.

34

614-5016

BOLT,Hex, M5 x 0.8 x 16mm, Cl 8.8, Full Thd

2шт.

35

K651776

WASHER

- 5 mm

2шт.

36

892-11005

LOCK WASHER,M5

WASHER, LOCK, M5

2шт.

37

825-1405

NUT,M5, Cl 8

2шт.

Выбрано товаров: 35
