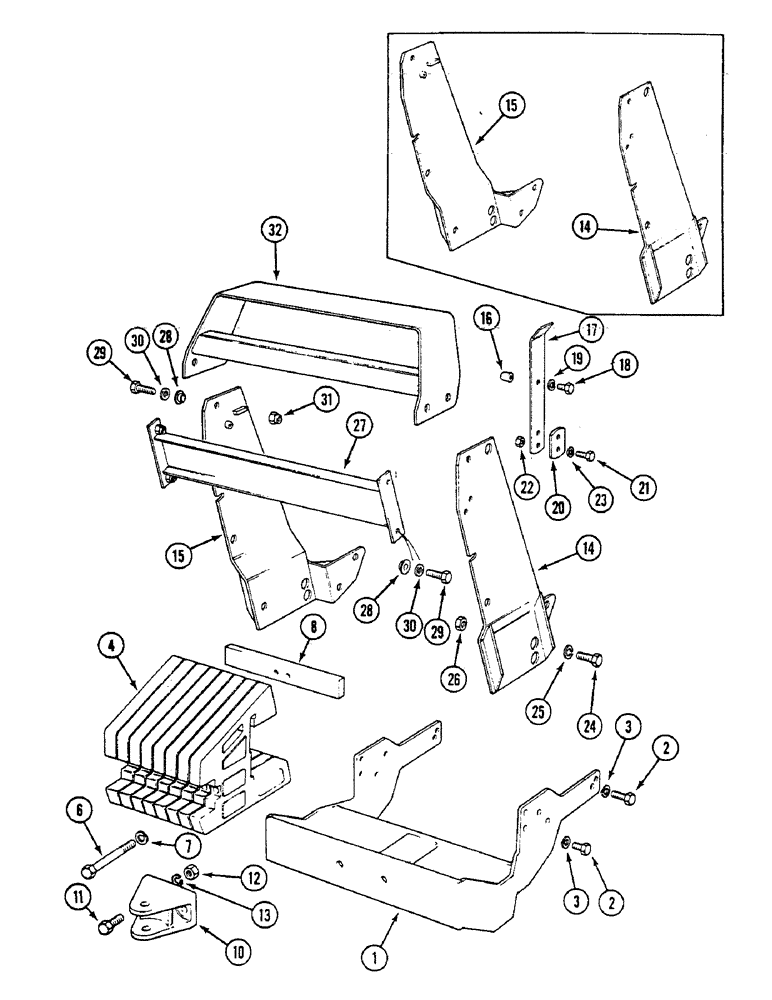

Запчасти Case IH 1294 (9-288) - WEIGHTS, FRAME, TOW BRACKET, RADIATOR GUARD, TRACTORS WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

UK5713

FRAME

ATTACHMENT - ballast, Includes: Ref. 1 - 3

1шт.

1

K306871

FRAME - support

1шт.

2

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

6шт.

3

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

UK5718

KIT

WEIGHT ATTACHMENT - ballast, Includes: Ref. 4 - 8

1шт.

4

K306858

WEIGHT

- ballast

8шт.

6

K650833

BOLT

- M16 x 330 mm

2шт.

7

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

4шт.

8

K306859

BAR

- locking

1шт.

A169111

WEIGHT

- front end (North America only) (Package of 6 weights. Also order 3 hardware packages A177102)

1шт.

A177102

KIT

HARDWARE KIT - weight (North America only)

1шт.

UK5721

KIT

BRACKET ATTACHMENT - tow, Includes: Ref. 10 - 13

1шт.

10

K207651

CLEVIS

BRACKET - tow

1шт.

11

K650726

BOLT

- M16 x 55 mm

2шт.

12

829-1416

NUT,M16, Cl 10

- hex, 16 mm - 2.0, class 10

2шт.

13

892-11016

LOCK WASHER,16.4mm ID x 27.4mm OD x 5mm Thk

WASHER - lock, 16 mm

2шт.

14

K305149

LARGE PLATE

PLATE - side, left-hand, (Use with K305150) later tractors

1шт.

15

K305150

LARGE PLATE

PLATE - side, right-hand, (Use with K305149) later tractors

1шт.

14

K305070

PLATE

- side, left-hand, (Use with K305083) early tractors

1шт.

15

K305083

PLATE

- side, right-hand, (Use with K305070) early tractors

1шт.

16

K305085

STOP

PIN - stop

1шт.

17

K305088

STOP

STRAP - spring

1шт.

18

K650657

BOLT

- M10 x 14 mm

1шт.

19

892-11010

LOCK WASHER,M10

1шт.

20

K948166

SPRING

PLATE - strap

1шт.

21

413-618

BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5

2шт.

22

425-106

NUT,3/8"-16, Cl 5

2шт.

23

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

24

413-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5

- hex, 5/8 NC x 1-3/4 inch

6шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

6шт.

26

425-1010

NUT,5/8"-11, G5

6шт.

27

K305064

CHANNEL

BAR - tie

1шт.

28

K305087

BUSHING

- plastic

4шт.

29

413-826

BOLT,Hex, 1/2" - 13 x 1-5/8", Gr 5

- hex, 1/2 NC x 1-5/8 inch

6шт.

30

K626686

WASHER

- flat, 1/2 inch (13 mm), 1/2 inch

6шт.

31

231-1448

NUT,1/2"-13, GB

- hex, self-locking, 1/2 inch NC

2шт.

32

K305065

GUARD

- hood noose

1шт.
