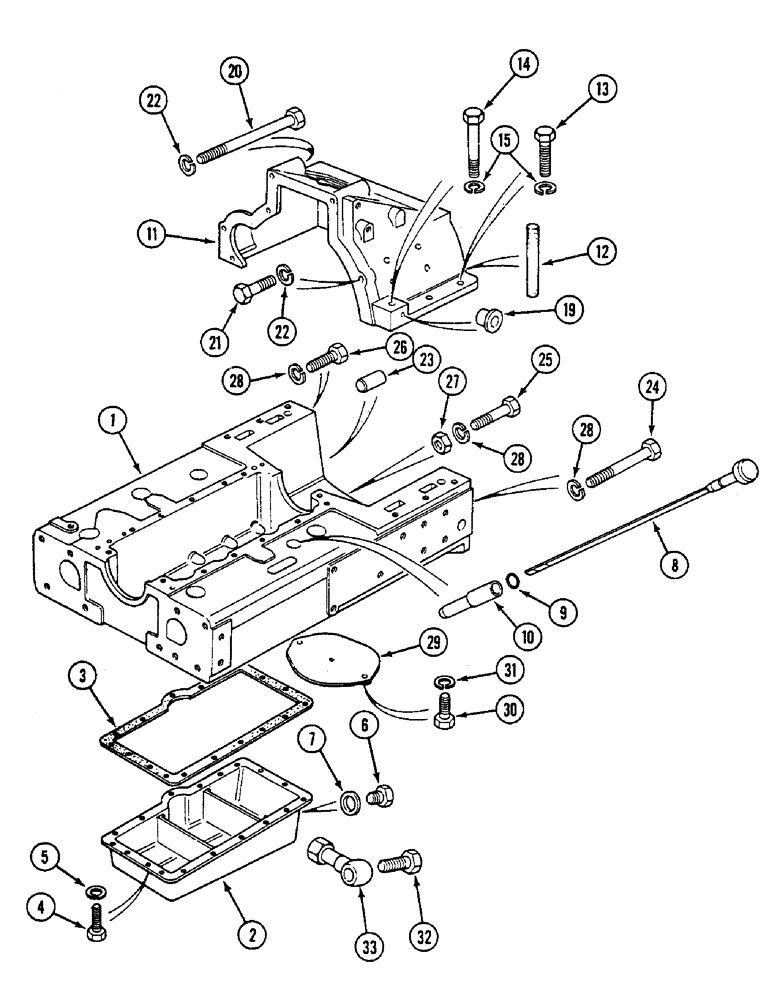

Запчасти Case IH 1294 (9-282) - FRONT MAIN FRAME AND COVERS (09) - CHASSIS/ATTACHMENTS

1

K955200

FRAME

- main, front

1шт.

2

K956548

SUMP

COVER - sump

1шт.

3

K906429

GASKET

- sump

1шт.

4

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

18шт.

5

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

18шт.

6

K623849

PLUG

- sump drain, 1/2 inch BSP

1шт.

7

K15143

WASHER

- sealing, 7/8 inch (22 mm)

1шт.

8

K964772

DIPSTICK

- engine sump

1шт.

9

K625400

O-RING,0.07" Thk x 0.239" ID

- 1/4 inch (6 mm) ID

1шт.

10

K948224

SLEEVE

- engine dipstick

1шт.

11

K207321

CLUTCH

HOUSING - clutch

1шт.

12

K200717

SEAL

- clutch housing 1/2 x 6 inch

2шт.

13

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

5шт.

14

K600814

BOLT

- 1/2 UNC x 3 inch

1шт.

15

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

6шт.

19

K628087

PLUG

- plastic, 3/8 inch (10 mm) timing peg

1шт.

20

K600425

BOLT

- 3/8 UNC x 5-1/4 inch

2шт.

21

K600408

BOLT,3/8" x 2"

- 3/8 UNC x 2 inch

1шт.

22

492-11038

LOCK WASHER,3/8"

3шт.

23

K621826

PIN

DOWEL - 5/8 x 1-1/8 inch

2шт.

24

K600615

BOLT

- 7/16 UNC x 3-1/4 inch

4шт.

25

K600604

SCREW

BOLT - 7/16 UNC x 1-3/4 inch

4шт.

26

K603006

SCREW

BOLT - 7/16 UNC x 1-3/8 inch

2шт.

27

280717

NUT,7/16"-14, G5

4шт.

28

492-11044

LOCK WASHER,7/16"

WASHER, LOCK, 7/16"

10шт.

29

K956333

COVER

- clutch housing

1шт.

30

413-410

BOLT,Hex, 1/4" - 20 x 5/8", Gr 5

- hex, 1/4 NC x 5/8 inch

2шт.

31

K626662

WASHER

- 1/4 inch (6 mm)

2шт.

32

K965416

BOLT

BOLT - special, 1/2 inch BSP (MFD)

1шт.

33

K965413

PIPE

EXTENSION - sump drain (MFD)

1шт.
