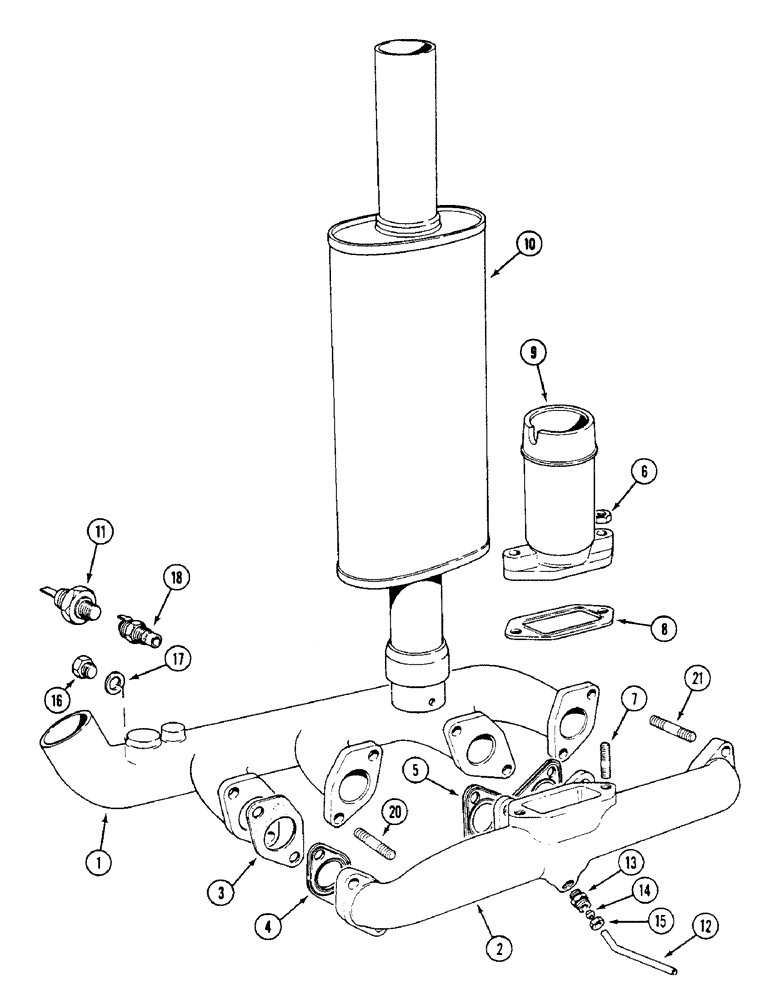

Запчасти Case IH 1294 (2-08) - MANIFOLDS AND MUFFLER (02) - ENGINE

1

K201352

MANIFOLD

- intake

1шт.

2

K957519

MANIFOLD ASSY

MANIFOLD - exhaust

1шт.

3

K921730

MANIFOLD GASKET

- intake manifold

4шт.

4

K210376

MANIFOLD GASKET,1.7mm Thk

- exhaust manifold

2шт.

5

K210375

MANIFOLD GASKET,1.7mm Thk

- exhaust manifold

1шт.

6

425-106

NUT,3/8"-16, Cl 5

17шт.

7

K608239

STUD

- 3/8 UNC x 1-15/16 inch

2шт.

8

K68327

GASKET

-, Serial Range: manifold-flange

1шт.

9

K204220

FLANGE

- exhaust

1шт.

10

K302951

MUFFLER

- exhaust, (Without cab) (Not North America)

1шт.

10

K302952

MUFFLER

- exhaust, 47-3/4inch (Without cab) (North America only)

1шт.

10

K302952

MUFFLER

- exhaust, (With cab)

1шт.

11

1983233C1

RESTRICTION SWITCH

SWITCH - restriction, air cleaner

1шт.

12

K928668

PIPE,0.25" OD x 14" L

- exhaust manifold drain

1шт.

13

K626051

FITTING

CONNECTOR - 1/8 inch BSP

1шт.

14

K622402

FERRULE

SLEEVE - 1/4 inch

1шт.

15

K617421

PIPE UNION NUT

- 1/8 inch BSP

1шт.

16

K619528

PLUG

- oil return port, 7/8 inch UNF

1шт.

17

K626784

WASHER,23.24mm ID x 33.34mm OD x 2.34mm Thk

- sealing

1шт.

18

K928523

GLOW PLUG

THERMOSTART - fue, (CAV 1854102)

1шт.

20

K608237

STUD

- inlet manifold, 3/8 UNC x 1-3/4 inch

2шт.

20

K608214

STUD

- inlet and exhaust manifold, 3/8 UNC x 2 inch

4шт.

21

K608203

STUD

- inlet manifold, 3/8 NC x 1-7/16 inch

8шт.

21

K608216

STUD

- exhaust manifold, 3/8 UNC x 1-3/8 inch

1шт.

22

A135428

ARRESTER

ARRESTOR - spark

1шт.

23

A135474

CLAMP

- pipe

1шт.

24

A176173

ADAPTER

ADAPTOR - manifold

1шт.
