Запчасти Case IH 1294 (9-274) - SELECTIVE SENSING - SHAFT ASSEMBLY (09) - CHASSIS/ATTACHMENTS

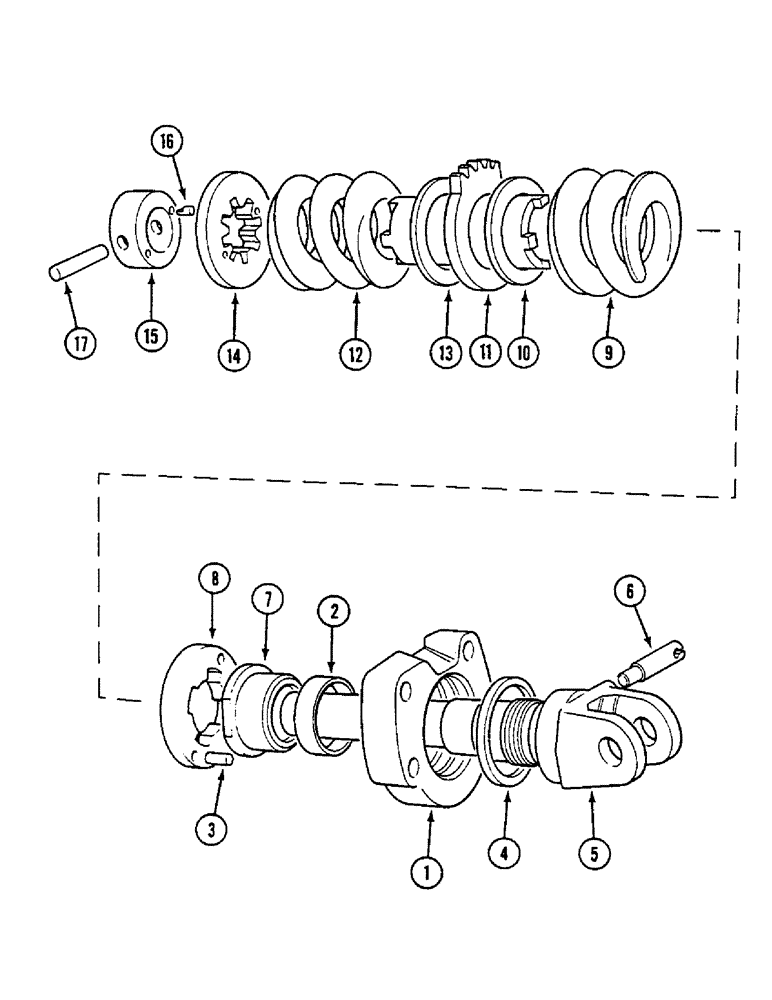

Схема запчастей Case IH 1294 - (9-274) - SELECTIVE SENSING - SHAFT ASSEMBLY (09) - CHASSIS/ATTACHMENTS
3
12
2
8
15
9
11
4
10
14
6
1
13
16
7
5
17

Артикул

Название

Примечание

Количество

K947303

SHAFT

ASSEMBLY - sensing unit, Includes: Ref. 1 - 17

1шт.

1

K964912

PLATE

ASSEMBLY - end, Includes: Ref. 2 & 3

1шт.

2

K621423

BUSHING

- sleeve

1шт.

3

K940031

PIN

DOWEL - 1/4 x 3/4 inch

2шт.

4

K623460

WIPER

SEAL - wiper, 2-1/2 inch (64 mm) ID

1шт.

5

K929808

SHAFT

- sensing

1шт.

6

K940047

BRACKET

SUPPORT - cable, inner

1шт.

7

K940035

SLEEVE

- shaft

1шт.

8

K947302

WASHER

- thrust

1шт.

9

K928315

SPRING

- 2 inch (51 mm) ID

1шт.

10

K928388

SHIM

- 0.003 inch (0.08 mm)

1шт.

10

K928389

SHIM

- 0.007 inch (0.18 mm)

1шт.

10

K928390

SHIM

- 0.015 inch (0.38 mm)

1шт.

11

K940036

SUPPORT

- spring

1шт.

12

K928314

SPRING

- 1-3/4 inch (44 mm) ID

1шт.

13

K928392

SHIM

- 0.003 inch (0.08 mm)

1шт.

13

K928393

SHIM

- 0.007 inch (0.18 mm)

1шт.

13

K928394

SHIM

- 0.015 inch (0.38 mm)

1шт.

14

K940039

WASHER

- thrust, 0.373 inch (9.47 mm)

1шт.

14

K940040

WASHER

- thrust, 0.365 inch (9.27 mm)

1шт.

14

K940041

WASHER

- thrust, 0.357 inch (9.07 mm)

1шт.

15

K947867

COLLAR

ASSEMBLY, Includes: Ref. 16

1шт.

16

K940043

PIN

DOWEL - locating

2шт.

17

37-1636

DOWEL,3/8" x 2 1/4"

RING - retaining, 3/8 x 2-1/4 inch

1шт.

Выбрано товаров: 24
