Запчасти Case IH 1294 (9-268) - TOP LINK (09) - CHASSIS/ATTACHMENTS

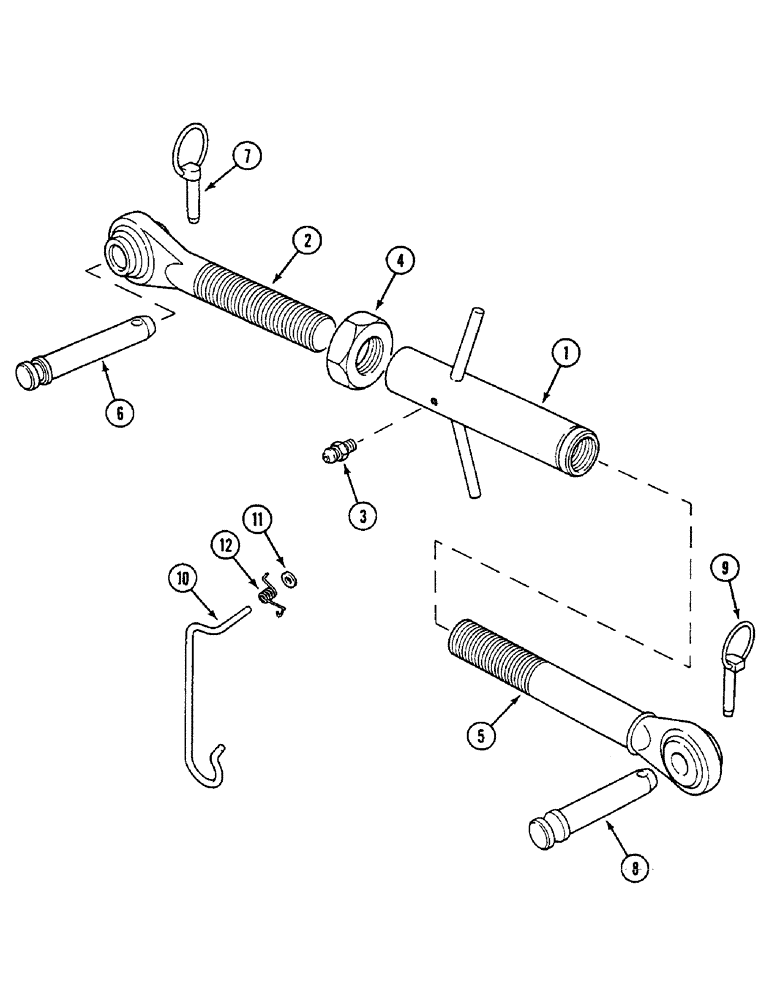

Схема запчастей Case IH 1294 - (9-268) - TOP LINK (09) - CHASSIS/ATTACHMENTS
2
9
11
7
5
1
8
12
4
10
6
3

Артикул

Название

Примечание

Количество

1

K920800

TURNBUCKLE

BUCKLE - turn, 1-1/4 inch BSF

1шт.

2

K920798

BALL

SCREW ASSEMBLY - ball, tractor end, 8 inch, right-hand

1шт.

3

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

1шт.

4

K19448

LOCK NUT

- lock, 1-1/4 inch BSF, lock, 1-1/4 inch BSF

1шт.

5

K964863

SHAFT

SCREW - 15 inch left hand thread

1шт.

6

K919725

PIN,19.05mm OD x 111.13mm L

- link, sensing unit

1шт.

7

K210316

LINCH PIN

PIN ASSEMBLY - linch (Replaces K66408)

1шт.

8

K903981

HITCH PIN

PIN - link, category 1

1шт.

8

K65690

HITCH PIN

PIN - link, category 2

1шт.

9

1328218C1

LINCH PIN,11mm OD

- quick attachable (Replaces K920359)

1шт.

10

K303358

LATCH

HOOK - top link stowage (With cab)

1шт.

11

K692198

WASHER

- hook retaining

1шт.

12

K658401

SPRING

- hook

1шт.

Выбрано товаров: 13
