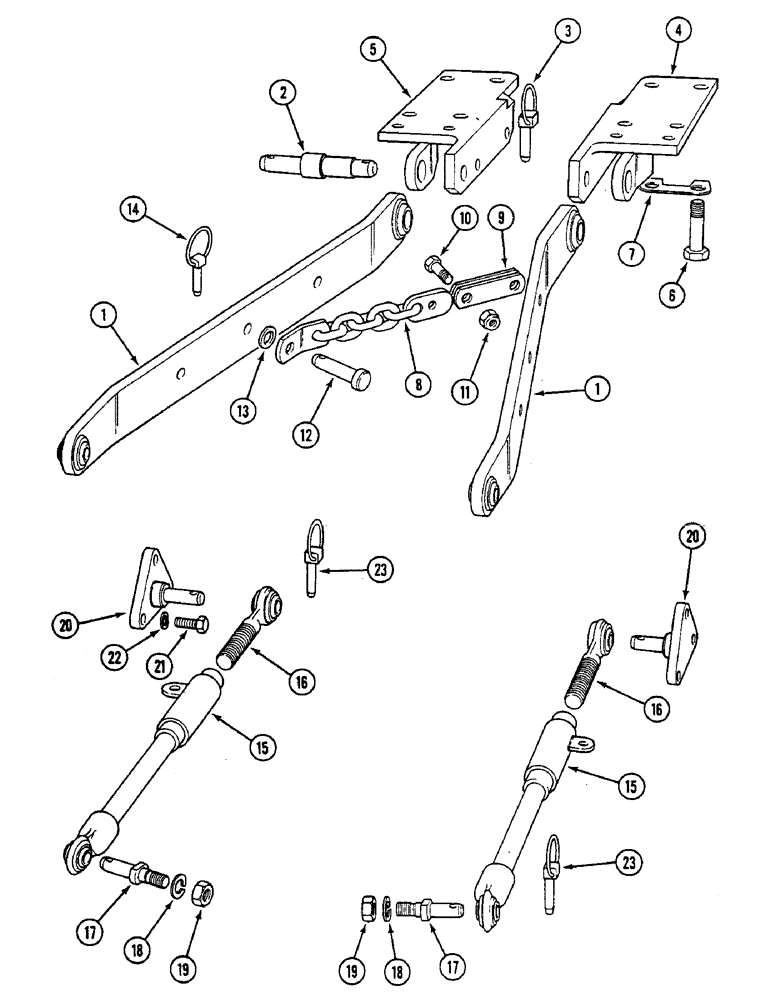

Запчасти Case IH 1294 (9-266) - LOWER LINKS AND STABILIZER BARS (09) - CHASSIS/ATTACHMENTS

1

K923698

LINK

- lower, 3/8-1/2 inch (978 mm)

2шт.

2

K922634

PIN,31.75mm OD x 182.56mm L

- pivot, lower link

2шт.

3

1328218C1

LINCH PIN,11mm OD

- quick attachable (Replaces K920359)

4шт.

4

K921559

BRACKET

- hitch, right-hand

1шт.

5

K921558

BRACKET

- hitch, left-hand

1шт.

6

K601410

BOLT

- 3/4 UNC x 3 inch

8шт.

6

K601411

BOLT

- 3/4 UNC x 3-1/4 inch

4шт.

7

K913121

WASHER

- tab

2шт.

8

K946104

CHAIN (AG)

CHECK, Includes; Ref. 9 - 11

2шт.

9

K924022

PLATE

- adjusting

2шт.

10

K600804

BOLT

- 1/2 UNC x 1-3/4 inch

1шт.

11

K607462

NUT

- self-locking, 1/2 inch UNC

1шт.

12

K946108

HEADED PIN

PIN ASSEMBLY - check chain, Includes: Ref. 13

2шт.

13

K19476

WASHER

- 3/4 inch (19 mm)

2шт.

14

3053363R91

LINCH PIN,32mm OD

PIN - linch (Replaces K915678)

2шт.

15

K954647

TIE-ROD,8.125" L

HOUSING - ball

1шт.

16

K914993

END

HOUSING - ball, front

1шт.

17

K907008

PIN

- lower link

2шт.

18

492-11015

WASHER - lock, 3/4 inch

2шт.

19

425-1012

NUT,3/4"-10, G5

- hex, 3/4 inch NC

2шт.

20

K922662

PLATE

BRACKET - stabilizer, standard clearance

2шт.

20

K922660

PLATE

BRACKET - left-hand (High clearance)

1шт.

20

K922658

PLATE

BRACKET - right-hand (High clearance)

1шт.

21

413-822

BOLT,Hex, 1/2" - 13 x 1-3/8", Gr 5

- hex, 1/2 NC x 1-3/8 inch

6шт.

22

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

6шт.

23

1328218C1

LINCH PIN,11mm OD

- quick attachable

4шт.
