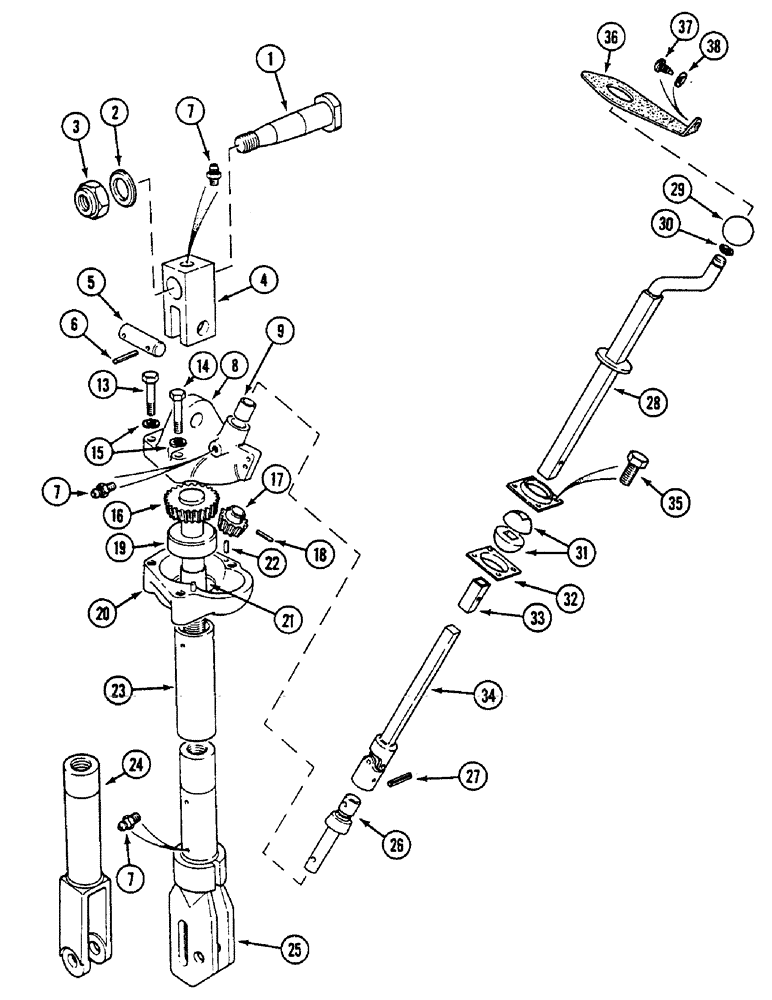

Запчасти Case IH 1294 (9-262) - LEVELING LEVER, TRACTORS WITH CAB (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
K914191
PIN
BOLT - 3/4 inch UNC
1шт.
2
K19476
WASHER
- 3/4 inch (19 mm)
1шт.
3
K607446
NUT
- self-locking, 3/4 inch UNC
1шт.
REF
INSTRUCTION
LEVER ASSEMBLY -leveling (With standard nut) Order components, Includes: Ref. 4 - 26
1шт.
K204878
LEVER
ASSEMBLY - leveling (With slotted nut), Includes: Ref. 4 - 26
1шт.
4
K921914
FORK
END - fork, ramshaft
1шт.
5
K948353
PIVOT PIN
PIN - pivot, 5/8 x 2-1/4 inch
1шт.
6
438-11214
LOCK PIN,4.76mm OD x 22.23mm L, Slotted
Pin, 3/16" x 7/8", Slotted
2шт.
7
219-8
LUBE NIPPLE,1/4" - 28 NPTF
NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg
3шт.
8
K962691
COVER
CAP ASSEMBLY - gear housing, Includes: Ref. 9
1шт.
9
K621340
BUSHING
- lever
2шт.
13
K600405
BOLT
- 3/8 UNC x 1-5/8 inch
2шт.
14
K600407
BOLT
- 3/8 UNC x 1-7/8 inch
2шт.
15
492-11038
LOCK WASHER,3/8"
4шт.
16
K924725
SHAFT
GEAR - bevel, with shaft
1шт.
17
K919769
GEAR
PINION - bevel
1шт.
18
K623946
PIN
- roll, 5/32 x 15/16 inch
1шт.
19
K19187
THRUST BEARING
BEARING - thrust
1шт.
20
K962975
HOUSING
ASSEMBLY - gear, Includes: Ref. 21 - 23
1шт.
21
K621339
BUSHING
- gear housing
2шт.
22
K32063
PIN
DOWEL - 3/16 x 1/2 inch
2шт.
23
K940510
TUBE,1.75" ID x 6.187" L
- shaft, 1-3/4 x 6-1/4 inch
1шт.
24
K940614
CLEVIS
NUT - adjusting, standard
1шт.
25
K946081
ROD
NUT - adjusting, slotted
1шт.
26
K954077
SHAFT
- bevel pinion
1шт.
27
K691356
PIN
- roll, 5 x 25 mm
1шт.
28
K303674
SPINDLE
AND HANDLE
1шт.
29
K919763
BUTTON
KNOB - lever
1шт.
30
A10916
RING, SNAP
RING - retaining
1шт.
31
K303520
BALL JOINT
BALL - nylon, half
2шт.
32
K303518
CASE
SOCKET - ball
2шт.
33
K303531
SLEEVE
BUSHING - plastic
1шт.
34
K303648
ARM
SPINDLE - with universal joint
1шт.
35
K653339
SCREW,Hex, M5 x 0.8 x 12mm
- M5 x 12 mm
4шт.
36
K303814
RUBBER
STRAP - retaining, handle
1шт.
37
K652753
SCREW
- M8 x 16 mm
1шт.
38
K303630
BUSHING
WASHER - 8 mm
1шт.
Выбрано товаров: 37
