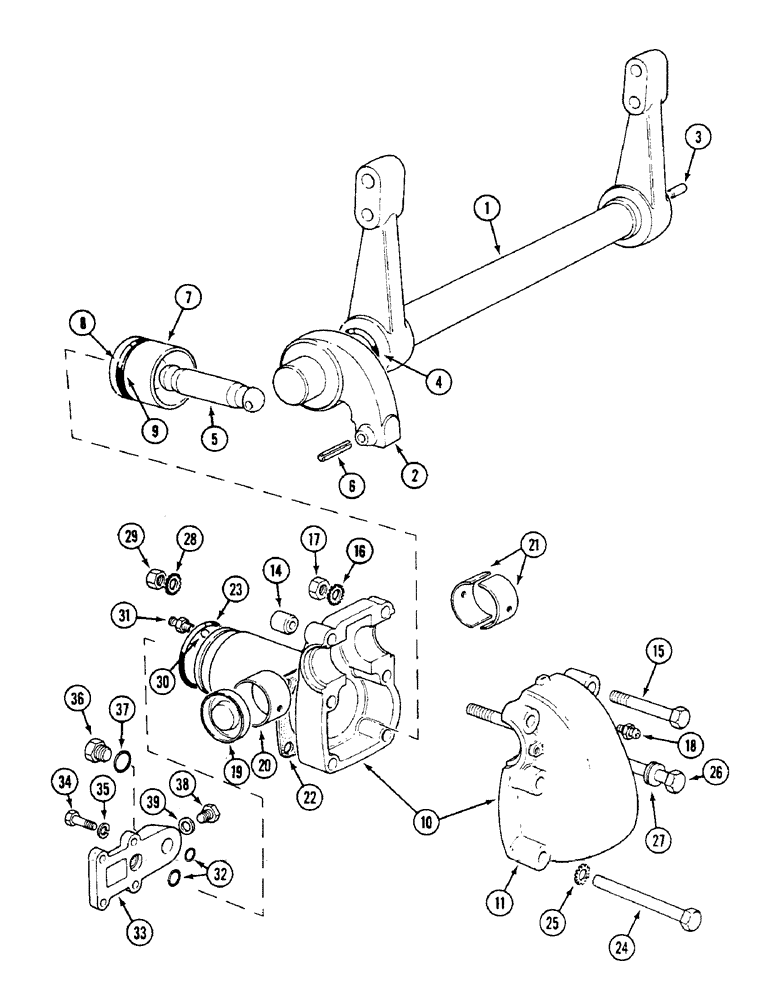

Запчасти Case IH 1294 (8-258) - RAMSHAFT AND CYLINDER (08) - HYDRAULICS

1

K921919

SHAFT

RAMSHAFT AND LEVERS, Includes: Ref. 2 & 3

1шт.

2

K913762

ARM

LEVER - ram

1шт.

3

K621807

PIN

DOWEL - 5/16 x 1/2 inch

1шт.

4

238-5331

O-RING,0.21" Thk x 2.225" ID, -331, Cl 5, 75 Duro

- 2 inch (51 mm) ID

1шт.

5

K913774

ROD

- centering

1шт.

6

138-141

LOCK PIN,1/4" x 1 7/8", Slotted

PIN, 1/4" x 1 7/8", Slotted

1шт.

7

K913769

PISTON

- standard size

1шт.

7

K946371

PISTON

- oversize 0.020 inch (0.51 mm)

1шт.

8

238-6338

O-RING,0.21" Thk x 3.1" ID, -338, Cl 6, 90 Duro

1шт.

9

K623567

RING,79.09mm ID x 89.18mm OD x 2.64mm Thk

- backup

1шт.

10

K207230

CYLINDER

BODY AND COVER, Includes: Ref. 11

1шт.

11

NSS

NOT SOLD SEPARAT

COVER

1шт.

14

K924685

RUBBER

RESTRICTOR - cylinder body

1шт.

15

K608865

BOLT

- 5/8 UNC x 4-1/2 inch grade "V"

2шт.

16

K11516

WASHER

- lock, 5/8 inch

2шт.

17

425-1010

NUT,5/8"-11, G5

2шт.

18

219-8

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, , straight, taper 1/4"-28 NPT x .54" lg

2шт.

19

K913773

PLUG

DISC - sealing

1шт.

20

K913758

BUSHING,57.19mm ID x 61.38mm OD x 28.83mm L

- shaft

1шт.

21

K913772

BEARING HALF

BEARING - half

2шт.

22

K926385

GASKET

- rear axle housing

1шт.

23

238-5241

O-RING,0.139" Thk x 3.859" ID, -241, Cl 5, 75 Duro

1шт.

24

413-892

BOLT,Hex, 1/2" - 13 x 5-3/4", Gr 5

- hex, 1/2 NC x 5-3/4 inch

2шт.

25

K11518

WASHER

- lock

2шт.

26

K601322

BOLT

- 5/8 UNC x 13 inch, grade "V"

2шт.

27

K626874

WASHER

- 5/8 inch (16 mm) special

2шт.

28

K11516

WASHER

- lock, 5/8 inch

2шт.

29

425-1010

NUT,5/8"-11, G5

2шт.

30

211-1010

BALL,5/16" OD

- chrome alloy steel, 5/16 inch, grade 24

1шт.

31

K210238

SCREW

- air

1шт.

32

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

2шт.

33

K205743

CONNECTOR, ELEC

CONNECTOR - tube to ram cylinder

1шт.

34

K600404

BOLT

- 3/8 UNC x 1-1/2 inch

4шт.

35

492-11038

LOCK WASHER,3/8"

4шт.

36

K920826

O-RING

PLUG - 3/4 inch UNF, 3/4 inch UNF

1шт.

37

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

38

K619543

PLUG

- 1/2 inch UNF

1шт.

39

K15735

WASHER

- sealing, 1/2 inch (13 mm)

1шт.
