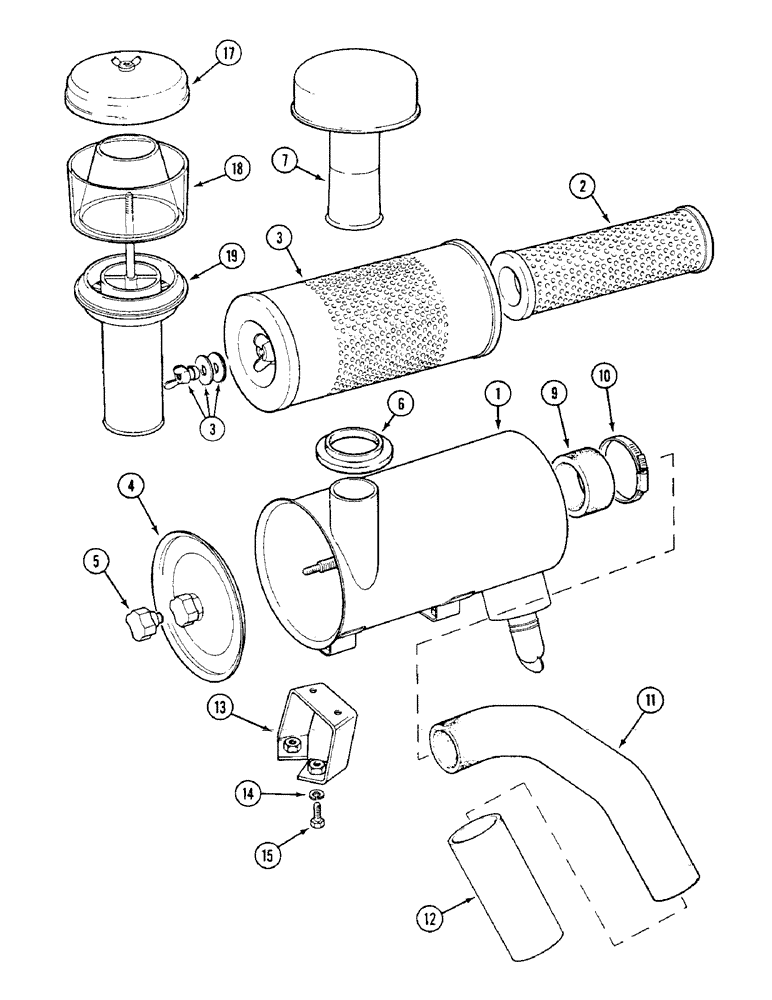

Запчасти Case IH 1294 (2-06) - AIR CLEANER (02) - ENGINE

1

K200296

CLEANER

AIR CLEANER - complete, Includes: Ref. 2 - 5

1шт.

1

K308826

CLEANER

AIR CLEANER - complete, Includes: Ref. 2 - 5

1шт.

2

K200380

FILTER, ELEMENT

ELEMENT - safety

1шт.

3

K200379

FILTER, ELEMENT

ELEMENT - main

1шт.

3a

K261051

NUT

ASSEMBLY - wing, with washers

1шт.

4

K260309

PLATE

ASSMEBLY - end, with nut, M10 (Coopers)

1шт.

4

K261073

PLATE

ASSEMBLY - end, with nut, M5 (Burgess)

1шт.

5

K965727

NUT

- hand

1шт.

6

K204811

SEAL

- dust flange

1шт.

7

K201312

CAP

- clenaer inlet

1шт.

9

K201315

CONNECTOR, ELEC

HOSE - 2-1/4 inch (57 mm) ID

1шт.

10

214-1444

HOSE CLAMP,58.6mm - 82.5mm

CLAMP, HOSE, , Adj. #44, 2.31/3.25 Type F Worm

4шт.

11

K201347

TUBE,15.5, 3.843" L

- 2-1/16 inch (53 mm) ID

1шт.

12

REF

INSTRUCTION

HOSE - tube to intake manifold (Without cab)

1шт.

Order K201349 and cut to length.

1шт.

12

K201349

HOSE

- tube to intake manifold

1шт.

13

K307818

SUPPORT

BRACKET - support, air cleaner

1шт.

14

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

8шт.

15

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

8шт.

17

K260902

COVER

- cleaner (Coopers)

1шт.

18

K260382

BOWL

- dust, 7-5/16 inch

1шт.

19

K260905

SLEEVE

- cleaner

1шт.

17

REF

INSTRUCTION

COVER - cleaner (Burgess), order K302217, Includes: knob

1шт.

K305983

KNOB

- M8

1шт.

18

K260909

BOWL

- dust, Burgess, 8 inch

1шт.

19

NSS

NOT SOLD SEPARAT

SLEEVE - order K302218

1шт.
