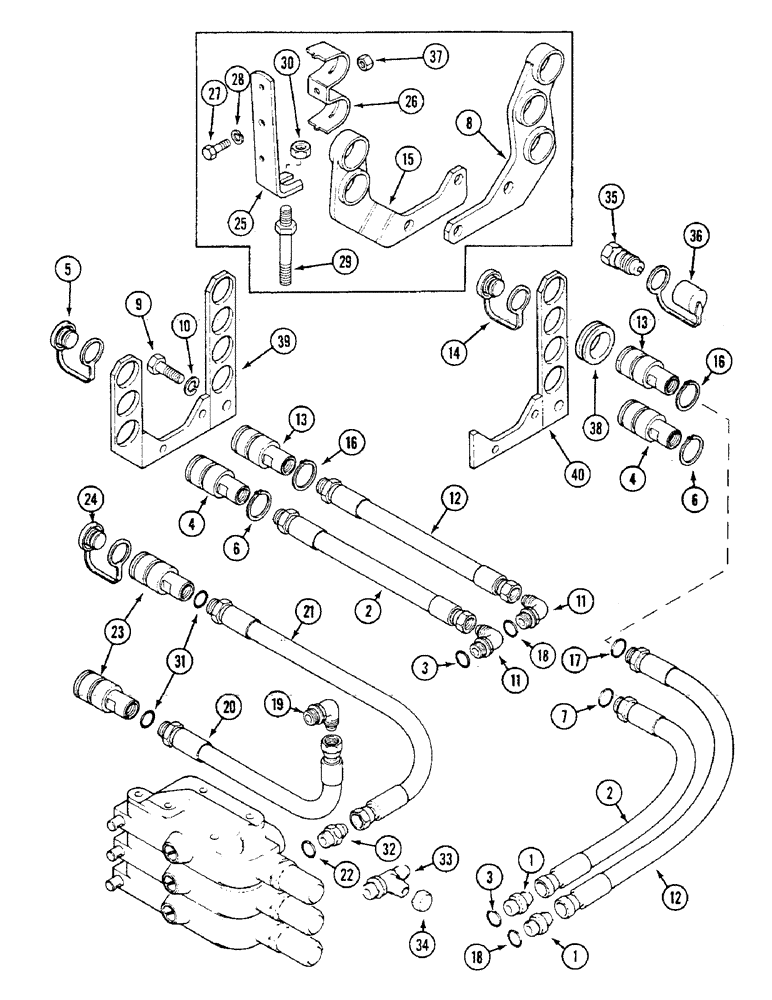

Запчасти Case IH 1294 (8-252) - REMOTE VALVE HOSES AND COUPLINGS (08) - HYDRAULICS

REF

INSTRUCTION

HOSES AND COUPLINGS - first valve (Part of UK6629 & UK6630), Includes: Ref. 1 - 10

1шт.

1

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss, 3/4 inch UNF

2шт.

2

K207572

HOSE

- flexible, 3/4 - 7/8 UNF x 24 inch

2шт.

3

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

4

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway, tractor half

2шт.

5

A137135

PLUG

- dust protective

2шт.

6

100-11150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

4шт.

7

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

8

K202578

BRACKET

- coupling support, LH, (Order K210350 & K206076)

1шт.

9

K603108

SCREW

BOLT - axle housing, 1/2 UNC x 1-1/2 inch

2шт.

10

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

2шт.

REF

INSTRUCTION

HOSES AND COUPLINGS - second valve (Part of UK6631, UK6632 & UK6782), Includes: Ref. 11 - 18

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

2шт.

12

K202605

HOSE

- flexible, 3/4 - 7/8 UNF x 15 inch

2шт.

13

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway, tractor half

2шт.

14

A137135

PLUG

- dust protective, dust, coupling

2шт.

15

K202430

BRACKET

- coupling support, right-hand (Order K210349 & K206076)

1шт.

16

100-11150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

4шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

18

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

REF

INSTRUCTION

HOSES AND COUPLINGS - third valve (Part of UK5809, UK5690 and UK6786), Includes: Ref. 19 - 27

1шт.

19

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

20

K202604

HOSE

- flexible, 3/4 - 7/8 UNF x 17-1/2 inch

1шт.

21

K207572

HOSE

- flexible, 3/4 - 7/8 UNF x 24 inch

1шт.

22

K623591

O-RING

- 5/8 inch (16 mm) ID

2шт.

23

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway, tractor half

2шт.

24

A137135

PLUG

- dust protective

2шт.

25

K204685

BRACKET

- coupling, (Order K210349 & K206076)

1шт.

26

K949616

CLIP

CLAMP - coupling

1шт.

27

88206

BOLT,Hex, 3/8" - 16 x 1", Gr 5

1шт.

28

K210349

BRACKET

- coupling support, two or more valves

1шт.

29

K210350

BRACKET

- coupling support, one valve

1шт.

30

425-108

NUT,1/2" - 13, Gr 5

NUT, , Hex 1/2"-13, G5

1шт.

31

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

10-1, 90 Duro, .755" ID x .097" Thk

2шт.

32

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4-16 inch flare x O-ring boss

2шт.

33

218-5242

TEE,3/4" - 16 Male JIC x 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 3/4-16 inch flare branch x flare x adj O-ring boss

2шт.

34

218-755

CAP,37 Degree, 3/4"-16

2шт.

35

K200646

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - quick release, implement half

1шт.

36

K200645

CAP

COVER - dust, implement coupling

1шт.

37

280136

NUT,3/8"-16, G8

1шт.

38

A149221

RETAINER

- coupling

1шт.
