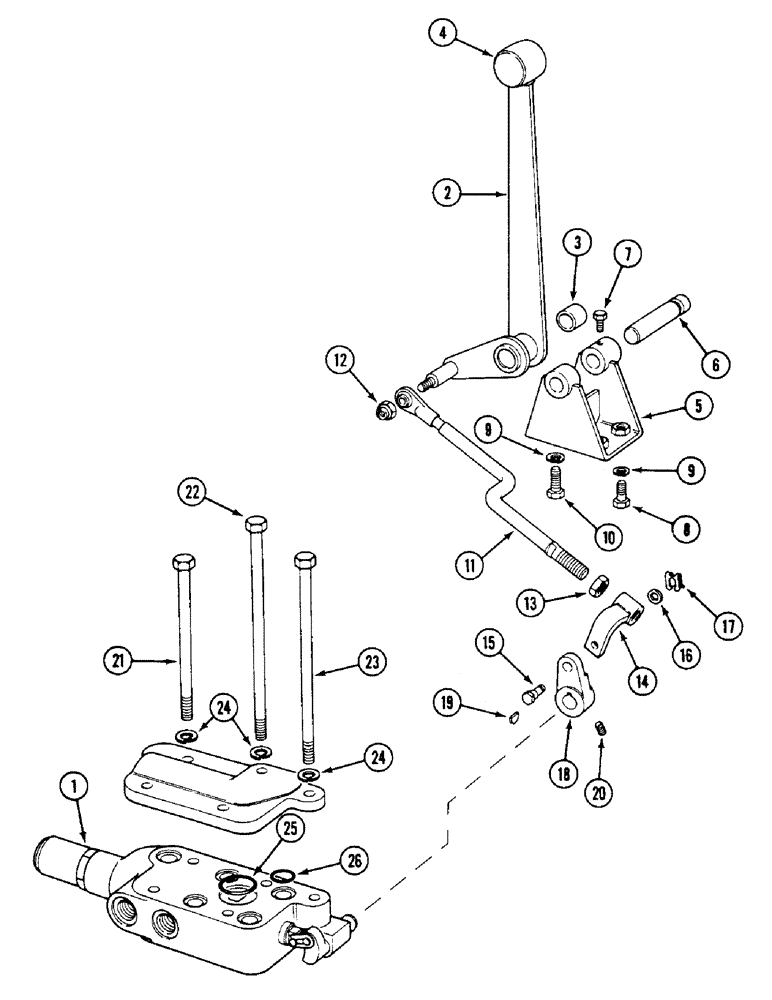

Запчасти Case IH 1294 (8-250) - THIRD REMOTE VALVE, TRACTORS WITH CAB (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ATTACHMENT - detented, See Figure 8-254

1шт.

1

REF

INSTRUCTION

VALVE ATTACHMENT - spring centered, See Figure 8-254

1шт.

UK5690

VALVE

CONTROL AND FITTINGS ATTACHMENT, Includes: Ref. 2 - 26

1шт.

2

K306132

LEVER

ASSEMBLY - control

1шт.

3

K655430

BUSHING

- lever, control lever

2шт.

4

K306268

KNOB

- control lever

1шт.

5

K306104

BRACKET

- control lever

1шт.

6

K306165

SHAFT

- lever

1шт.

7

K650803

BOLT,M6 - 1 x 12mm, Grade 8.8

SCREW - locating

1шт.

8

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

2шт.

9

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

3шт.

10

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

11

K307195

ROD

- third valve

1шт.

12

425-114

NUT,1/4"-28, G5

1шт.

13

280136

NUT,3/8"-16, G8

1шт.

14

K307172

BRACKET

END - rod, third valve

1шт.

15

K306319

PIN

-, Serial Range: rod-lever

1шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

17

K625039

CLIP

- retaining

1шт.

18

K306329

LEVER

- third valve

1шт.

19

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

20

28-56

BOLT,Hex, 5/16" - 24 x 3/8", Gr 8

- 5/16 UNF x 3/8 inch

1шт.

21

413-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

- hex, 3/8 NC x 6-1/2 inch

2шт.

22

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

- hex, 3/8 NC x 8 inch

1шт.

23

113-2253

BOLT,Hex, 3/8" - 16 x 7-3/4", Gr 5

- 3/8 UNC x 7-3/4 inch

2шт.

24

492-11038

LOCK WASHER,3/8"

5шт.

25

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) ID

1шт.

26

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

5шт.

REF

INSTRUCTION

HOSES AND COUPLINGS - (See page 8-253)

1шт.
