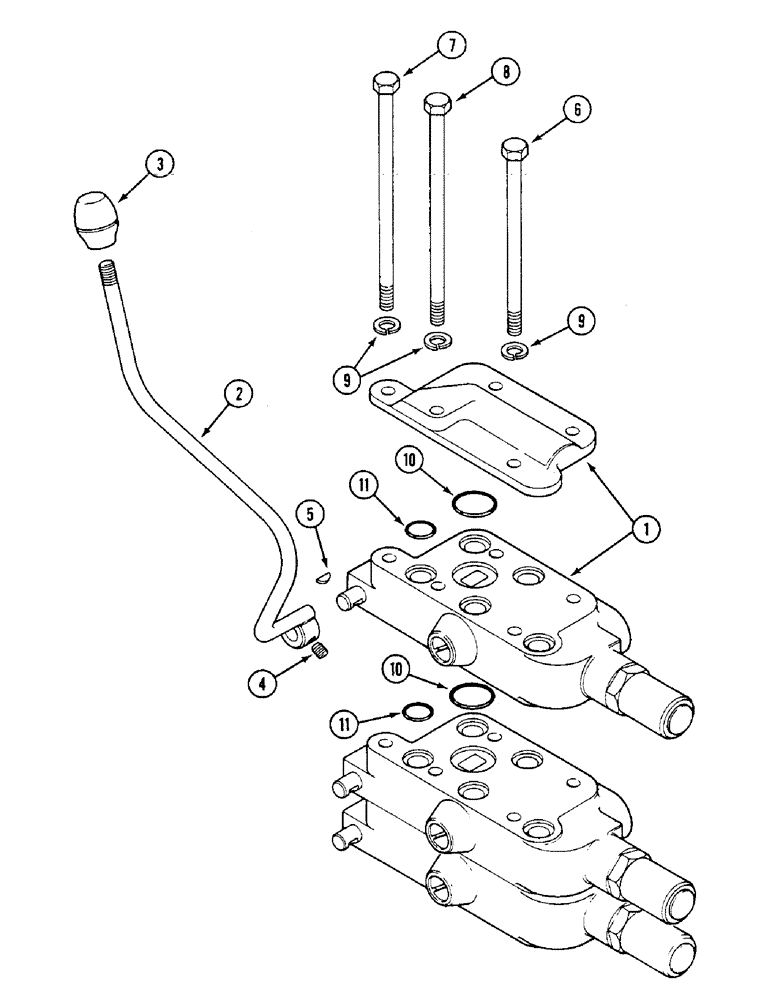

Запчасти Case IH 1294 (8-244) - THIRD REMOTE VALVE, TRACTORS WITHOUT CAB (08) - HYDRAULICS

REF

INSTRUCTION

VALVE ATTACHMENT - detented valve, Includes: Ref. 1

2шт.

1

K956421

VALVE

ASSEMBLY, See Figure 8-254

1шт.

REF

INSTRUCTION

VALVE ATTACHMENT - spring centered valve, Includes: Ref. 1

2шт.

1

K206438

VALVE

ASSEMBLY, See Figure 8-254

1шт.

UK5809

KIT

FITTINGS ATTACHMENT, Includes: Ref. 2 - 11

1шт.

2

K307923

LEVER ASSY.

LEVER - hand

1шт.

3

K950493

KNOB

- selector lever, hand lever

1шт.

4

28-56

BOLT,Hex, 5/16" - 24 x 3/8", Gr 8

SCREW - 5/16 UNF x 3/8 inch

1шт.

5

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

6

413-6104

BOLT,Hex, 3/8" - 16 x 6-1/2", Gr 5

- hex, 3/8 NC x 6-1/2 inch

2шт.

7

413-6128

BOLT,Hex, 3/8" - 16 x 8", Gr 5

- hex, 3/8 NC x 8 inch

1шт.

8

113-2253

BOLT,Hex, 3/8" - 16 x 7-3/4", Gr 5

- 3/8 UNC x 7-3/4 inch

2шт.

9

492-11038

LOCK WASHER,3/8"

6шт.

10

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) ID

1шт.

11

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

5шт.

REF

INSTRUCTION

HOSES AND COUPLINGS, See Figure 8-252

1шт.

REF

INSTRUCTION

ATTACHMENT - third remote detented in built pump (North America only) consists of valve assembly, controls, fittings, hose attachments. Does not include UK5811 forward tube connection on Figure 8-252.

1шт.
