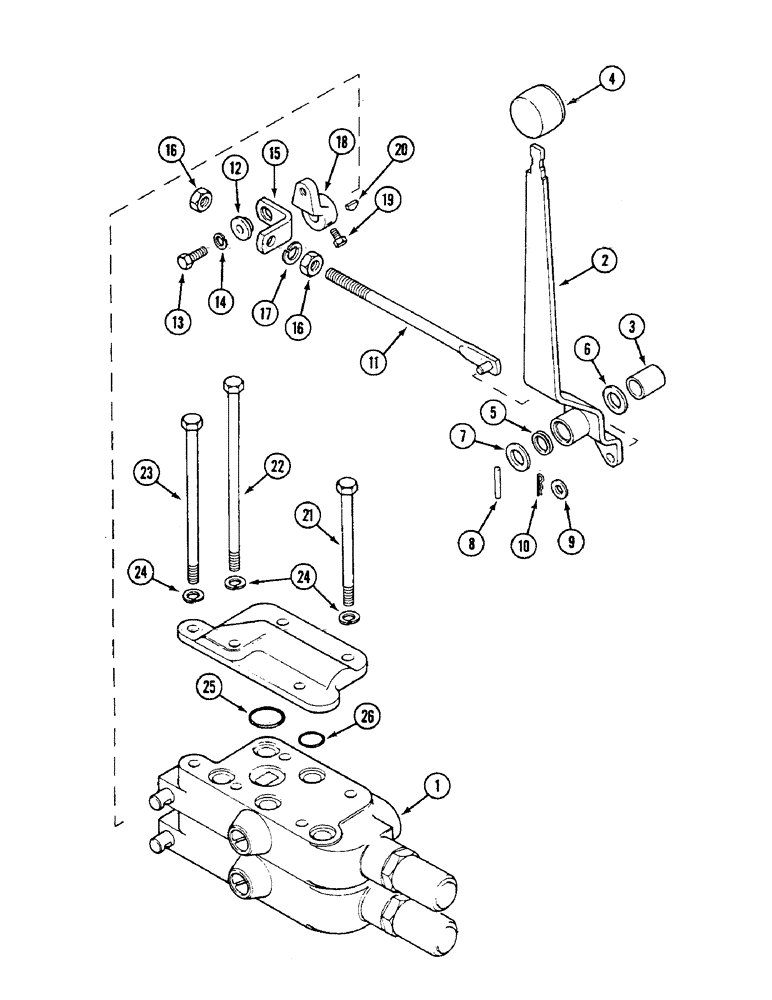

Запчасти Case IH 1294 (8-242) - SECOND REMOTE VALVE, TRACTORS WITHOUT CAB (08) - HYDRAULICS

1

REF

INSTRUCTION

VALVE ASSEMBLY - detented, See Figure 8-254

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - spring detented, See Figure 8-254

1шт.

UK6631

KIT

CONTROLS, FITTINGS AND HOSE, Includes: Ref. 2 - 26

1шт.

2

K306626

LEVER

- hand, second valve, Includes: Ref. 3

1шт.

3

K621377

BUSHING

- lever pivot

1шт.

4

K306268

KNOB

- control lever

1шт.

5

K628130

SEAL

RING - sealing

2шт.

6

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

1шт.

7

K655810

BUSHING

SPACER - shaft

2шт.

8

38-11420

LOCK PIN,7/32" x 1 1/4", Slotted

PIN - roll, 5 x 30 mm, shaft

1шт.

9

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

10

K950865

CLIP

- retaining

1шт.

11

K307805

ARM

LINK - second valve

1шт.

12

K307809

BUSHING

- link

1шт.

13

114-102

BOLT,Hex, 5/16" - 24 x 3/4", Gr 5

1шт.

14

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

15

K307808

BRACKET

- link

1шт.

16

825-1410

NUT,M10, Cl 8

2шт.

17

892-11010

LOCK WASHER,M10

1шт.

18

K306198

BUCKLE

LEVER - second valve

1шт.

19

28-56

BOLT,Hex, 5/16" - 24 x 3/8", Gr 8

SCREW - 5/16 UNF X 3/8 inch

1шт.

20

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

21

413-676

BOLT,Hex, 3/8" - 16 x 4-3/4", Gr 5

- hex, 3/8 NC x 4-3/4 inch

2шт.

22

K600514

BOLT

- 3/8 UNC x 6-1/4 inch

1шт.

23

K600513

BOLT

- 3/8 UNC x 6 inchm

2шт.

24

492-11038

LOCK WASHER,3/8"

5шт.

25

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) ID

2шт.

26

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

10шт.

REF

INSTRUCTION

HOSES AND COUPLINGS - (See page 8-253)

1шт.

REF

INSTRUCTION

HOUSING - clutch, second remote detented in built pump (North America only) consists of valve assembly, controls, fittings, hose attachments. Does not include UK5811 forward tube connection on page 8-253.

1шт.
