Запчасти Case IH 1294 (8-240) - FIRST REMOTE VALVE, TRACTORS WITHOUT CAB (08) - HYDRAULICS

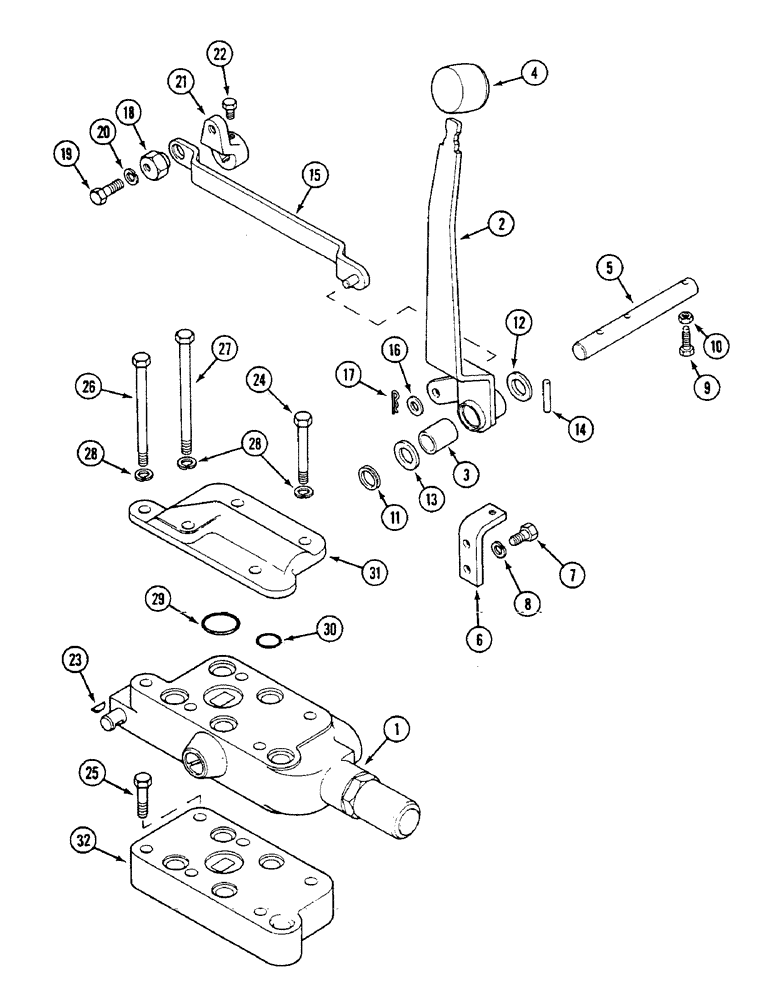

Схема запчастей Case IH 1294 - (8-240) - FIRST REMOTE VALVE, TRACTORS WITHOUT CAB (08) - HYDRAULICS
11
5
31
10
17
2
32
3
13
20
27
28
7
9
15
12
25
23
26
18
28
29
8
22
6
1
14
24
30
4
16
18
21

Артикул

Название

Примечание

Количество

1

REF

INSTRUCTION

VALVE ASSEMBLY - detented, See Figure 8-254

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - spring detented, See Figure 8-254

1шт.

1

K204014

VALVE

ASSEMBLY - detented with float

1шт.

UK6629

KIT

CONTROLS, FITTINGS, AND HOSE, Includes: Ref. 2 - 32

1шт.

2

K307912

LEVER

- hand, first valve, Includes: Ref. 3

1шт.

3

K621377

BUSHING

- lever pivot

1шт.

4

K306268

KNOB

- control lever

1шт.

5

K306203

SHAFT

- hand lever

1шт.

6

K306714

PLATE

- hand lever shaft

1шт.

7

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

8

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

9

K306715

SCREW,M6 x 1 x 1mm, Gr 8.8

- shaft retaining, M6

1шт.

10

825-13412

NUT,M12 x 1.25, Cl 8

- cable, M12

1шт.

11

K628130

SEAL

RING - sealing

2шт.

12

895-11016

WASHER,17.5mm ID x 30mm OD x 3mm Thk

Flat M16 x 30 x 3

1шт.

13

K655810

BUSHING

SPACER - shaft

2шт.

14

38-11420

LOCK PIN,7/32" x 1 1/4", Slotted

PIN - roll, 5 X 30 mm

1шт.

15

K307934

LINK

- first valve

1шт.

16

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

17

K950865

CLIP

- retaining

1шт.

18

K306196

BUSHING

- eccentric

1шт.

19

K612804

SCREW

BOLT - set, 5/8 UNF x 7/8 inch

1шт.

20

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

21

K306197

LEVER

- first valve

1шт.

22

28-56

BOLT,Hex, 5/16" - 24 x 3/8", Gr 8

SCREW - 5/16 UNF x 3/8 inch

1шт.

23

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

(No. 404) #3, 1/8" x 1/2"

1шт.

24

413-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

2шт.

25

K600510

BOLT

- 3/8 UNC x 2 inch

1шт.

26

K600511

BOLT

- 3/8 UNC x 4-1/4 inch

2шт.

27

413-672

BOLT,Hex, 3/8" - 16 x 4-1/2", Gr 5

- hex, 3/8 NC x 4-1/2 inch

1шт.

28

492-11038

LOCK WASHER,3/8"

6шт.

29

K623588

O-RING,2.69mm Thk x 29.97mm ID, 75 Duro

- 1-3/16 inch (30 mm) ID

1шт.

30

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

5шт.

31

K919242

COVER

PLATE - cover

1шт.

32

K203509

BASE

PLATE - base

1шт.

REF

INSTRUCTION

HOSES AND COUPLINGS, See Figure 8-252

1шт.

Выбрано товаров: 36
