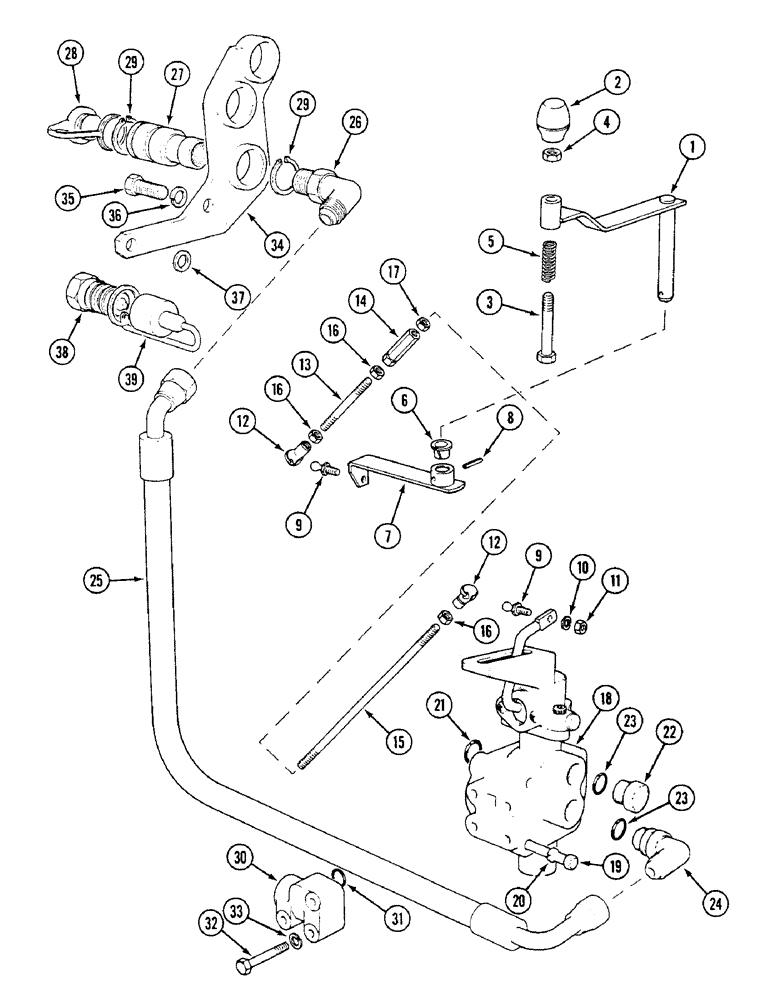

Запчасти Case IH 1294 (8-236) - THREE-WAY VALVE ATTACHMENT, TRACTORS WITH CAB, NOT NORTH AMERICA (08) - HYDRAULICS

UK5663

VALVE

CONTROLS UNIT - three-way valve, Includes: Ref. 1 - 17

1шт.

1

K307204

LEVER

- hand

1шт.

2

K950493

KNOB

- selector lever

1шт.

3

K600477

BOLT

- 3/8 UNC x 2-1/2 inch

1шт.

4

425-106

NUT,3/8"-16, Cl 5

1шт.

5

K625059

SPRING

-

1шт.

6

K621310

BUSHING

- cab floor

2шт.

7

K306494

LEVER

-

1шт.

8

138-1816

LOCK PIN,1/8" x 1", Slotted, Stainless

Pin, 1/8" x 1, Slotted, Stainless

1шт.

9

K621904

BALL JOINT

PIVOT END - ball

2шт.

10

K626552

WASHER

- lock, 1/4 inch

2шт.

11

K617030

NUT

- 1/4 inch UNF

2шт.

12

K621903

BALL JOINT

SOCKET END - 1/4 inch UNF

2шт.

13

K205698

ROD

- 1/4 UNF x 3-1/2 inch

1шт.

14

K949065

SLEEVE

- adjusting, 1/4 inch UNF

1шт.

15

K207243

ROD

- 1/4 INF x 5 inch (127 mm)

1шт.

16

K617030

NUT

- 1/4 inch UNF

3шт.

17

K617593

NUT

- 1/4 inch UNF

1шт.

UK5660

VALVE

THREE-WAY VALVE ATTACHMENT, Includes: Ref. 18 - 33

1шт.

18

REF

INSTRUCTION

VALVE ASSEMBLY, See Figure 8-238

1шт.

19

K600416

BOLT

- 3/8 UNC x 3 inch

4шт.

20

492-11038

LOCK WASHER,3/8"

4шт.

21

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

22

K920826

O-RING

PLUG - 3/4 inch UNF

1шт.

23

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

24

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

25

K202579

HOSE

TUBE - flexible, 3/4 - 7/8 UNF x 25-1/4 inch (640 mm)

1шт.

26

K622113

FITTING

ELBOW - 7/8 inch UNF x 90 degrees

1шт.

27

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway

1шт.

28

A137135

PLUG

- dust protective

1шт.

29

100-11150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

2шт.

30

K919614

ADAPTER

-, Serial Range: tube-valve

1шт.

31

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

32

K600209

BOLT

- 5/16 UNC x 2 inch

3шт.

33

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

UK4345

BREAKER POINTS

BRACKET ASSEMBLY - mounting, Includes: Ref. 34 - 37

1шт.

34

K202578

BRACKET

- coupling support

1шт.

35

K603108

SCREW

BOLT - axle housing, 1/2 UNC x 1-1/2 inch

2шт.

36

K19484

LOCK WASHER

WASHER - lock, 1/2 inch

2шт.

37

K626686

WASHER

- flat, 1/2 inch (13 mm)

2шт.

38

K200646

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - quick release, implement half

1шт.

39

K200645

CAP

COVER - dust, implement coupling

1шт.
