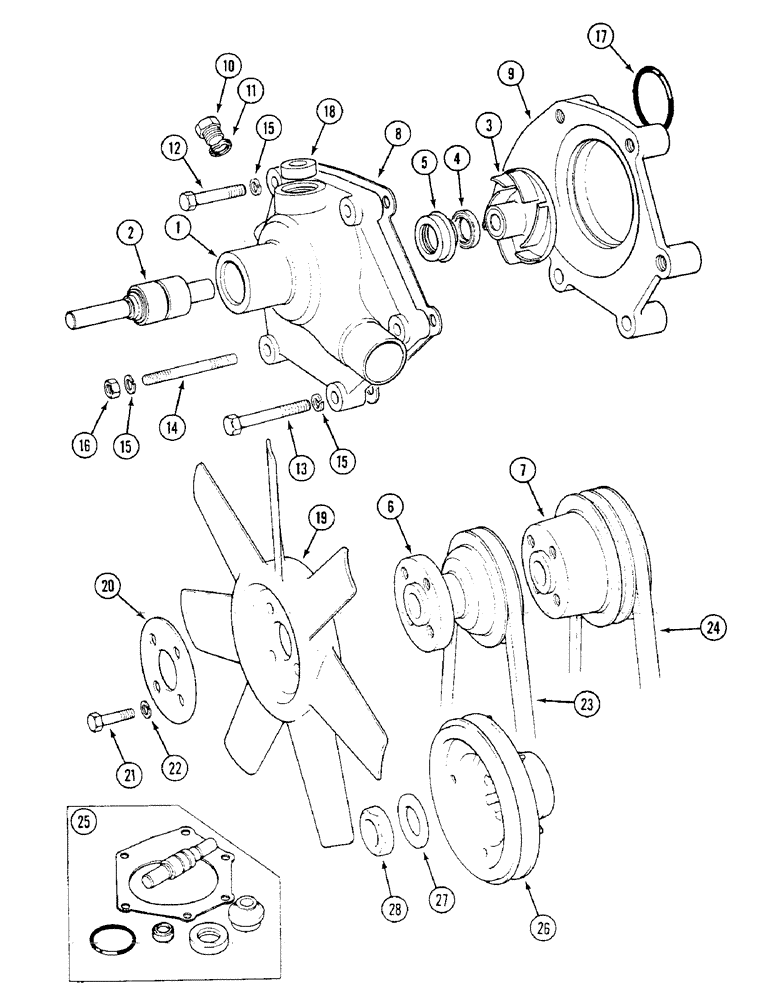

Запчасти Case IH 1294 (2-04) - WATER PUMP AND FAN (02) - ENGINE

K201750

PUMP, WATER

PUMP ASSEMBLY - water (Without air conditioning), Includes: Ref. 1 - 7

1шт.

K207434

PUMP

ASSEMBLY - water (With air conditioning), Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

BODY - pump (Order K207434)

1шт.

2

K260202

GEAR

SHAFT AND BEARING - pump

1шт.

Part of water pump repair kit.

1шт.

3

K200687

IMPELLER

- water

1шт.

4

K200821

RING

- impeller

1шт.

Part of water pump repair kit.

1шт.

5

K200823

GLAND

SEAL - gland

1шт.

6

K200824

PULLEY

PULEY - pump

1шт.

7

K207435

PULLEY

- pump

1шт.

8

K942844

GASKET

- pump to impeller housing

1шт.

Part of water pump repair kit.

1шт.

9

K952667

HOUSING

- clutch

1шт.

10

K623829

PLUG

- 3/8 inch BSP

2шт.

11

K19500

GASKET

WASHER - sealing, 5/8 inch (16 mm)

2шт.

12

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- hex, 5/16 NC x 1-1/4 inch

2шт.

13

K600141

BOLT

STUD - 5/16 UNC x 1-11/16 inch

4шт.

14

K600141

BOLT

STUD - 5/16 UNC x 1-11/16 inch

1шт.

14

K608173

STUD

- 5/16 UNC x 3-1/4 inch

1шт.

15

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

6шт.

16

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

17

238-6223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 6, 90 Duro

- 1-5/8 x 1/8 inch

1шт.

Part of water pump repair kit.

1шт.

18

K915330

SEALING RING

SEAL - rubber, pump to cylinder head

1шт.

Part of water pump repair kit.

1шт.

19

K921359

FAN

- seven blade

1шт.

20

K921361

SHIM

PLATE - retaining

1шт.

21

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

4шт.

22

492-11038

LOCK WASHER,3/8"

4шт.

23

K68073

V-BELT

Drive, Fan and alternator

1шт.

24

K308448

V-BELT,13.00 mm W x 1232.00 mm L

V-BELT , Drive, Fan and Alternator 13.00 mm W x 1232.00 mm L

1шт.

25

REF

INSTRUCTION

REPAIR KIT - water pump (Includes Ref. 2, 4, 5, 8, 17, and 18)

1шт.

26

K944348

PULLEY

- crankshaft

1шт.

26

K944349

PULLEY

- crankshaft

1шт.

26

K207329

PULLEY

- crankshaft

1шт.

27

K626403

WASHER

- special, 1 inch (25 mm) special

1шт.

28

K623300

NUT

- crankshaft, 1 inch special

1шт.
