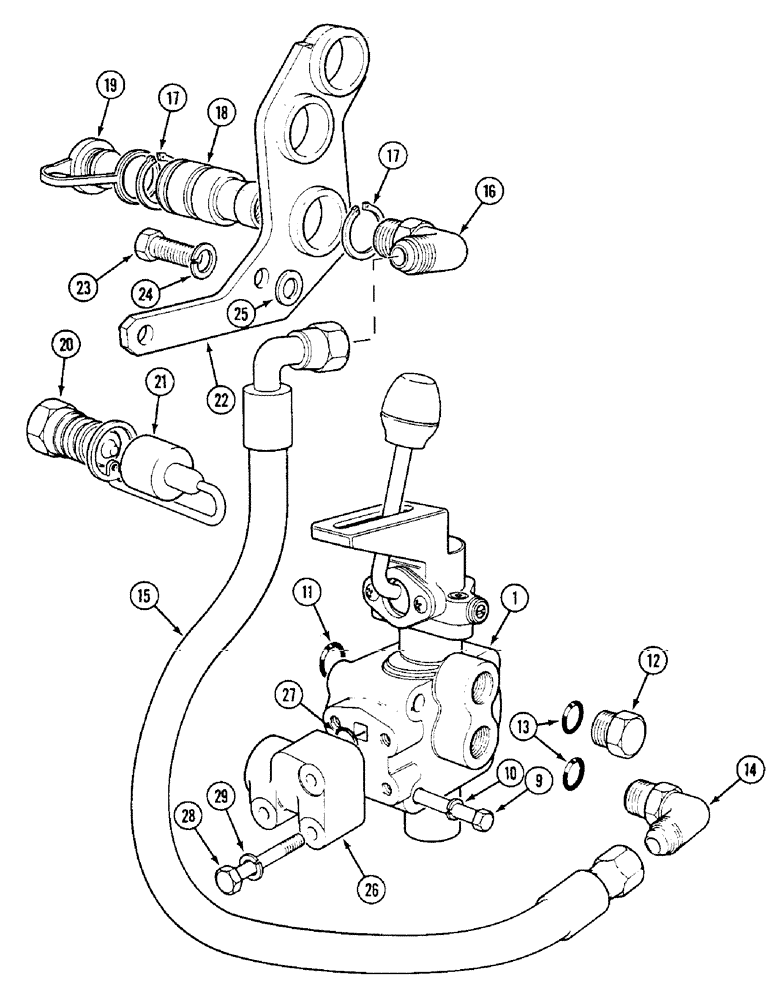

Запчасти Case IH 1294 (8-234) - THREE-WAY VALVE ATTACHMENT, TRACTORS WITHOUT CAB, NOT NORTH AMERICA (08) - HYDRAULICS

UK5788

VALVE

THREE-WAY VALVE ATTACHMENT, Includes: Ref. 1 - 19

1шт.

1

REF

INSTRUCTION

VALVE ASSEMBLY - three-way, See Figure 8-238

1шт.

9

K600416

BOLT

- 3/8 UNC x 3 inch

4шт.

10

492-11038

LOCK WASHER,3/8"

4шт.

11

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

1шт.

12

K948415

PLUG

- 3/4 inch UNF

1шт.

13

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

14

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

- 90 degree, 3/4-16 inch flare x adj O-ring boss

1шт.

15

K202579

HOSE

TUBE - flexible, 3/4 - 7/8 UNF x 25-1/4 inch (640 mm)

1шт.

16

K622113

FITTING

ELBOW - 7/8 inch UNF x 90 degrees

1шт.

17

100-11150

SNAP RING,#150, Ext

Ring, Snap, #150, Ext

2шт.

18

A177478

COUPLING, QUICK, FEM

COUPLING - female, breakaway

1шт.

19

A137135

PLUG

- dust protective

1шт.

20

K200646

COUPLING, BREAK AWAY

COUPLING ASSEMBLY - quick release, implement half, Includes: Ref. 21

1шт.

21

K200645

CAP

COVER - dust, implement coupling

1шт.

22

K202578

BRACKET

- coupling support

1шт.

23

432-820

COTTER PIN,1/8" x 1 1/4"

PIN, SPLIT (COTTER), 1/8" x 1-1/4"

2шт.

24

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

25

K626686

WASHER

- flat, 1/2 inch (13 mm)

2шт.

26

K919614

ADAPTER

-, Serial Range: tube-valve

1шт.

27

238-6115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 6, 90 Duro

1шт.

28

K600209

BOLT

- 5/16 UNC x 2 inch

3шт.

29

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.
