Запчасти Case IH 1294 (8-230) - CONTROL LEVER AND CONSOLE, TRACTORS WITHOUT CAB (08) - HYDRAULICS

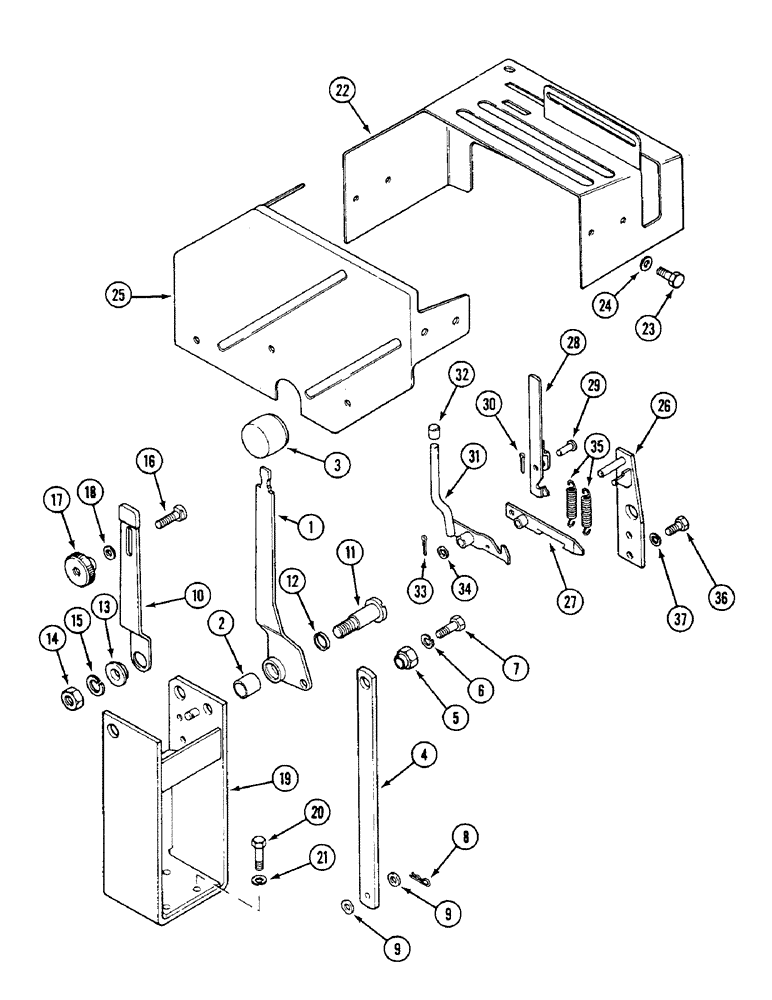

Схема запчастей Case IH 1294 - (8-230) - CONTROL LEVER AND CONSOLE, TRACTORS WITHOUT CAB (08) - HYDRAULICS
20
1
36
8
23
11
37
19
22
12
9
27
30
16
21
15
32
33
25
24
14
5
6
26
17
9
28
3
31
13
4
7
34
18
2
35
10
29

Артикул

Название

Примечание

Количество

1

K306627

LEVER

- hydraulic control, Includes: Ref. 2

1шт.

2

K621377

BUSHING

- lever pivot

1шт.

3

K306268

KNOB

- control lever

1шт.

4

K306195

LINK

ROD - connecting

1шт.

5

K306196

BUSHING

- eccentric

1шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

1шт.

7

K612804

SCREW

BOLT - set, 5/8 UNF x 7/8 inch

1шт.

8

K950865

CLIP

- retaining

1шт.

9

K626662

WASHER

- 1/4 inch

2шт.

10

K306190

GUIDE

LEVER - guide

1шт.

11

K305521

PIN

- pivot, M, 12

1шт.

12

K628130

SEAL

RING - sealing

2шт.

13

K305522

BUSHING

SPACER - pivot

1шт.

14

825-1112

NUT,M12, Cl 8

- hex, 12 mm - 1.75

1шт.

15

K651850

SPRING

WASHER - lock, 12 mm

1шт.

16

K909577

STUD

- 5/16 inch UNF

1шт.

17

K921826

SERRATED NUT

- hand, 5/16 UNF

1шт.

18

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

19

K306181

SUPPORT

BRACKET - lever support

1шт.

20

K602806

BOLT

- 5/16 UNC x 1-1/8 inch

3шт.

21

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

3шт.

22

K307331

PANEL

CONSOLE - hydraulic controls

1шт.

23

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

6шт.

24

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

6шт.

25

K307329

SUPPORT

BRACKET - console support

1шт.

26

K306185

SUPPORT

BRACKET - lock support

1шт.

27

K306244

LATCH

LOCK - hold

1шт.

28

K306248

LATCH

LEVER - hand

1шт.

29

K658509

PIN

- clevis

1шт.

30

632-551

COTTER PIN,M1.6 x 10

PIN - cotter

1шт.

31

K306228

LATCH

LOCK - full lift

1шт.

32

K306699

KNOB

- lock

1шт.

33

632-554

PIN - cotter M1.6 x 16

1шт.

34

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

35

K624938

SPRING

- return

2шт.

36

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

37

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

Выбрано товаров: 37
