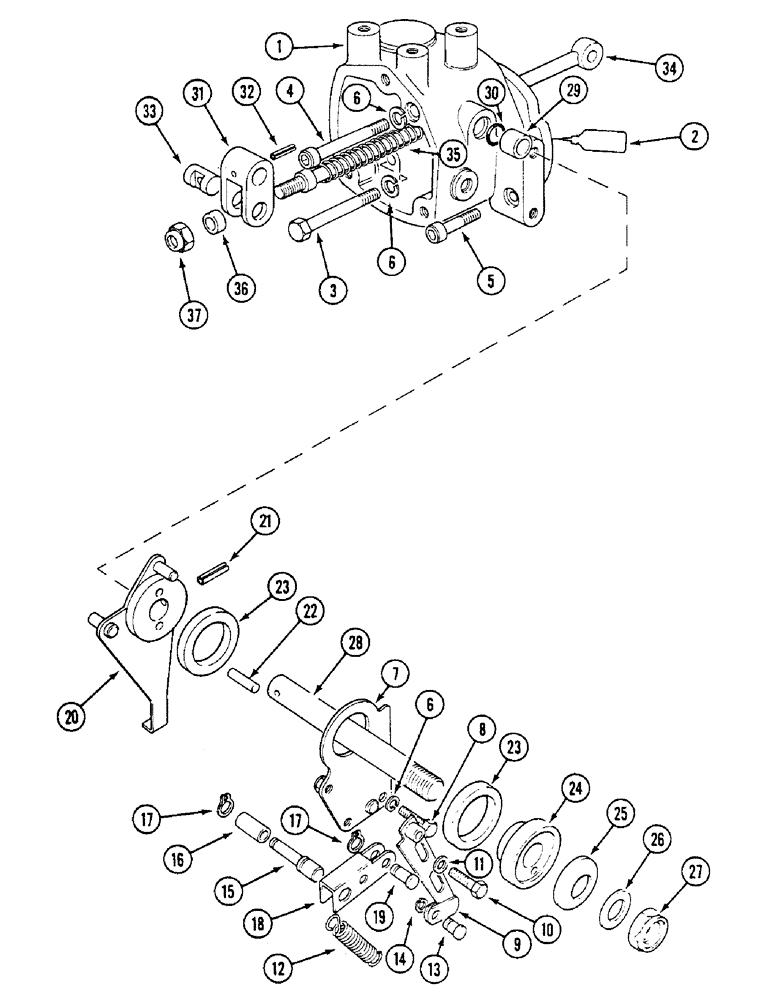

Запчасти Case IH 1294 (8-224) - CONTROL HOUSING (08) - HYDRAULICS

1

K203118

LEVER

HOUSING - control

1шт.

2

REF

INSTRUCTION

SILMATE RTV - gasket replacement (See your Case dealer)

1шт.

3

K600217

BOLT

- 5/16 UNC x 3 inch

1шт.

4

61-33148

HEX SOC SCREW,5/16"-18 x 3"

SCREW, Hex Soc Hd, 5/16"-18 x 3"

1шт.

5

61-524

HEX SOC SCREW,5/16"-18 x 1 1/2"

BOLT - hex socket head, 5/16 NC x 1-1/2 inch

1шт.

6

K19481

SPRING WASHER

WASHER - lock, 5/16 inch

7шт.

7

K950555

BRACKET

PLATE - friction

1шт.

8

K602846

SCREW,5/16" - 18 x 5/8", Gr S

BOLT - 5/16 UNC x 5/8 inch

2шт.

9

K949541

SPRING

CARRIER - spring

1шт.

10

K602746

SCREW,1/4" - 20 x 1/2"

BOLT - 1/4 UNC x 1/2 inch

2шт.

11

K626662

WASHER

- 1/4 inch

4шт.

12

K950773

SPRING

- tension

1шт.

13

K949554

PIN

- clevis, 5/16 x 1/2 inch

1шт.

14

K621482

RING, SNAP

RING - retaining, 5/16 inch (8 mm) external

1шт.

15

K949543

PIN

- roller

1шт.

16

K949544

ROLLER

- pin

1шт.

17

100-1125

SNAP RING,#25, Ext

Ring, Snap, #25, Ext

3шт.

18

K949542

SPRING

LEVER - return, spring

1шт.

19

K949545

PIN

- pivot, 1/4 x 3/4 inch

1шт.

20

K202811

LEVER

- friction

1шт.

21

38-11020

LOCK PIN,5/32" x 1 1/4", Slotted

Pin, 5/32" x 1 1/4", Slotted

2шт.

22

37-1316

DOWEL,3/16" x 1"

PIN - dowel, hardened, 3/16 x 1 inch

2шт.

23

K262715

WASHER

- friction

2шт.

24

K950864

PLATE

- friction

1шт.

25

K626740

WASHER

- Belleville, 5/8 inch

2шт.

26

K626686

WASHER

- flat, 1/2 inch (13 mm)

1шт.

27

K617273

NUT

- self-locking, 1/2 inch UNF

2шт.

28

REF

INSTRUCTION

SHAFT - friction lever, (Order 1 x K949266 and 2 x 425-158)

1шт.

29

K627068

BUSHING

SLEEVE - plastic

1шт.

30

K623424

RING

- sealing, 1/2 inch (13 mm) ID

1шт.

31

K909584

FORK

- shifting

1шт.

32

38-31016

PIN,5/32" x 1", Coiled

1шт.

33

K903370

PIN

- rod

1шт.

34

K909585

ROD

- connecting

1шт.

35

K625161

SPRING

- return

1шт.

36

K903367

COLLAR

- rod

2шт.

37

K964098

NUT

- self-locking, 5/16 inch UNC

1шт.
