Запчасти Case IH 1294 (8-216) - HYDRAULIC TUBES - REAR AXLE (08) - HYDRAULICS

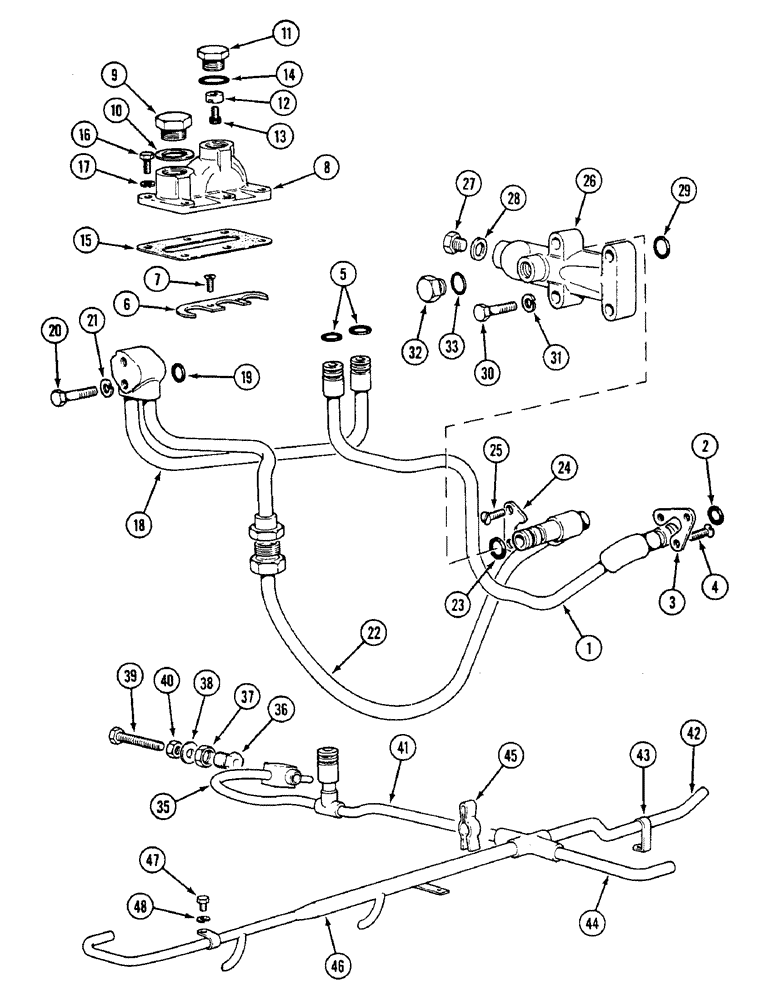

Схема запчастей Case IH 1294 - (8-216) - HYDRAULIC TUBES - REAR AXLE (08) - HYDRAULICS
42
43
6
17
2
18
36
19
21
7
20
46
32
33
8
48
35
10
47
9
39
23
16
31
24
27
25
15
3
26
14
37
38
5
11
44
45
1
12
28
29
30
40
13
22
41
4

Артикул

Название

Примечание

Количество

1

K952172

PIPE,11.281, 5.687" L

TUBE - pump outlet

1шт.

2

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

3

K89170

SHIM

PLATE - clamping

1шт.

4

K604094

SCREW

- 1/4 UNC X 5/8 inch

3шт.

5

K625405

O-RING,0.549" ID x 0.103" Width

- 9/16 inch (14 mm) ID

3шт.

6

K915344

WASHER

PLATE - locating

1шт.

7

K604094

SCREW

- 1/4 UNC X 5/8 inch

2шт.

8

K917127

CONNECTOR, ELEC

PLATE - connector, rear axle housing

1шт.

9

K619528

PLUG

- oil return port, 7/8 inch UNF

1шт.

10

K30085

GASKET

WASHER - sealing, 7/8 inch (22 mm)

1шт.

K947236

PLUG

ASSEMBLY - magnetic, Includes: Ref. 11 - 13

1шт.

11

NSS

NOT SOLD SEPARAT

PLUG - 3/4 inch UNF, (Order K947236)

1шт.

12

K946949

MAGNET

- plug

1шт.

13

K19391

SCREW

- 4BA x 1/2 inch

1шт.

14

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

15

K917387

GASKET

- plate

1шт.

16

K600403

BOLT

- 3/8 UNC x 1-3/8 inch

4шт.

17

492-11038

LOCK WASHER,3/8"

4шт.

18

K952171

PIPE,6.312" L

TUBE - control valve

1шт.

19

K625408

O-RING

- 7/16 inch (11 mm) ID

2шт.

20

K600405

BOLT

- 3/8 UNC x 1-5/8 inch

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

K952173

PIPE,15.875, 11.062" L

TUBE - union to ram cylinder

1шт.

23

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

2шт.

24

K910105

WASHER

PLATE - clamping

1шт.

25

K604094

SCREW

- 1/4 UNC X 5/8 inch

2шт.

26

K205743

CONNECTOR, ELEC

CONNECTOR - tube to ram cylinder

1шт.

27

K619543

PLUG

- 1/2 inch UNF

1шт.

28

K15735

WASHER

- sealing, 1/2 inch (13 mm)

1шт.

29

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

30

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

4шт.

31

492-11038

LOCK WASHER,3/8"

4шт.

32

K920826

O-RING

PLUG - 3/4 inch UNF

1шт.

33

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

35

K915339

TUBE

- lubrication, Serial Range: valve-tee

1шт.

36

K912269

BUSHING

- threaded, axle housing, 1/2 - 5/16 inch UNC

1шт.

37

425-148

JAM NUT,Jam, 1/2"-13, G5

- hex, jam, 1/2 inch NC

1шт.

38

K626577

WASHER

- sealing, 1/2 inch (13 mm)

1шт.

39

K602816

SCREW

BOLT - 5/16 UNC x 2-3/8 inch

1шт.

40

K607081

LOCK NUT

NUT - lock, 5/16 inch UNC

1шт.

41

K915337

PIPE

TUBE - valve to cross piece

1шт.

42

K913783

PIPE

TUBE - lubrication, multi-speed PTO

1шт.

43

K621660

CLIP

- tube

1шт.

44

K913785

PIPE,0.5" OD

TUBE - lubrication, ram cylinder

1шт.

45

K625009

SPRING

CLIP - retaining, tube to axle housing

1шт.

46

K929551

PIPE,18.937, 4" L

TUBE - lubrication, gearbox

1шт.

47

413-48

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

- hex, 1/4 NC x 1/2 inch

1шт.

48

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

Выбрано товаров: 48
