Запчасти Case IH 1294 (2-02) - RADIATOR AND BAFFLES (02) - ENGINE

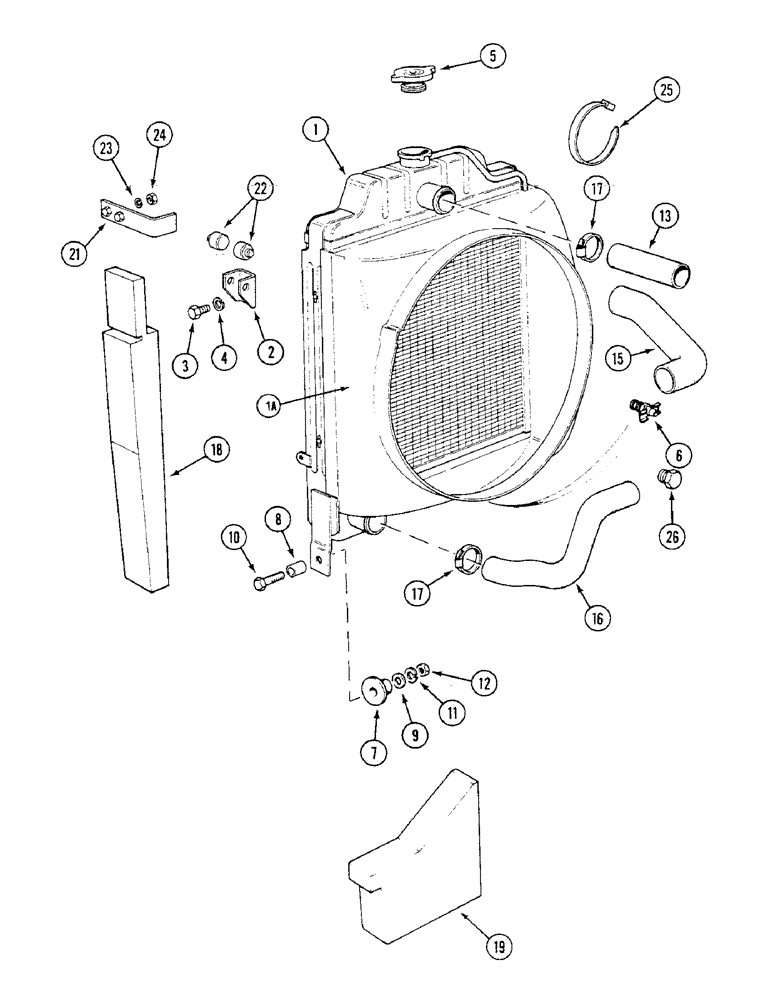

Схема запчастей Case IH 1294 - (2-02) - RADIATOR AND BAFFLES (02) - ENGINE
19
8
12
13
2
7
5
10
17
15
22
11
9
26
3
18
23
24
11
1a
6
1
16
25
21
4

Артикул

Название

Примечание

Количество

1

K300106

RADIATOR

- standard, Includes: Ref. 1A

1шт.

1

K308967

RADIATOR

- tropical/air conditioning, Includes: Ref. 1A

1шт.

1a

K262206

FAN

COWL - radiator, (steel)

1шт.

2

K308969

BRACKET

- tropical radiator

2шт.

3

614-8010

BOLT,Hex, M8 x 1.25 x 10mm, Cl 8.8, Full Thd

2шт.

4

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

5

K956638

CAP

- filler, 10 PSI (69 kPa)

2шт.

6

K622060

PLUG, DRAIN

VALVE - drain, 1/4 inch BSP

1шт.

7

K200734

MOUNTING PARTS

BUSHING - rubber

2шт.

8

K627321

BUSHING

SPACER - mounting

2шт.

9

K88751

WASHER

- 3/8 inch special

2шт.

10

413-632

BOLT,Hex, 3/8" - 16 x 2", Gr 5

- hex, 3/8 NC x 2 inch

2шт.

11

492-11038

LOCK WASHER,3/8"

2шт.

12

425-106

NUT,3/8"-16, Cl 5

2шт.

13

K200730

RADIATOR HOSE,1.50" ID x 6.00", SAE 20R4 Class SC Or SAE 20R4 Class D1

Inlet, Standard radiator 1.50" ID x 6.00", SAE 20R4 Class SC Or SAE 20R4 Class D1

1шт.

15

K207328

RADIATOR HOSE,1.50" ID x 7.63", SAE 20R4

Inlet 1.50" ID x 7.63", SAE 20R4

1шт.

16

K201976

RADIATOR HOSE,1.50" ID x 7.31", SAE J20 R4 Class D1

Outlet 1.50" ID x 7.31", SAE J20 R4 Class D1

1шт.

17

214-1428

HOSE CLAMP,#28, 1.31" - 2.25", Type F Worm

CLAMP, HOSE, , Adjustable #28, 1.31/2.25 Type F Worm

4шт.

18

K307938

BAFFLE

-, Serial Range: radiator-hood

2шт.

19

K307948

BAFFLE

- radiator to main frame

2шт.

21

K308526

BRACKET

- hood support frame, tropical radiator

2шт.

22

K302961

RUBBER

BLOCK - rubber

4шт.

23

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

24

825-1408

NUT,M8, Cl 8

4шт.

25

K628387

STRAP

TIE - cable to air cleaner

1шт.

26

K19531

PIN

PLUG - drain 1/4 inch, BSP alternative, early tractors, 3/32 x 1-1/4 inch

1шт.

Выбрано товаров: 26
